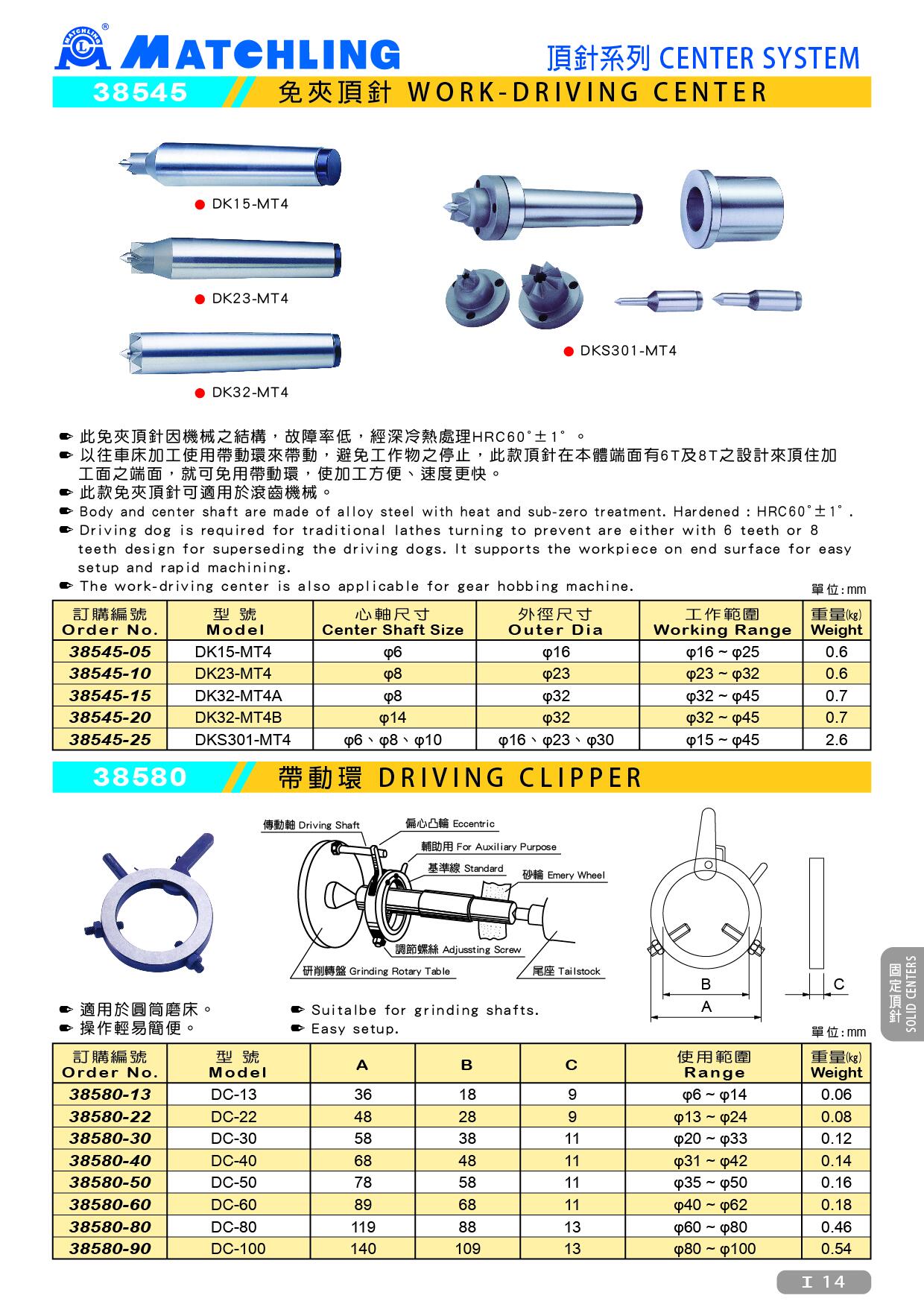

38545 WORK-DRIVING CENTER
● Body and center shaft are made of alloy steel with heat and sub-zero treatment. Hardened : HRC60˚±1˚ .
● Driving dog is required for traditional lathes turning to prevent are either with 6 teeth or 8 teeth design for superseding the driving dogs. It supports the workpiece on end surface for easy setup and rapid machining.
● The work-driving center is also applicable for gear hobbing machine.
unit：mm
| Order No. | Model | Center Shaft Size | Outer Dia | Working Range | Weight (kg) |
| 38545-05 | DK15-MT4 | φ6 | φ16 | φ16 ~ φ25 | 0.6 |
| 38545-10 | DK23-MT4 | φ8 | φ23 | φ23 ~φ32 | 0.6 |
| 38545-15 | DK32-MT4A | φ8 | φ32 | φ32 ~ φ45 | 0.7 |
| 38545-20 | DK32-MT4B | φ14 | φ32 | φ32 ~ φ45 | 0.7 |
| 38545-25 | DKS301-MT4 | φ6、 φ8、 φ10 | φ16、 φ23、 φ30 | φ15 ~ φ45 | 2.6 |
