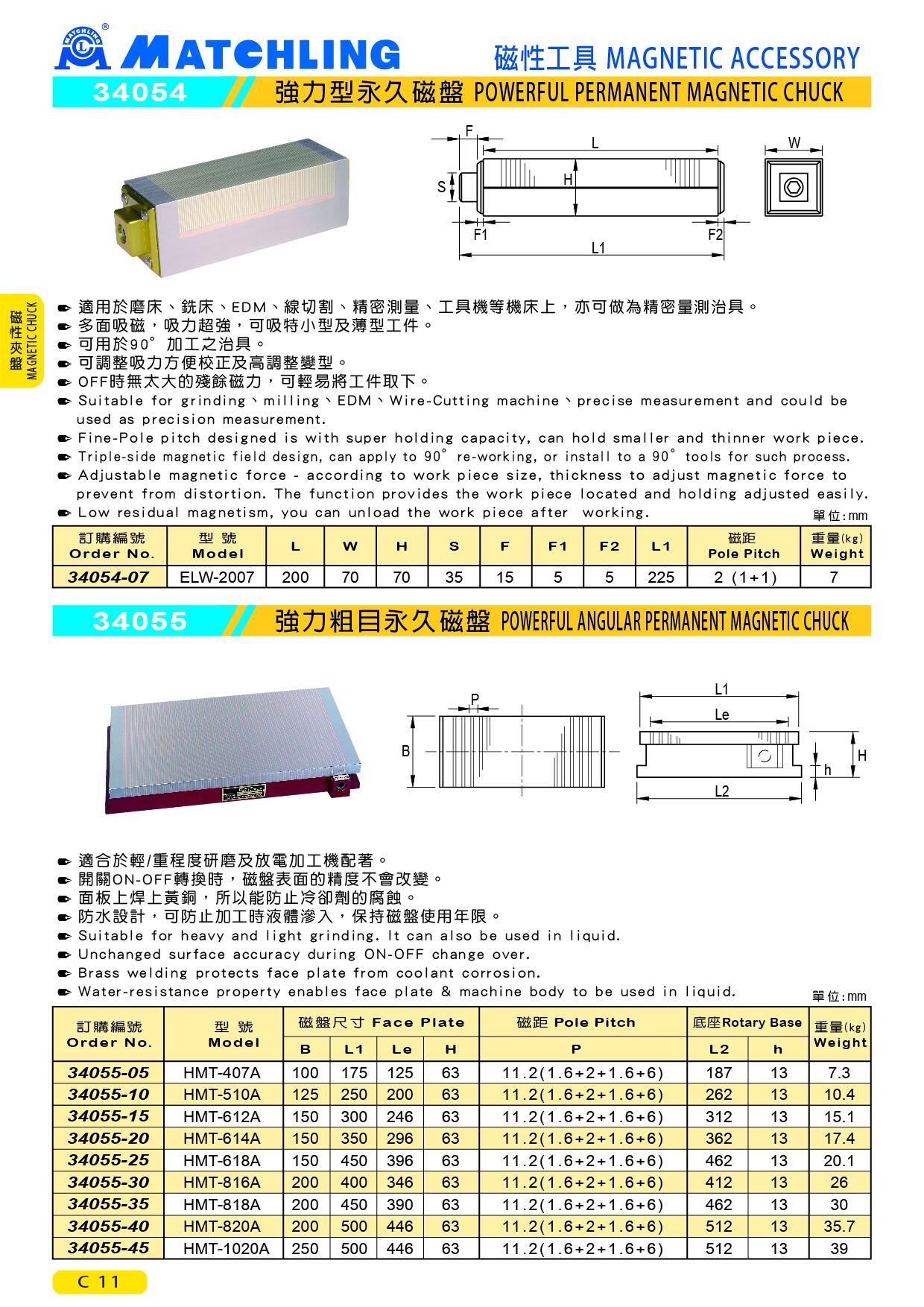

34054 POWERFUL PERMANENT MAGNETIC CHUCK
● Suitable for grinding、milling、EDM、Wire-Cutting machine、precise measurement and could be used as precision measurement.
● Fine-Pole pitch designed is with super holding capacity, can hold smaller and thinner work piece.
● Triple-side magnetic field design, can apply to 90∘re-working, or install to a 90∘tools for such process.
● Adjustable magnetic force - according to work piece size, thickness to adjust magnetic force to prevent from distortion.
The function provides the work piece located and holding adjusted easily.
● Low residual magnetism, you can unload the work piece after working.
unit：mm
| Order No. | Model | L | W | H | S | F | F1 | F2 | L1 | Pole Pitch | Weight (kg) |
| 34054-07 | ELW-2007 | 200 | 70 | 70 | 35 | 15 | 5 | 5 | 225 | 2 (1+1) | 7 |
