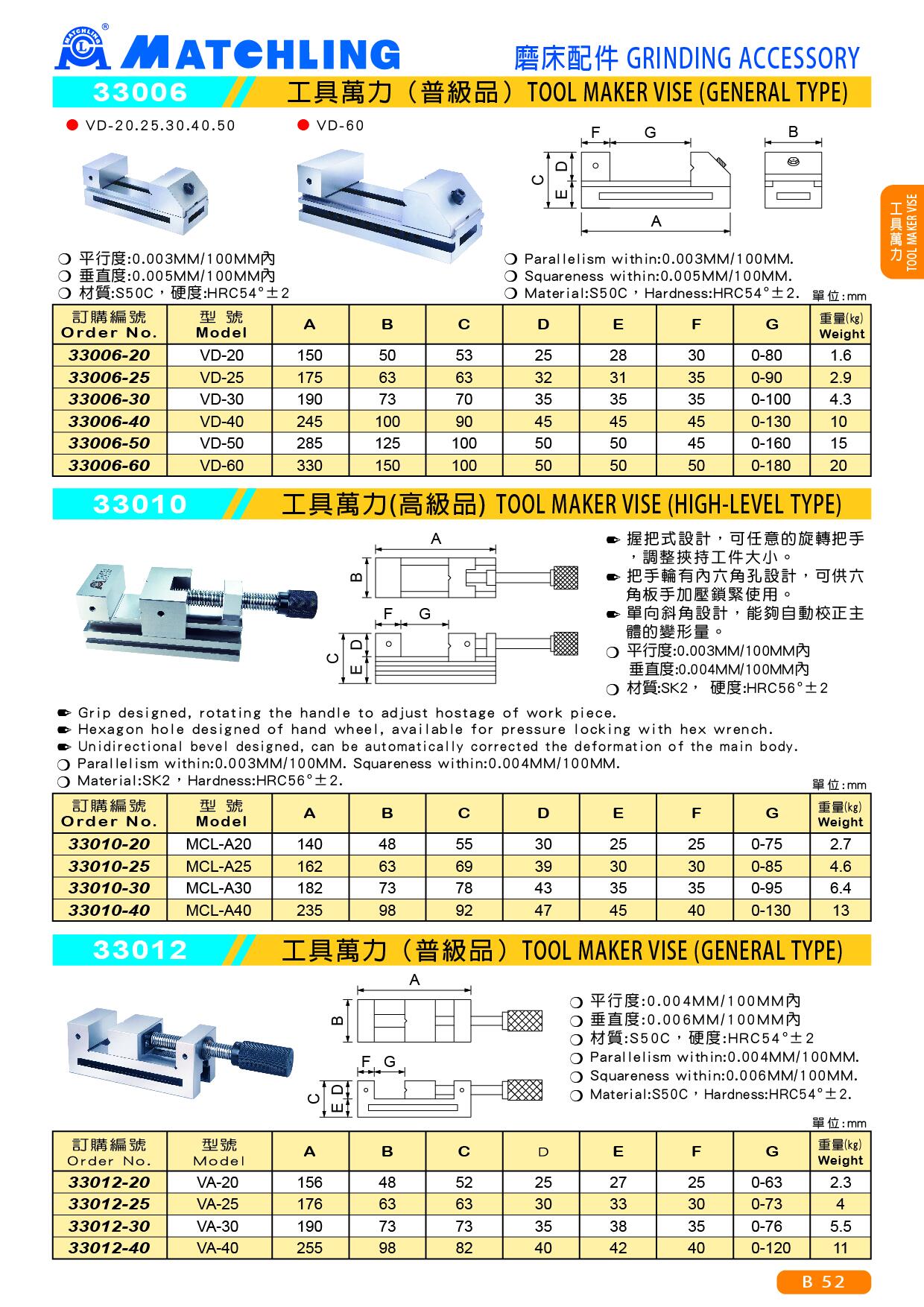

33010 TOOL MAKER VISE (HIGH-LEVEL TYPE)
● Grip designed, rotating the handle to adjust hostage of work piece.
● Hexagon hole designed of hand wheel, available for pressure locking with hex wrench.
● Unidirectional bevel designed, can be automatically corrected the deformation of the main body.
● Parallelism within:0.003MM/100MM. Squareness within:0.004MM/100MM.
● Material:SK2，Hardness:HRC56°±2.
unit：mm
| Order No | Model | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 33010-20 | MCL-A20 | 140 | 48 | 55 | 30 | 25 | 25 | 0-75 | 2.7 |
| 33010-25 | MCL-A25 | 162 | 63 | 69 | 39 | 30 | 30 | 0-85 | 4.6 |
| 33010-30 | MCL-A30 | 182 | 73 | 78 | 43 | 35 | 35 | 0-95 | 6.4 |
| 33010-40 | MCL-A40 | 235 | 98 | 92 | 47 | 45 | 40 | 0-130 | 13 |
