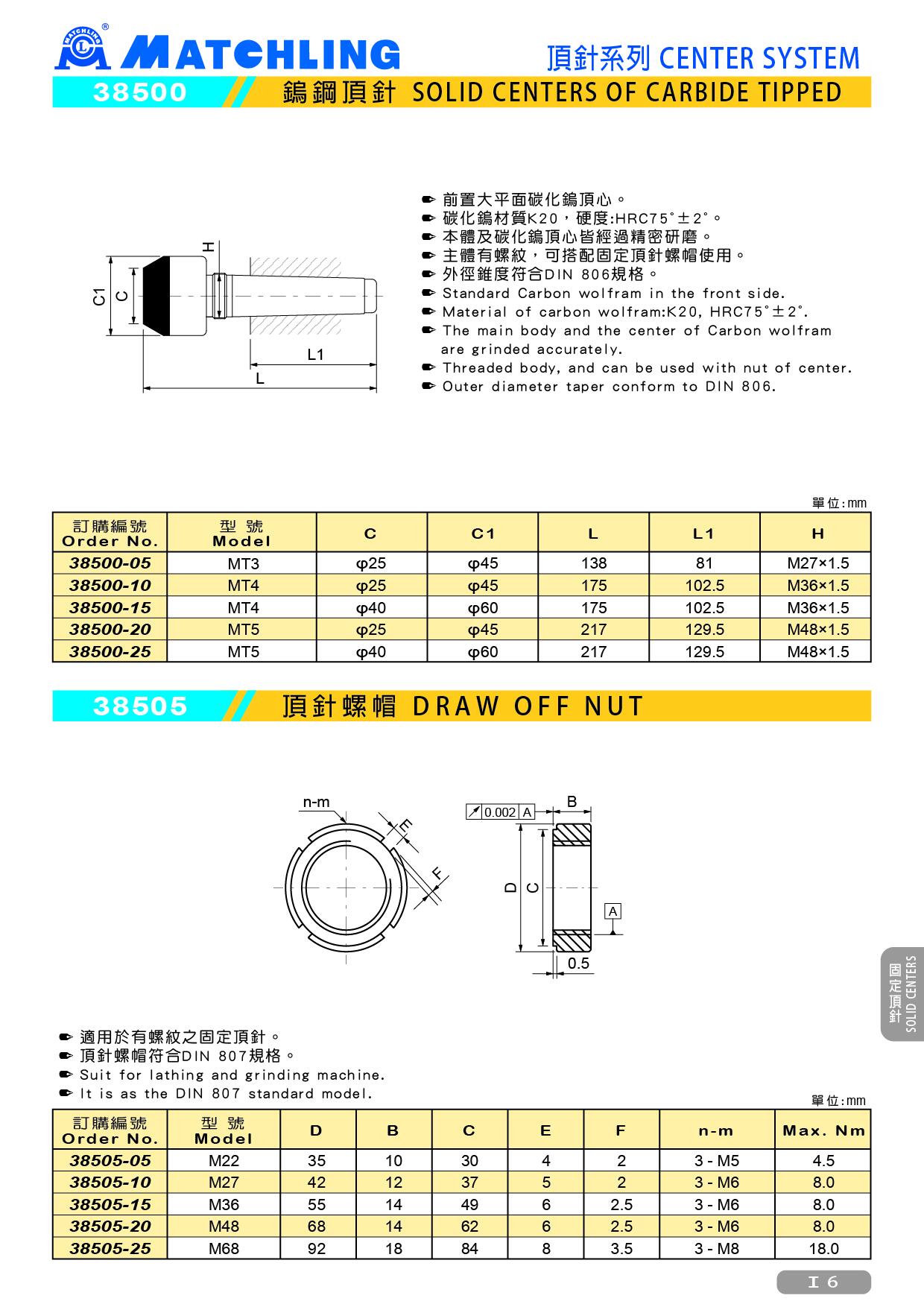

38500 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Threaded body, and can be used with nut of center.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | C | C1 | L | L1 | H |
| 38500-05 | MT3 | φ25 | φ45 | 138 | 81 | M27X1.5 |
| 38500-10 | MT4 | φ25 | φ45 | 175 | 102.5 | M36x1.5 |
| 38500-15 | MT4 | φ40 | φ60 | 175 | 102.5 | M36x1.5 |
| 38500-20 | MT5 | φ25 | φ45 | 217 | 129.5 | M48X1.5 |
| 38500-25 | MT5 | φ40 | φ60 | 217 | 129.5 | M48x1.5 |
