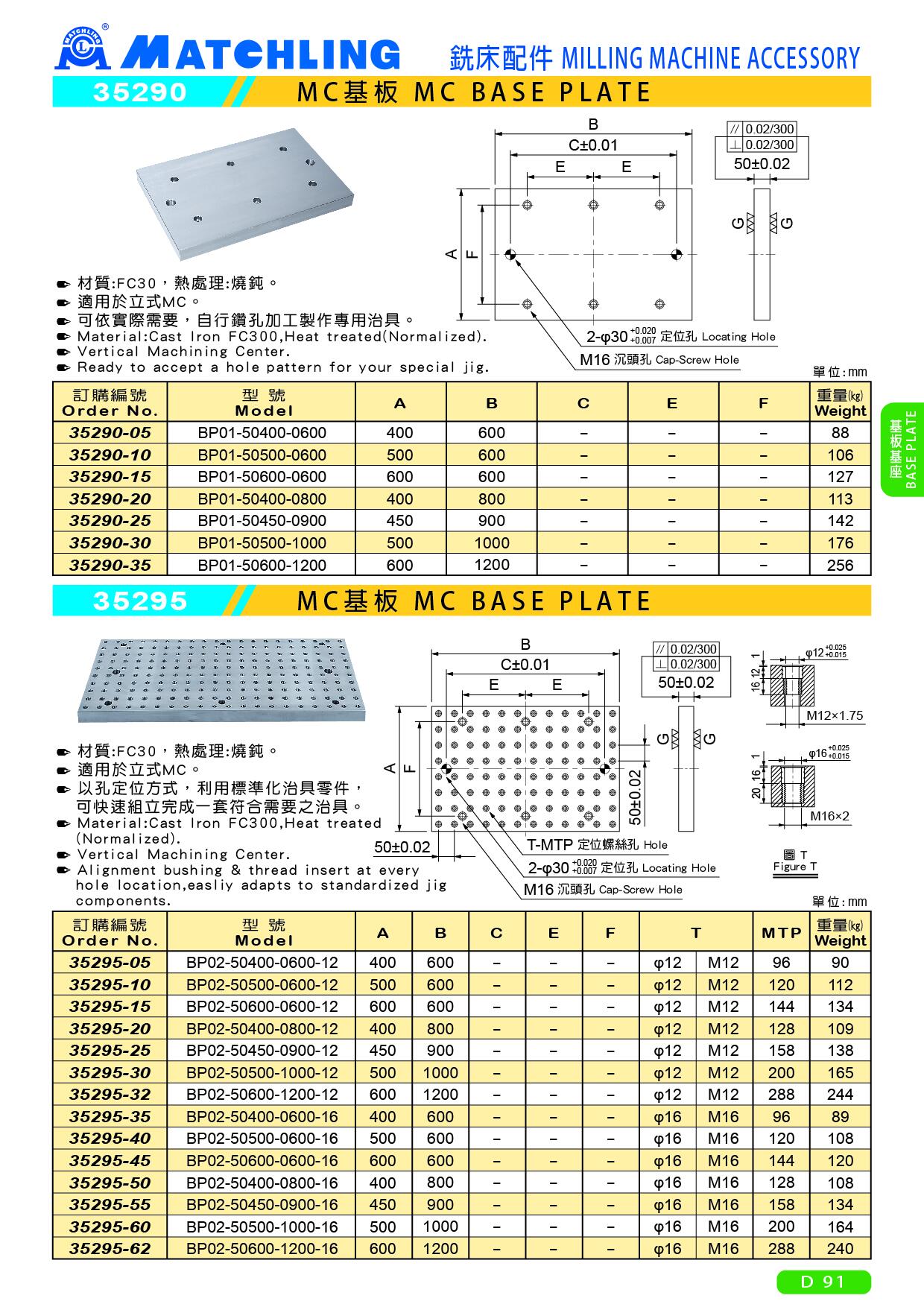

35290 MC BASE PLATE
● Material:Cast Iron FC300,Heat treated(Normalized).
● Vertical Machining Center.
● Ready to accept a hole pattern for your special jig.
unit：mm
| Order No | Model | A | B | C | E | F | Weight (kg) |
| 35290-05 | BP01-50400-0600 | 400 | 600 | - | - | - | 88 |
| 35290-10 | BP01-50500-0600 | 500 | 600 | - | - | - | 106 |
| 35290-15 | BP01-50600-0600 | 600 | 600 | - | - | - | 127 |
| 35290-20 | BP01-50400-0800 | 400 | 800 | - | - | - | 113 |
| 35290-25 | BP01-50450-0900 | 450 | 900 | - | - | - | 142 |
| 35290-30 | BP01-50500-1000 | 500 | 1000 | - | - | - | 176 |
| 35290-35 | BP01-50600-1200 | 600 | 1200 | - | - | - | 256 |
