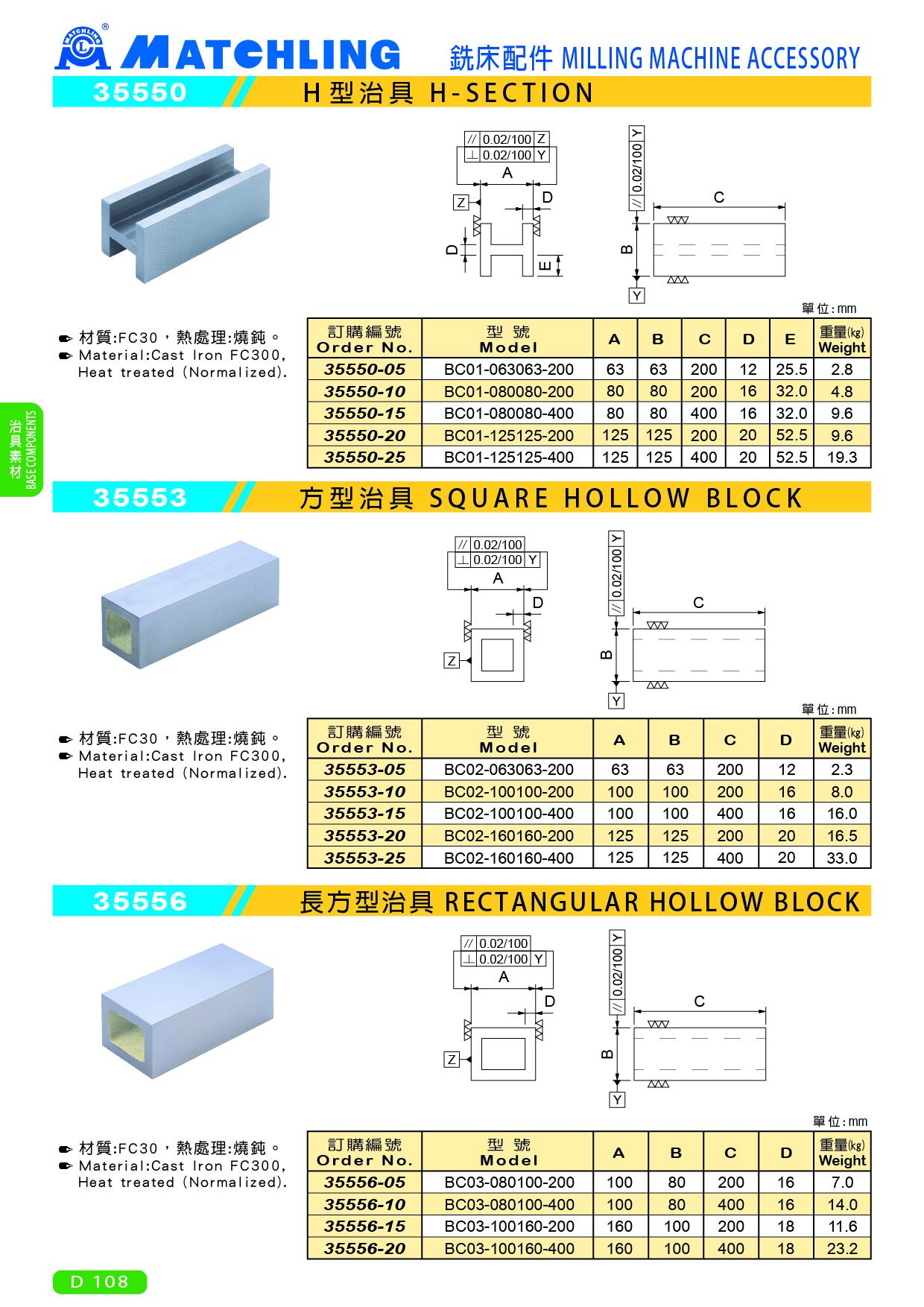

35550 H-SECTION
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | E | Weight (kg) |
| 35550-05 | BC01-063063-200 | 63 | 63 | 200 | 12 | 25.5 | 2.8 |
| 35550-10 | BC01-080080-200 | 80 | 80 | 200 | 16 | 32.0 | 4.8 |
| 35550-15 | BC01-080080-400 | 80 | 80 | 400 | 16 | 32.0 | 9.6 |
| 35550-20 | BC01-125125-200 | 125 | 125 | 200 | 20 | 52.5 | 9.6 |
| 35550-25 | BC01-125125-400 | 125 | 125 | 400 | 20 | 52.5 | 19.3 |
