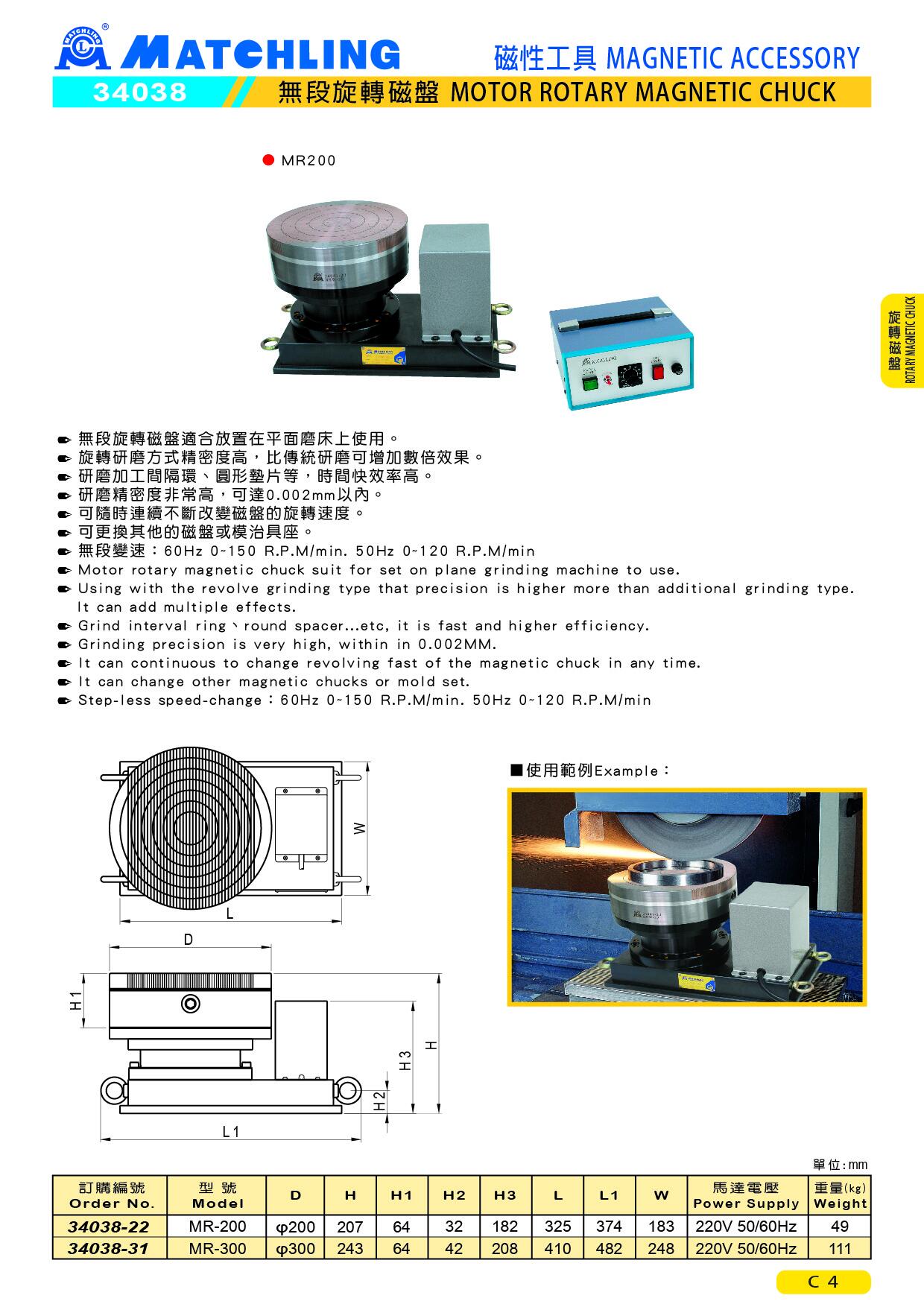

34038 MOTOR ROTARY MAGNETIC CHUCK


 Motor rotary magnetic chuck suit for set on plane grinding machine to use.
● Using with the revolve grinding type that precision is higher more than additional grinding type. It can add multiple effects.
 Grind interval ring、round spacer...etc, it is fast and higher efficiency.
● Grinding precision is very high, within in 0.002MM.
● It can continuous to change revolving fast of the magnetic chuck in any time.
 It can change other magnetic chucks or mold set.
● Step-less speed-change:0~180 R.P.M/min。




unit:mm

Order No.modelDHH1H2H3LL1WPower  SupplyWeight (kg)
34038-22MR-200φ2002076432182325374183220V  50/60Hz49kg
34038-31MR-300φ3002436442208410482248220V  50/60Hz111kg
