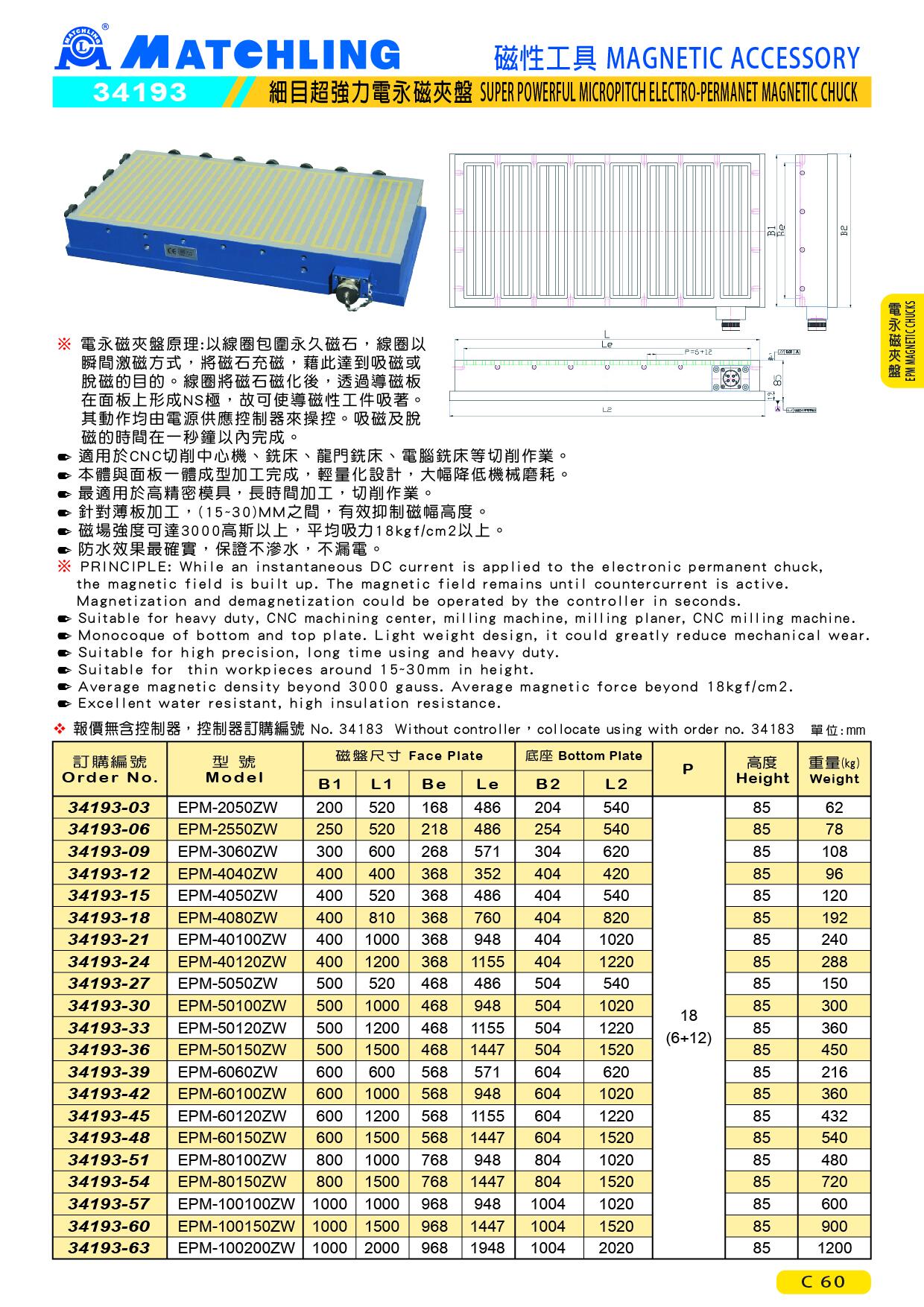

34193 Super Powerful Micropitch Electro-permanent Magnetic Chuck

※ PRINCIPLE: While an instantaneous DC current is applied to the electronic permanent chuck, the magnetic field is built up. The magnetic field remains until countercurrent is active.
Magnetization and demagnetization could be operated by the controller in seconds.
●Suitable for heavy duty, CNC machining center, milling machine, milling planer, CNC milling machine.
Monocoque of bottom and top plate. Light weight design, it could greatly reduce mechanical wear.
●Suitable for high precision, long time using and heavy duty.
●Suitable for thin workpieces around 15-30mm in height.
●Average magnetic density beyond 3000 gauss. Average magnetic force beyond 18kgf/cm2.
●Excellent water resistant, high insulation resistance.

※Without controller, collocate using with order no. 34183
