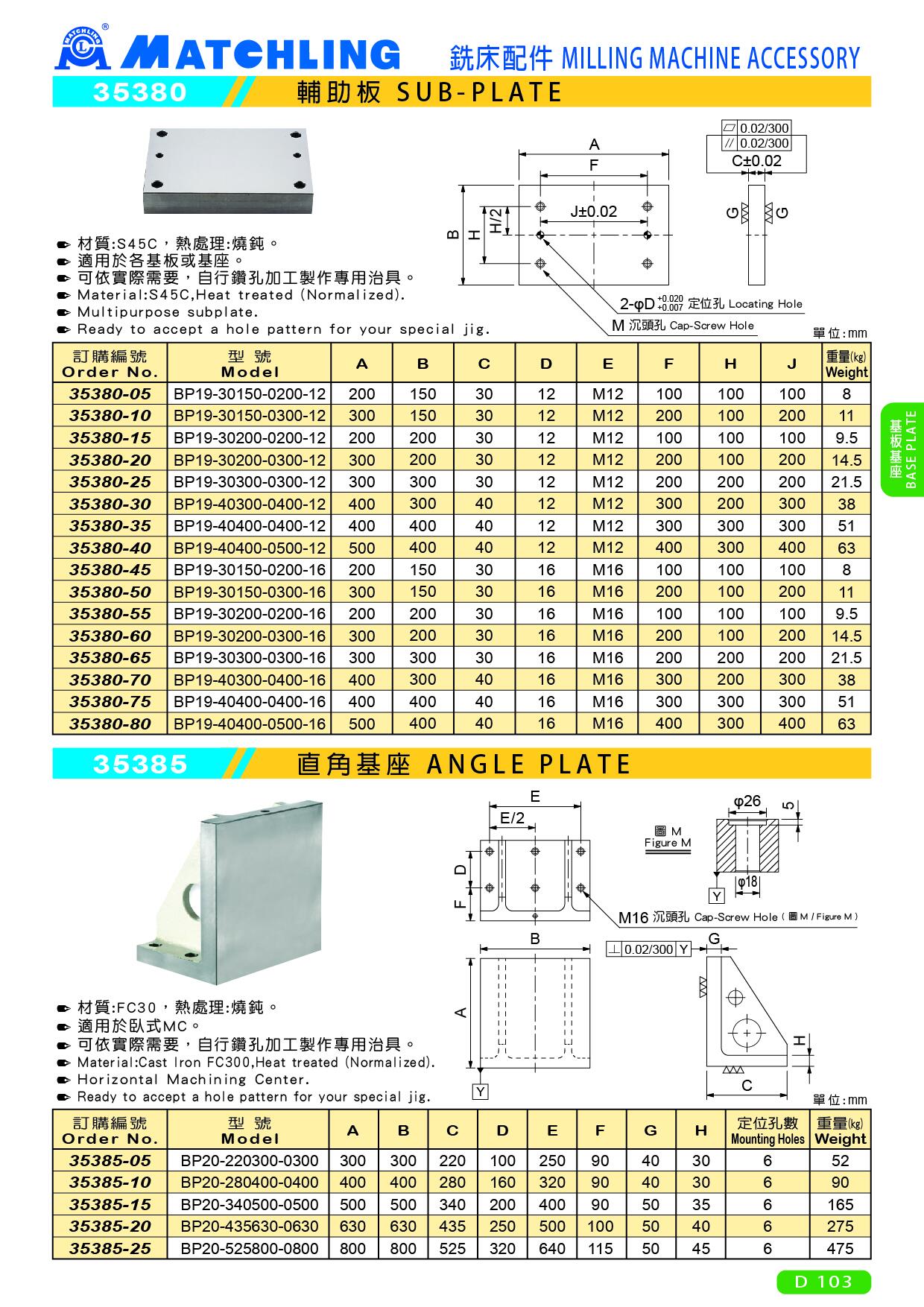

35385 ANGLE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | Mounting Holes | Weight (kg) |
| 35385-05 | BP20-220300-0300 | 300 | 300 | 220 | 100 | 250 | 90 | 40 | 30 | 6 | 52 |
| 35385-10 | BP20-280400-0400 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | 6 | 90 |
| 35385-15 | BP20-340500-0500 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | 6 | 165 |
| 35385-20 | BP20-435630-0630 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | 6 | 275 |
| 35385-25 | BP20-525800-0800 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | 6 | 475 |
