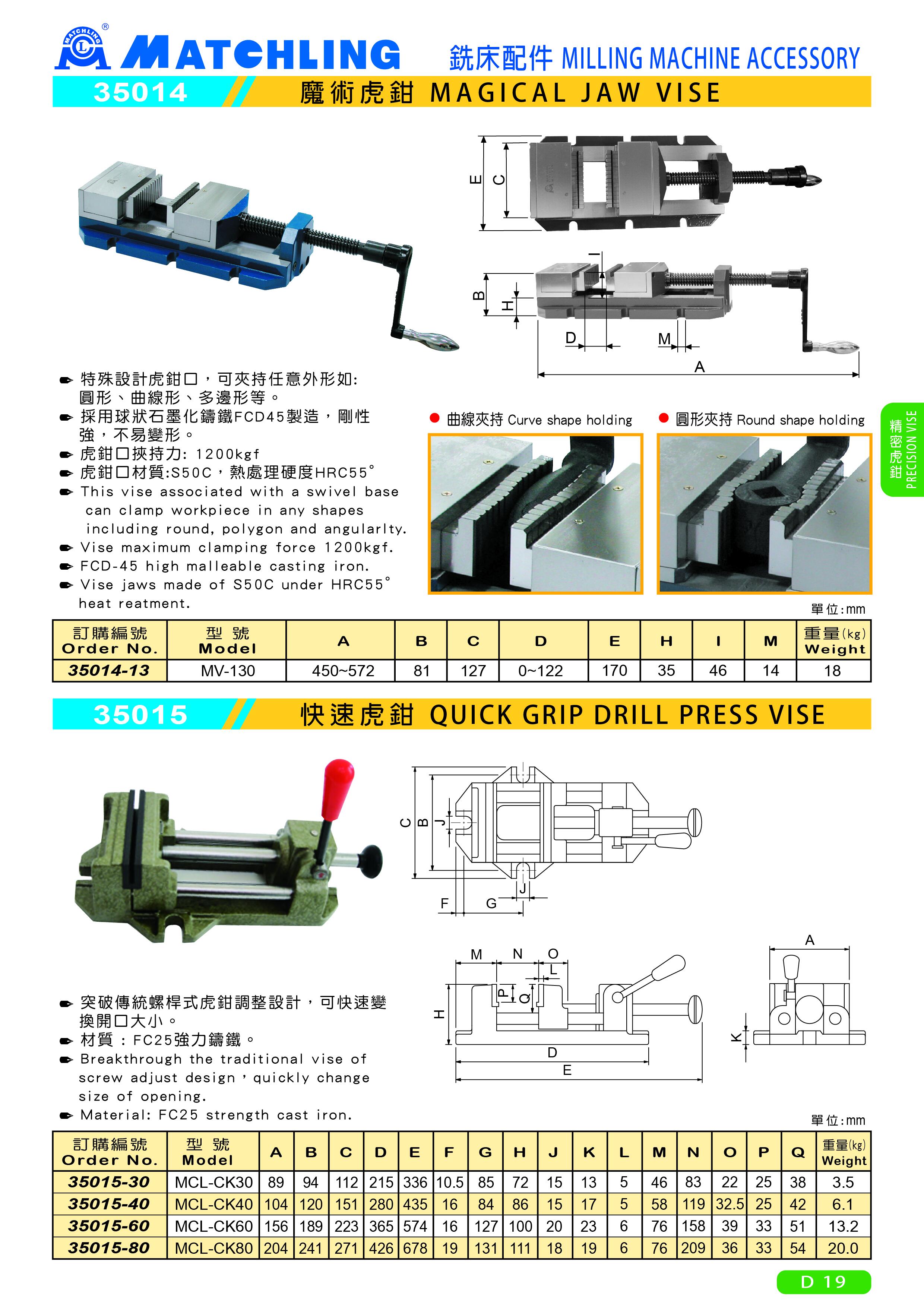

35015 QUICK GRIP DRILL PRESS VISE
● Breakthrough the traditional vise of screw adjust design，quickly change size of opening.
● Material: FC25 strength cast iron.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | Q | Weight (kg) |
| 35015-30 | MCL-CK30 | 89 | 94 | 112 | 215 | 336 | 10.5 | 85 | 72 | 15 | 13 | 5 | 46 | 83 | 22 | 25 | 38 | 3.5 |
| 35015-40 | MCL-CK40 | 104 | 120 | 151 | 280 | 435 | 16 | 84 | 86 | 15 | 17 | 5 | 58 | 119 | 32.5 | 25 | 42 | 6.1 |
| 35015-60 | MCL-CK60 | 156 | 189 | 223 | 365 | 574 | 16 | 127 | 100 | 20 | 23 | 6 | 76 | 158 | 39 | 33 | 51 | 13.2 |
| 35015-80 | MCL-CK80 | 204 | 241 | 271 | 426 | 678 | 19 | 131 | 111 | 18 | 19 | 6 | 76 | 209 | 36 | 33 | 54 | 20.0 |
