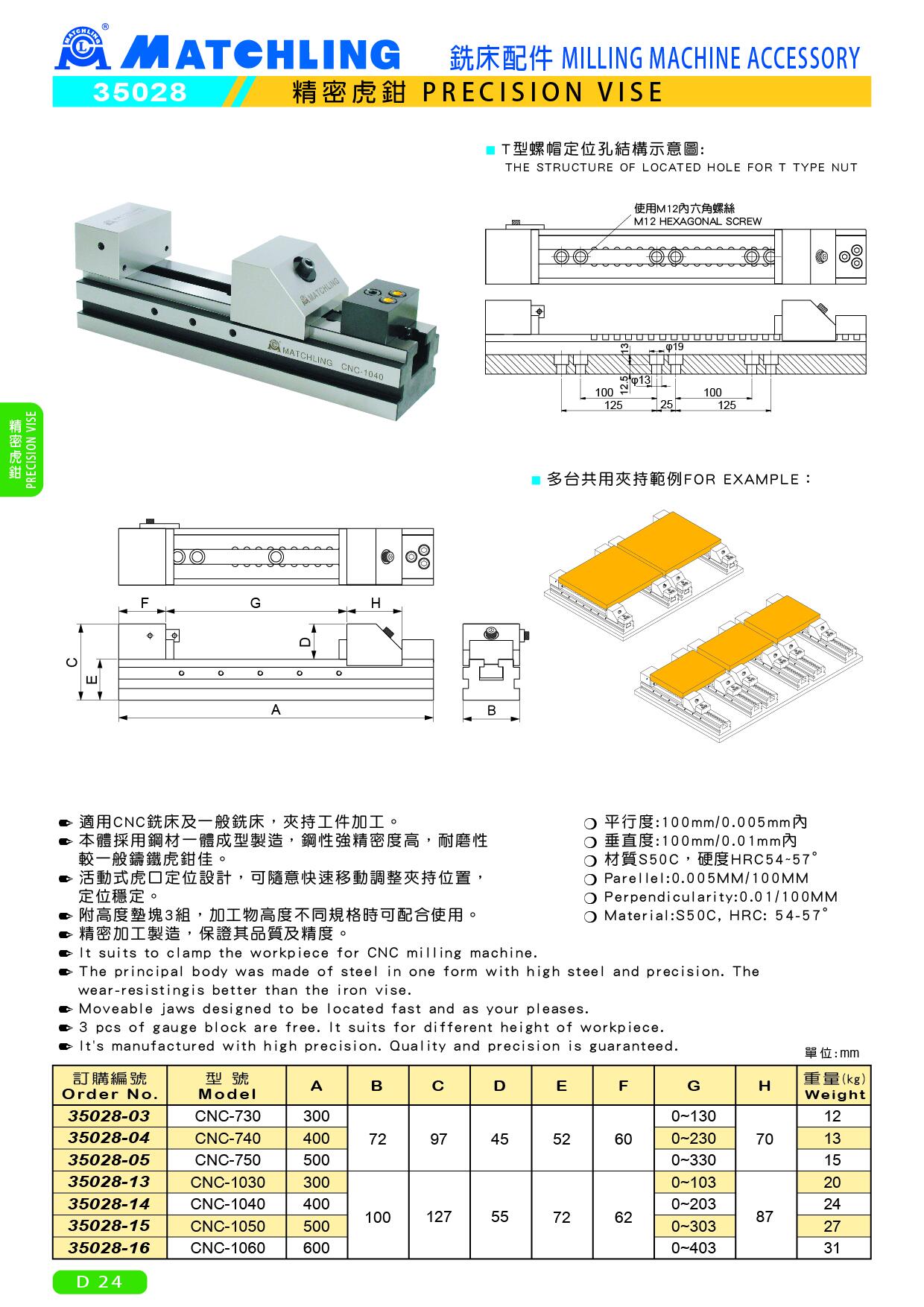

35028 PRECISION VISE
The CNC Precision Vise delivers stable clamping and precise positioning, designed for machining centers, milling machines, and automation. Its parallel setup capability allows simultaneous multi-workpiece machining, significantly boosting productivity.
Applications
• CNC machining centers • Precision parts manufacturing
• Milling operations • Automated production lines
• Mold machining • Parallel multi-vise machining
Key Benefits
• Strong clamping for secure workholding • Parallel setup for higher throughput
• High accuracy for tight tolerances • Rigid and durable construction
• Easy operation, reduced setup time
● It suits to clamp the workpiece for CNC milling machine.
● The principal body was made of steel in one form with high steel and precision. The wear-resistingis better than the iron vise.
● Moveable jaws designed to be located fast and as your pleases.
● 3 pcs of gauge block are free. It suits for different height of workpiece.
● It's manufactured with high precision. Quality and precision is guaranteed.
● Parellel:0.005MM/100MM
● Perpendicularity:0.01/100MM
● Material:S50C, HRC: 54-57
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | Weight (kg) |
| 35028-03 | CNG-730 | 300 | 72 | 97 | 45 | 52 | 60 | 0~130 | 70 | 12 |
| 35028-04 | CNC-740 | 400 | 0~230 | 13 | ||||||
| 35028-05 | CNC-750 | 500 | 0~330 | 15 | ||||||
| 35028-13 | CNC-1030 | 300 | 100 | 127 | 55 | 72 | 62 | 0~103 | 87 | 20 |
| 35028-14 | CNC-1040 | 400 | 0~203 | 24 | ||||||
| 35028-15 | CNC-1050 | 500 | 0~303 | 27 | ||||||
| 35028-16 | CNC-1060 | 600 | 0~403 | 31 |
