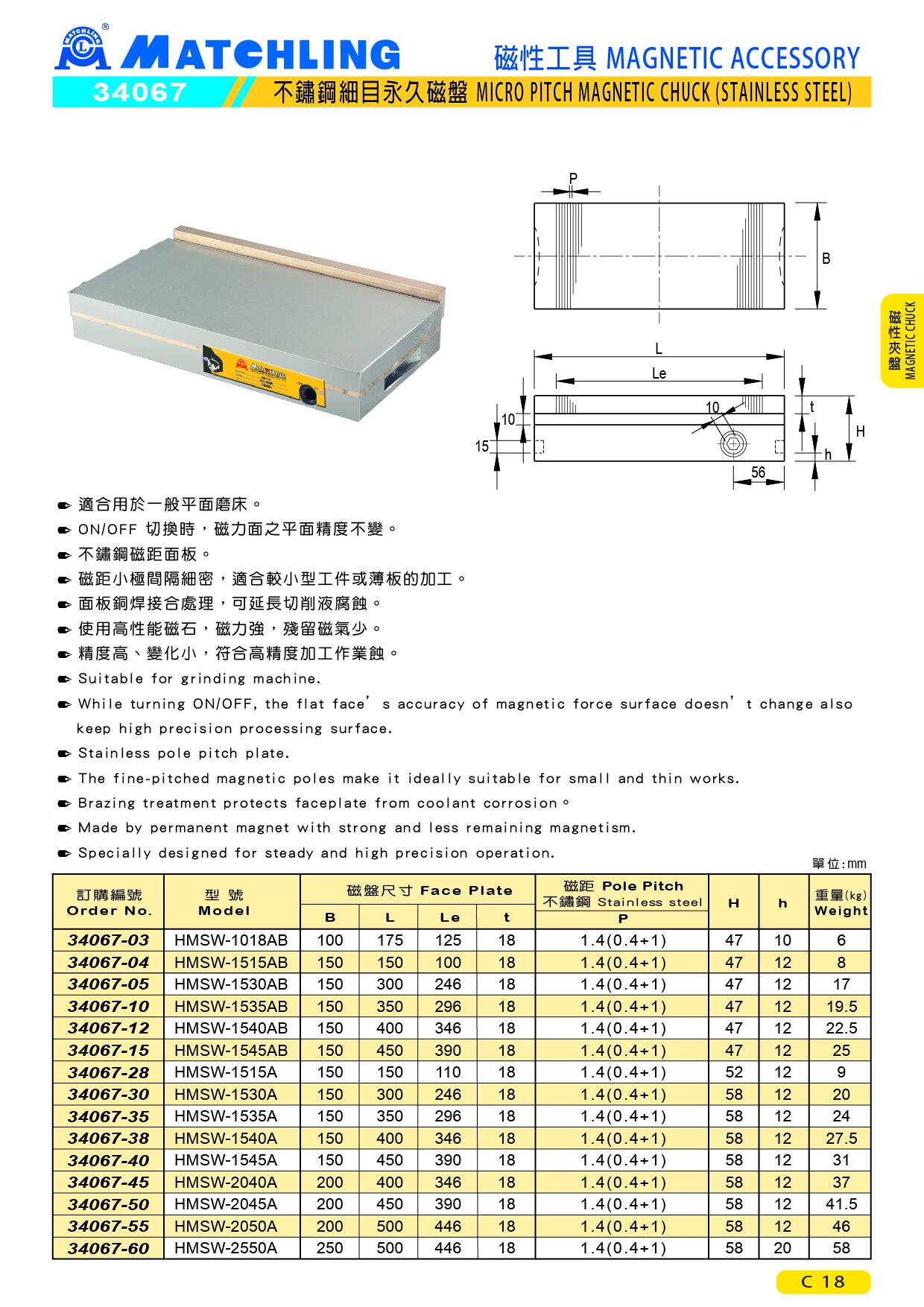

34067 MICRO PITCH MAGNETIC CHUCK(STAINLESS STEEL)
● Suitable for grinding machine.
● While turning ON/OFF, the flat face' s accuracy of magnetic force surface doesn't change also keep high precision processing surface.
● Stainless pole pitch plate.
● The fine-pitched magnetic poles make it ideally suitable for small and thin works.
● Brazing treatment protects faceplate from coolant corrosion.
● Made by permanent magnet with strong and less remaining magnetism.
● Specially designed for steady and high precision operation.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch Stainless steel | H | h | Weight (kg） | |||
| B | L | Le | t | P | |||||
| 34067-03 | HMSW-1018AB | 100 | 175 | 125 | 18 | 1.4(0.4+1) | 47 | 10 | 6 |
| 34067-04 | HMSW-1515AB | 150 | 150 | 100 | 18 | 1.4(0.4+1) | 47 | 12 | 8 |
| 34067-05 | HMSW-1530AB | 150 | 300 | 246 | 18 | 1.4(0.4+1) | 47 | 12 | 17 |
| 34067-10 | HMSW-1535AB | 150 | 350 | 296 | 18 | 1.4(0.4+1) | 47 | 12 | 19.5 |
| 34067-12 | HMSW-1540AB | 150 | 400 | 346 | 18 | 1.4(0.4+1) | 47 | 12 | 22.5 |
| 34067-15 | HMSW-1545AB | 150 | 450 | 390 | 18 | 1.4(0.4+1) | 47 | 12 | 25 |
| 34067-28 | HMSW-1515A | 150 | 150 | 110 | 18 | 1.4(0.4+1) | 52 | 12 | 9 |
| 34067-30 | HMSW-1530A | 150 | 300 | 246 | 18 | 1.4(0.4+1) | 58 | 12 | 20 |
| 34067-35 | HMSW-1535A | 150 | 350 | 296 | 18 | 1.4(0.4+1) | 58 | 12 | 24 |
| 34067-38 | HMSW-1540A | 150 | 400 | 346 | 18 | 1.4(0.4+1) | 58 | 12 | 27.5 |
| 34067-40 | HMSW-1545A | 150 | 450 | 390 | 18 | 1.4(0.4+1) | 58 | 12 | 31 |
| 34067-45 | HMSW-2040A | 200 | 400 | 346 | 18 | 1.4(0.4+1) | 58 | 12 | 37 |
| 34067-50 | HMSW-2045A | 200 | 450 | 390 | 18 | 1.4(0.4+1) | 58 | 12 | 41.5 |
| 34067-55 | HMSW-2050A | 200 | 500 | 446 | 18 | 1.4(0.4+1) | 58 | 12 | 46 |
| 34067-60 | HMSW-2550A | 250 | 500 | 446 | 18 | 1.4(0.4+1) | 58 | 20 | 58 |
