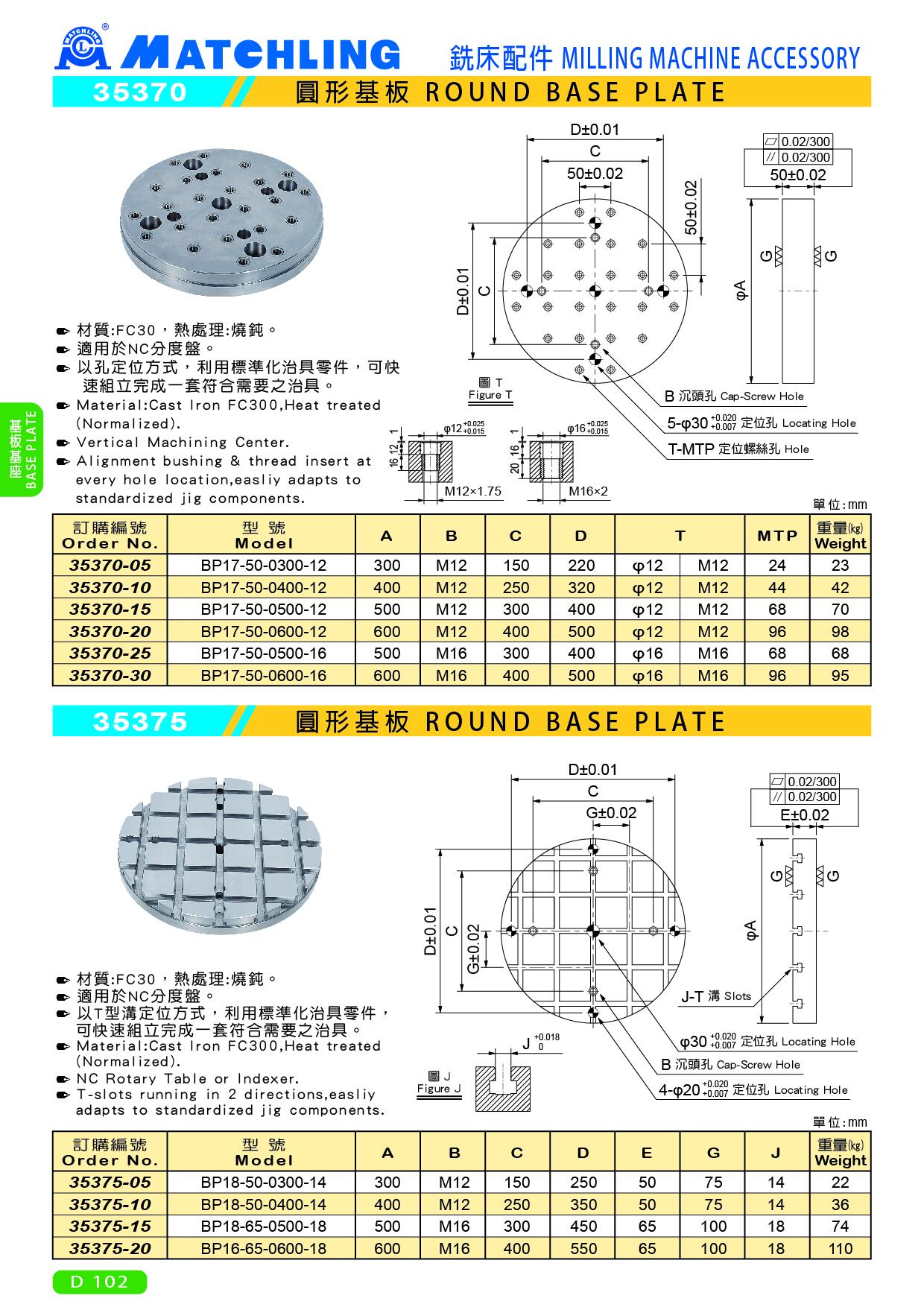

35375 ROUND BASE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● NC Rotary Table or Indexer.
● T-slots running in 2 directions,easliy adapts to standardized jig components.
unit：mm
| Order No | Model | A | B | C | D | E | G | J | Weight (kg) |
| 35375-05 | BP18-50-0300-14 | 300 | M12 | 150 | 250 | 50 | 75 | 14 | 22 |
| 35375-10 | BP18-50-0400-14 | 400 | M12 | 250 | 350 | 50 | 75 | 14 | 36 |
| 35375-15 | BP18-65-0500-18 | 500 | M16 | 300 | 450 | 65 | 100 | 18 | 74 |
| 35375-20 | BP16-65-0600-18 | 600 | M16 | 400 | 550 | 65 | 100 | 18 | 110 |
