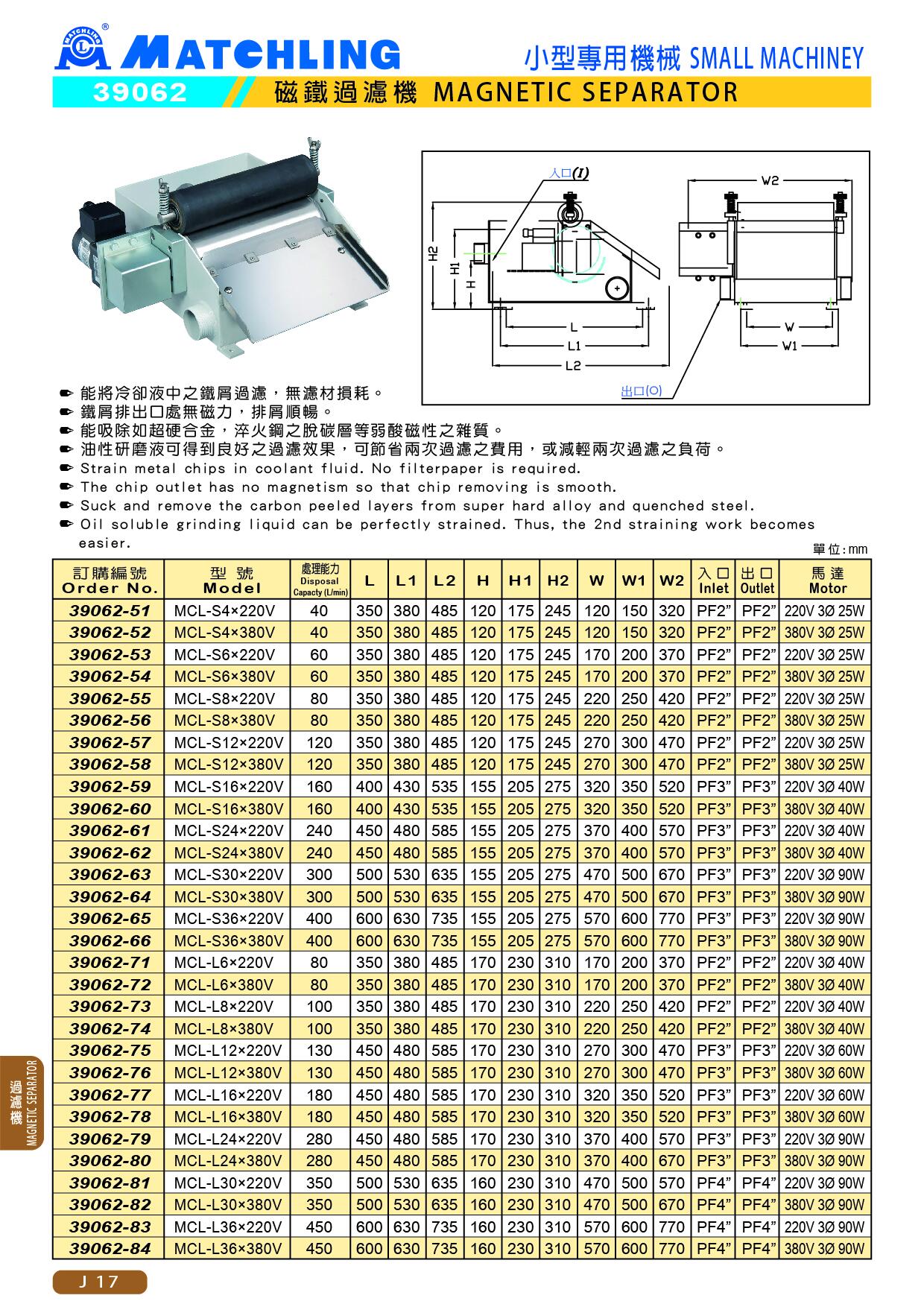

39062 MAGNETIC SEPARATOR
●Strain metal chips in coolant fluid. No filterpaper is required.
● The chip outlet has no magnetism so that chip removing is smooth.
●Suck and remove the carbon peeled layers from super hard alloy and quenched steel.
● Oil soluble grinding liquid can be perfectly strained. Thus, the 2nd straining work becomes easier.
unit：mm
| Order No. | Model | DiSpOWl Capocty(L/min) | L | L1 | L2 | H | H2 | W | W1 | W2 | Inlet O | Outlet P | Motor |
| 39062-51 | MCL-S4x220V | 40 | 350 | 380 | 485 | 120 | 245 | 120 | 150 | 320 | PF 2" | PF 2" | 220V 3Ø 25W |
| 39062-52 | MCL-S4x380V | 40 | 350 | 380 | 485 | 120 | 245 | 120 | 150 | 320 | PF 2" | PF 2" | 380V3Ø25W |
| 39062-53 | MCL-S6x220V | 60 | 350 | 380 | 485 | 120 | 245 | 170 | 200 | 370 | PF 2" | PF 2" | 220V 3Ø 25W |
| 39062-54 | MCL-S6x380V | 60 | 350 | 380 | 485 | 120 | 245 | 170 | 200 | 370 | PF 2" | PF 2" | 380V 3Ø 25W |
| 39062-55 | MCL-S8x220V | 80 | 350 | 380 | 485 | 120 | 245 | 220 | 250 | 420 | PF 2" | PF 2" | 220V 3Ø 25W |
| 39062-56 | MCL-S8x380V | 80 | 350 | 380 | 485 | 120 | 245 | 220 | 250 | 420 | PF 2" | PF 2' | 380V 3Ø 25W |
| 39062-57 | MCL-S12x220V | 120 | 350 | 380 | 485 | 120 | 245 | 270 | 300 | 470 | PF 2" | PF 2* | 220V 3Ø 25W |
| 39062-58 | MCL-S12x380V | 120 | 350 | 380 | 485 | 120 | 245 | 270 | 300 | 470 | PF 2" | PF 2" | 380V3Ø 25W |
| 39062-59 | MCL-S16x220V | 160 | 400 | 430 | 535 | 155 | 275 | 320 | 350 | 520 | PF 3" | PF 3" | 220V 3Ø 40W |
| 39062-60 | MCL-S16x380V | 160 | 400 | 430 | 535 | 155 | 275 | 320 | 350 | 520 | PF 3" | PF 3" | 380V3Ø 40W |
| 39062-61 | MCL-S24x220V | 240 | 450 | 480 | 585 | 155 | 275 | 370 | 400 | 570 | PF 3" | PF 3" | 220V3Ø 40W |
| 39062-62 | MCL-S24x380V | 240 | 450 | 480 | 585 | 155 | 275 | 370 | 400 | 570 | PF 3" | PF 3” | 380V 3Ø40W |
| 39062-63 | MCL-S30x220V | 300 | 500 | 530 | 635 | 155 | 275 | 470 | 500 | 670 | PF 3" | PF 3" | 220V3Ø 90W |
| 39062-64 | MCL-S30x380V | 300 | 500 | 530 | 635 | 155 | 275 | 470 | 500 | 670 | PF 3" | PF 3' | 380V 3Ø 90W |
| 39062-65 | MCL-S36x220V | 400 | 600 | 630 | 735 | 155 | 275 | 570 | 600 | 770 | PF 3" | PF 3" | 220V 3Ø 90W |
| 39062-66 | MCL-S36x380V | 400 | 600 | 630 | 735 | 155 | 275 | 570 | 600 | 770 | PF 3“ | PF 3" | 380V 3Ø 90W |
| 39062-71 | MCL-L6x220V | 80 | 350 | 380 | 485 | 170 | 310 | 170 | 200 | 370 | PF 2" | PF 2' | 220V3Ø 40W |
| 39062-72 | MCL-L6x380V | 80 | 350 | 380 | 485 | 170 | 310 | 170 | 200 | 370 | PF 2" | PF 2" | 380V3Ø 40W |
| 39062-73 | MCL-L8x220V | 100 | 350 | 380 | 485 | 170 | 310 | 220 | 250 | 420 | PF 2" | PF 2' | 220V3Ø 40W |
| 39062-74 | MCL-L8x380V | 100 | 350 | 380 | 485 | 170 | 310 | 220 | 250 | 420 | PF 2" | PF 3" | 380V 3Ø40W |
| 39062-75 | MCL-L12x220V | 130 | 450 | 480 | 585 | 170 | 310 | 270 | 300 | 470 | PF 3" | PF 3" | 220V3Ø60W |
| 39062-76 | MCL-L12x380V | 130 | 450 | 480 | 585 | 170 | 310 | 270 | 300 | 470 | PF 3" | PF 3” | 380V 3Ø 60W |
| 39062-77 | MCL-L16x220V | 180 | 450 | 480 | 585 | 170 | 310 | 320 | 350 | 520 | PF 3" | PF 3" | 220V 3Ø 60W |
| 39062-78 | MCL-L16x380V | 180 | 450 | 480 | 585 | 170 | 310 | 320 | 350 | 520 | PF 3" | PF 3' | 380V 3Ø 60W |
| 39062-79 | MCL-L24x220V | 280 | 450 | 480 | 585 | 170 | 310 | 370 | 400 | 570 | PF 3" | PF 3・ | 220V 3Ø 90W |
| 39062-80 | MCL-L24x380V | 280 | 450 | 480 | 585 | 仃0 | 310 | 370 | 400 | 570 | PF 3” | PF 3" | 380V 3Ø 90W |
| 39062-81 | MCL-L30x220V | 350 | 500 | 530 | 635 | 160 | 310 | 470 | 500 | 670 | PF 4” | PF 4" | 220V3Ø 90W |
| 39062-82 | MCL-L30x380V | 350 | 500 | 530 | 635 | 160 | 310 | 470 | 500 | 670 | PF 4" | PF 4" | 380V 3Ø 90W |
| 39062-83 | MCL-L36x220V | 450 | 600 | 630 | 735 | 160 | 310 | 570 | 600 | 770 | PF 4" | PF 4" | 220V 3Ø 90W |
| 39062-84 | MCL-L36x380V | 450 | 600 | 630 | 735 | 160 | 310 | 570 | 600 | 770 | PF 4” | PF 4” | 380V 3Ø 90W |
