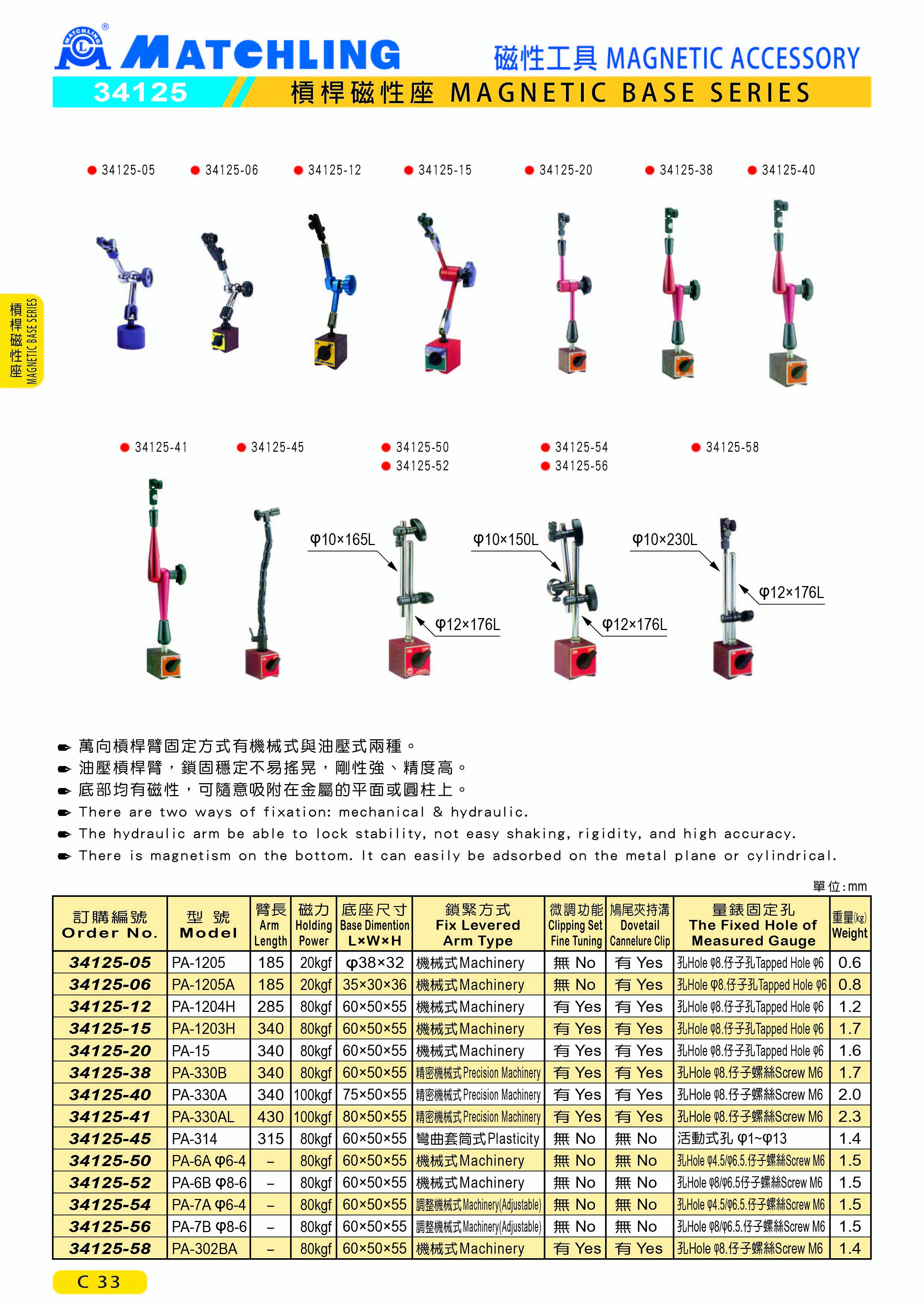

34125 MAGNETIC BASE SERIES
● There are two ways of fixation: mechanical & hydraulic.
● The hydraulic arm be able to lock stability, not easy shaking, rigidity, and high accuracy.
● There is magnetism on the bottom. It can easily be adsorbed on the metal plane or cylindrical.
unit：mm
| Order No. | Model | Arm Length | Holding Power | Base Dimention LxWxH | Fix Levered Arm Type | Clipping Set Fine Tuning | Dovetail Cannelure Clip | The Fixed Hole of Measured Gauge | Weight (kg) |
| 34125-05 | PA-1205 | 185 | 20kgf | φ38x32 | Machinery | No | Yes | Hole φ8.Tapped Hole φ6 | 0.6 |
| 34125-06 | PA-1205A | 185 | 20kgf | 35x30x36 | Machinery | No | Yes | Hole φ8.Tapped Hole φ6 | 0.8 |
| 34125-12 | PA-1204H | 285 | 80kgf | 60x50x55 | Machinery | Yes | Yes | Hole φ8.Tapped Hole φ6 | 1.2 |
| 34125-15 | PA-1203H | 340 | 80kgf | 60x50x55 | Machinery | Yes | Yes | Hole φ8.Tapped Hole φ6 | 1.7 |
| 34125-20 | PA-15 | 340 | 80kgf | 60x50x55 | Machinery | Yes | Yes | Hole φ8.Tapped Hole φ6 | 1.6 |
| 34125-38 | PA-330B | 340 | 80kgf | 60x50x55 | Precision Machinery | Yes | Yes | Hole φ8.Screw M6 | 1.7 |
| 34125-40 | PA-330A | 340 | 100kgf | 75x50x55 | Precision Machinery | Yes | Yes | Hole φ8.Screw M6 | 2.0 |
| 34125-41 | PA-330AL | 430 | 100kgf | 80x50x55 | Precision Machinery | Yes | Yes | Hole φ8.Screw M6 | 2.3 |
| 34125-45 | PA-314 | 315 | 80kgf | 60x50x55 | Plasticity | No | No | φ1~φ13 | 1.4 |
| 34125-50 | PA-6A φ6-4 | - | 80kgf | 60x50x55 | Machinery | No | No | Hole φ4.5/φ6.5.Screw M6 | 1.5 |
| 34125-52 | PA-6B φ8-6 | - | 80kgf | 60x50x55 | Machinery | No | No | Hole φ8/φ6.5.Screw M6 | 1.5 |
| 34125-54 | PA-7A φ6-4 | - | 80kgf | 60x50x55 | Machinery(Adjustable) | No | No | Hole φ4.5/φ6.5.Screw M6 | 1.5 |
| 34125-56 | PA-7B φ8-6 | - | 80kgf | 60x50x55 | Machinery(Adjustable) | No | No | Hole φ8/φ6.5.Screw M6 | 1.5 |
| 34125-58 | PA-302BA | - | 80kgf | 60x50x55 | Machinery | Yes | Yes | Hole φ8.Screw M6 | 1.4 |
