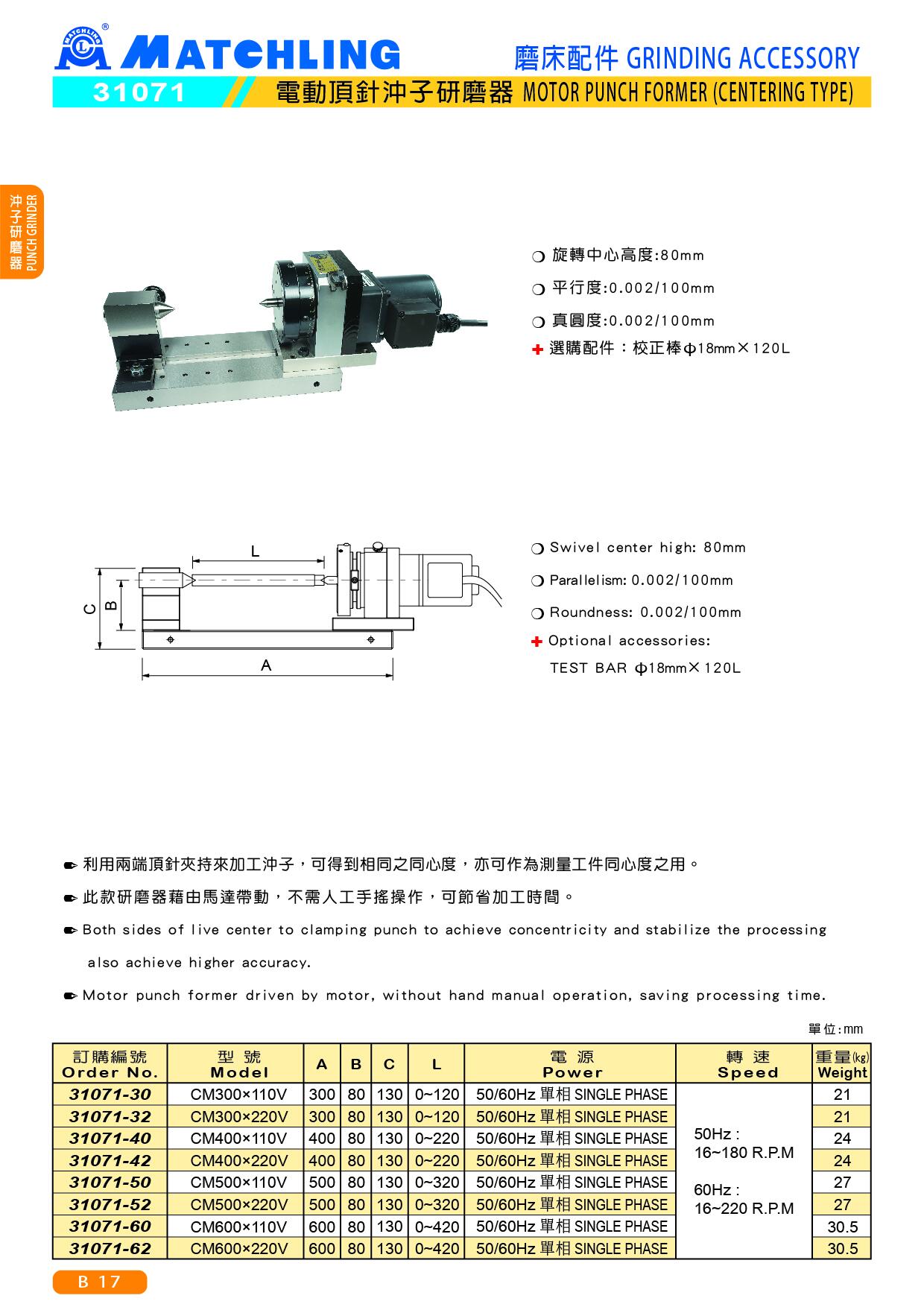

31071 MOTOR PUNCH FORMER (CENTERING TYPE)
● Both sides of live center to clamping punch to achieve concentricity and stabilize the processing also achieve higher accuracy.
● Motor punch former driven by motor, without hand manual operation, saving processing time.
■ Specifications:
● Swivel center high: 80mm
● Indexing Div: 24(Every 15°)±10"
● Parallelism: 0.002/100mm
● Roundness: 0.002/100mm
✚ Optional accessories: TEST BAR φ18mm×120L
unit：mm
| Order No. | Model | A | B | C | L | Motor | Speed | Weight (kg) |
| 31071-30 | CM300×110V | 300 | 80 | 130 | 0 ~ 120 | 50/60Hz SINGLE PHASE | 50Hz : 16~180 R.P.M 60Hz : 16~220 R.P.M | 21 |
| 31071-32 | CM300×220V | 300 | 80 | 130 | 0 ~ 120 | 21 | ||
| 31071-40 | CM400×110V | 400 | 80 | 130 | 0 ~ 220 | 24 | ||
| 31071-42 | CM400×220V | 400 | 80 | 130 | 0 ~ 220 | 24 | ||
| 31071-50 | CM500×110V | 500 | 80 | 130 | 0 ~ 320 | 27 | ||
| 31071-52 | CM500×220V | 500 | 80 | 130 | 0 ~ 320 | 27 | ||
| 31071-60 | CM600×110V | 600 | 80 | 130 | 0 ~ 420 | 30.5 | ||
| 31071-62 | CM600×220V | 600 | 80 | 130 | 0 ~ 420 | 30.5 |
