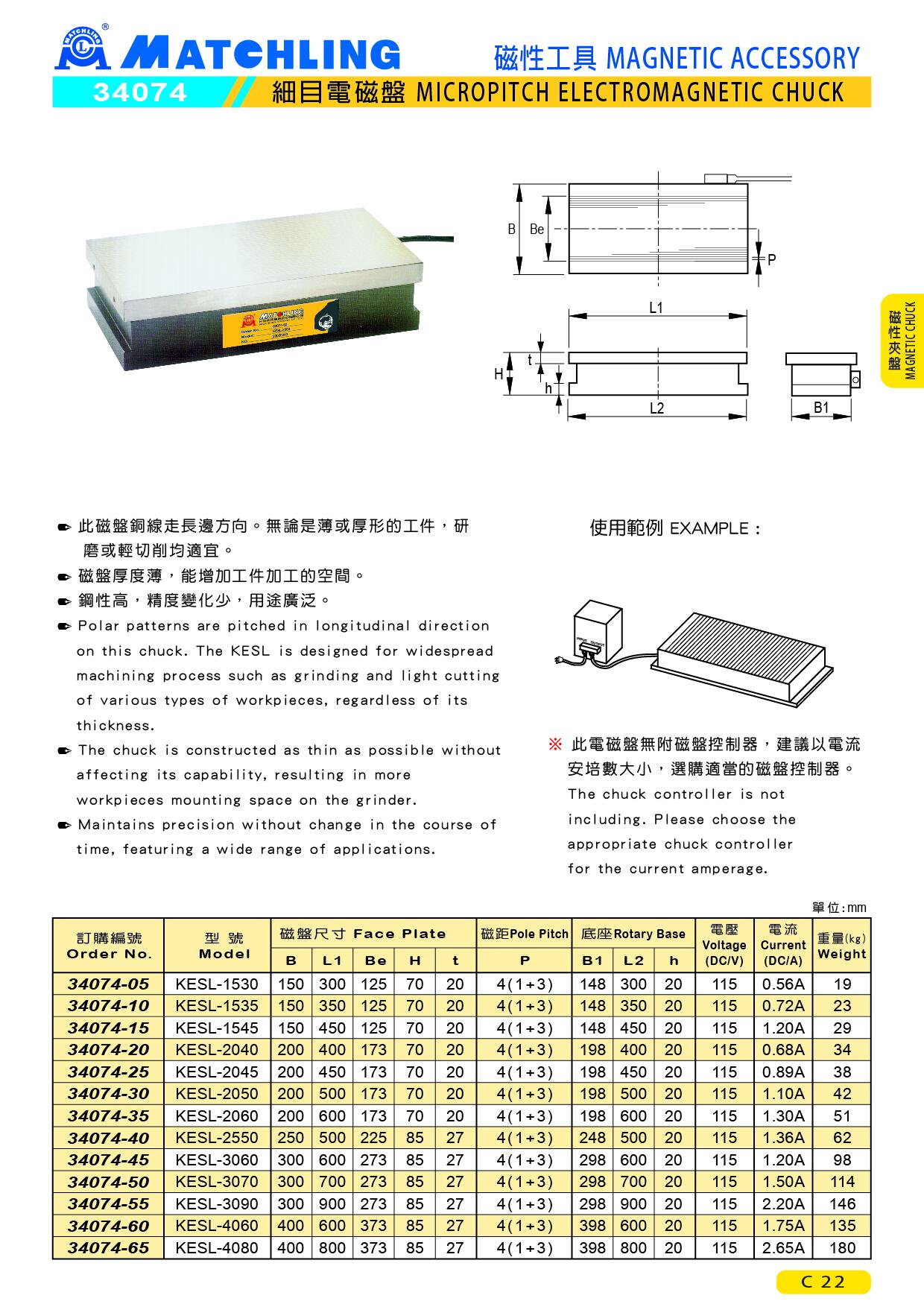

34074 Micropitch Electromagnetic Chuck
● Polar patterns are pitched in longitudinal direction on this chuck. The KESL is designed for widespread machining process such as.
grinding and light cutting of various types of workpieces, regardless of its thickness.
● The chuck is constructed as thin as possible without affecting its capability, resulting in more workpieces mounting space on the grinder.
● Maintains precision without change in the course of time, featuring a wide range of applications.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Voltage | Current | Weight (kg) | ||||||
| B | L1 | Be | H | t | P | B1 | L2 | h | |||||
| 34074-05 | KESL-1530 | 150 | 300 | 125 | 70 | 20 | 4(1+3) | 148 | 300 | 20 | 115 | 0.56A | 19 |
| 34074-10 | KESL-1535 | 150 | 350 | 125 | 70 | 20 | 4(1+3) | 148 | 350 | 20 | 115 | 0.72A | 23 |
| 34074-15 | KESL-1545 | 150 | 450 | 125 | 70 | 20 | 4(1+3) | 148 | 450 | 20 | 115 | 1.20A | 29 |
| 34074-20 | KESL-2040 | 200 | 400 | 173 | 70 | 20 | 4(4+3) | 198 | 400 | 20 | 115 | 0.68A | 34 |
| 34074-25 | KESL-2045 | 200 | 450 | 173 | 70 | 20 | 4(1+3) | 198 | 450 | 20 | 115 | 0.89A | 38 |
| 34074-30 | KESL-2050 | 200 | 500 | 173 | 70 | 20 | 4(1+3) | 198 | 500 | 20 | 115 | 1.10A | 42 |
| 34074-35 | KESL-2060 | 200 | 600 | 173 | 70 | 20 | 4(1+3) | 198 | 600 | 20 | 115 | 1.30A | 51 |
| 34074-40 | KESL-2550 | 250 | 500 | 225 | 85 | 27 | 4(4+3) | 248 | 500 | 20 | 115 | 1.36A | 62 |
| 34074-45 | KESL-3060 | 300 | 600 | 273 | 85 | 27 | 4(1+3) | 298 | 600 | 20 | 115 | 1.20A | 98 |
| 34074-50 | KESL-3070 | 300 | 700 | 273 | 85 | 27 | 4(1+3) | 298 | 700 | 20 | 115 | 1.50A | 114 |
| 34074-55 | KESL-3090 | 300 | 900 | 273 | 85 | 27 | 4(1+3) | 298 | 900 | 20 | 115 | 2.20A | 146 |
| 34074-60 | KESL-4060 | 400 | 600 | 373 | 85 | 27 | 4(4+3) | 398 | 600 | 20 | 115 | 1.75A | 135 |
| 34074-65 | KESL-4080 | 400 | 800 | 373 | 85 | 27 | 4(1+3) | 398 | 800 | 20 | 115 | 2.65A | 180 |
