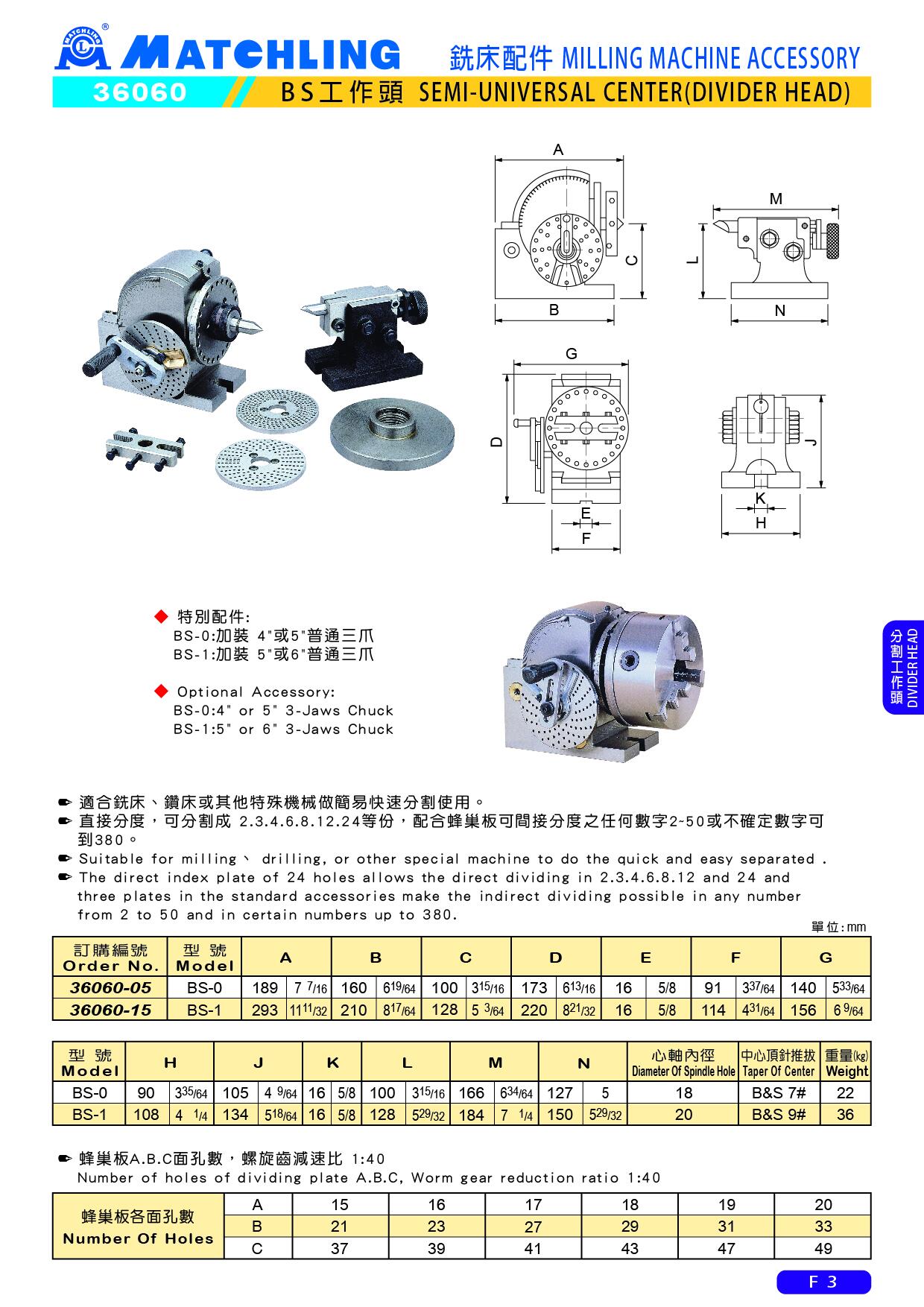

36060 SEMI-UNIVERSAL CENTER(DIVIDER HEAD)
● Suitable for milling drilling, or other special machine to do the quick and easy separated.
● The direct index plate of 24 holes allows the direct dividing in 2.3.4.6.8.12 and 24 and three plates in the standard accessories make the indirect dividing possible in any number from 2 to 50 and in certain numbers up to 380.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | |||||||
| 36060-05 | BS-0 | 189 | 7 7 /16 | 160 | 6 19 /64 | 100 | 3 15 /16 | 173 | 6 13 /16 | 16 | 5/8 | 91 | 3 37 /64 | 140 | 5 33 /64 |
| 36060-15 | BS-1 | 293 | 11 11 /32 | 210 | 8 17 /64 | 128 | 5 3 /64 | 220 | 8 21 /32 | 16 | 5/8 | 114 | 4 31 /64 | 156 | 6 9 /64 |
| Model | H | J | K | L | M | N | Diameter Of Spindle Hole | Taper Of Center | Weight (kg) | ||||||
| BS-0 | 90 | 3 35 /64 | 105 | 4 9 /64 | 16 | 5/8 | 100 | 3 15 /16 | 166 | 6 34 /64 | 127 | 5 | 18 | B&S 7# | 22 |
| BS-1 | 108 | 4 1 /4 | 134 | 5 18 /64 | 16 | 5/8 | 128 | 5 29 /32 | 184 | 7 1 /4 | 150 | 5 29/32 | 20 | B&S 9# | 36 |
•Number of holes of dividing plate A.B.C, Worm gear reduction ratio 1:40
| Number Of Holes | A | 15 | 16 | 17 | 18 | 19 | 20 |
| B | 21 | 23 | 27 | 29 | 31 | 33 | |
| C | 37 | 39 | 41 | 43 | 47 | 49 |
