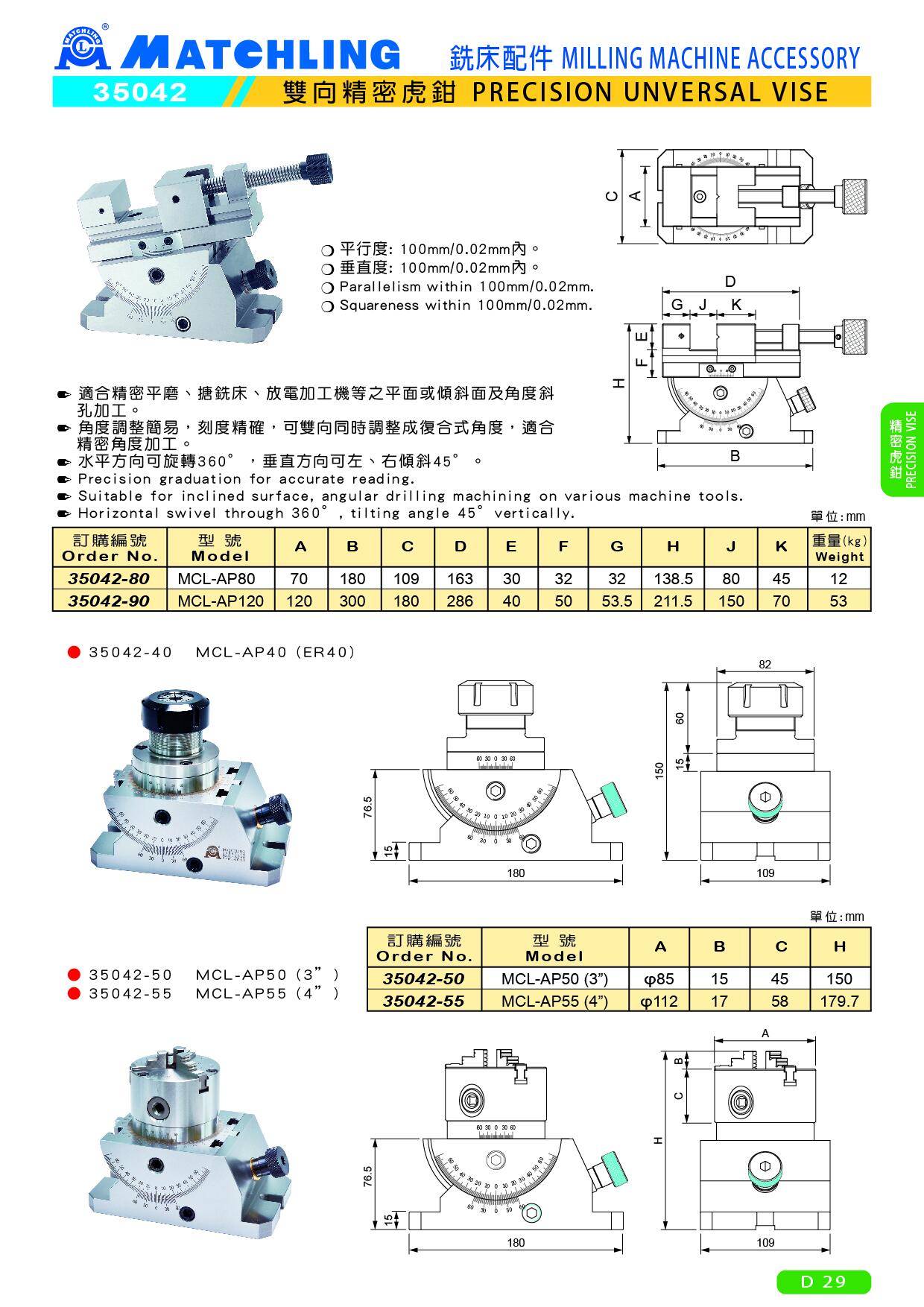

35042 PRECISION UNVERSAL VISE
The angle vise is used for gauge-precise machining and checking of surfaces and angle surfaces. The two-dimensional angle adjustment takes place via vernier scales and fine adjustment.
● Precision graduation for accurate reading.
● Horizontal swivel through 360°, tilting angle 45°vertically.
● Suitable for inclined surface, angular drilling machining on various machine tools.
● Parallelism within 100mm/0.02mm.
● Squareness within 100mm/0.02mm.
unit：mm
| Order No | Model | A | B | C | D | E | F | G | H | J | K | Weight (kg) |
| 35042-80 | MCL-AP80 | 70 | 180 | 109 | 163 | 30 | 32 | 32 | 138.5 | 80 | 45 | 12 |
| 35042-90 | MCL-AP120 | 120 | 300 | 180 | 286 | 40 | 50 | 53.5 | 211.5 | 150 | 70 | 53 |
