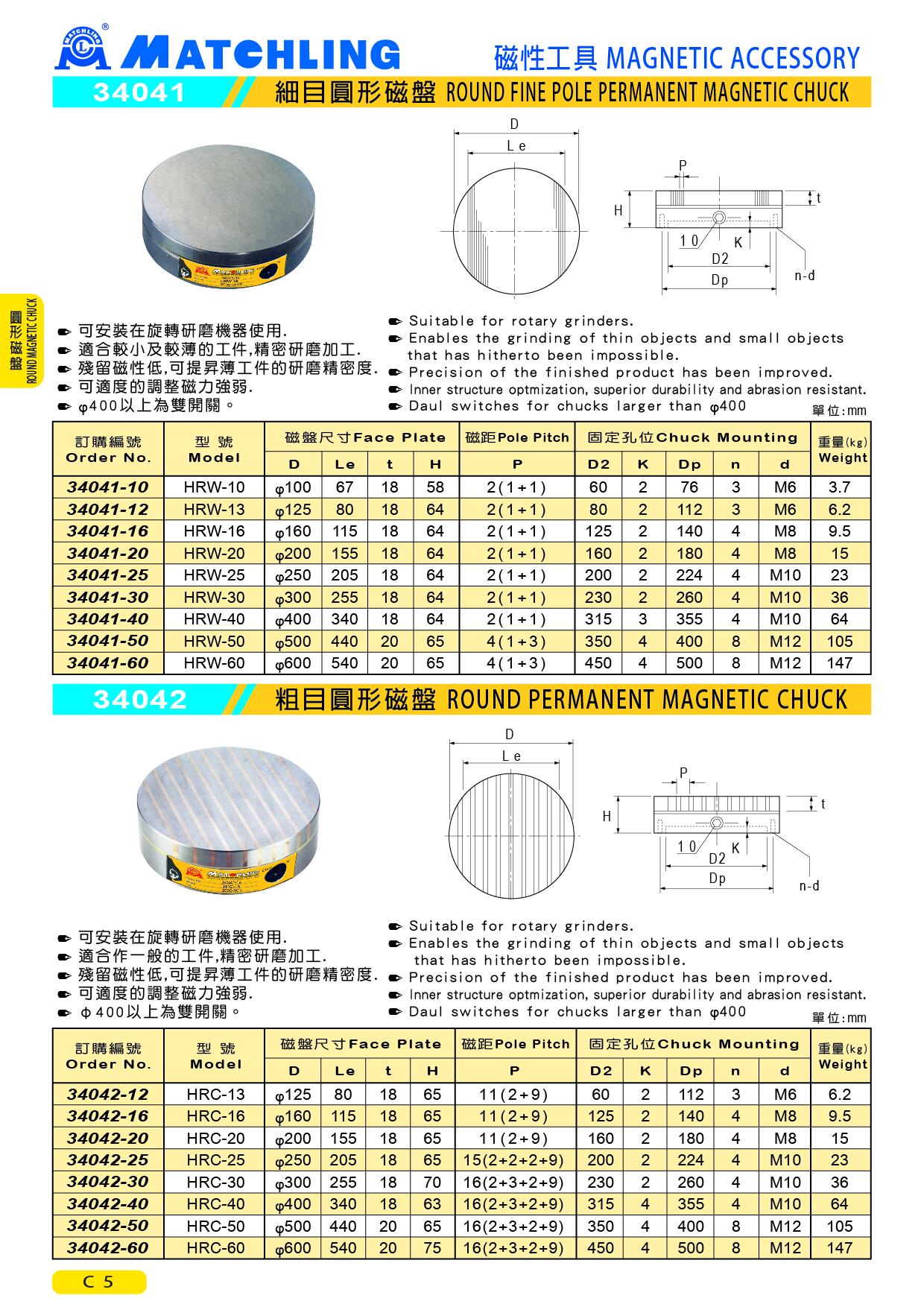

34042 ROUND PERMANENT MAGNETIC CHUCK
● Suitable for rotary grinders.
● Enables the grinding of thin objects and small objects that has hitherto been impossible.
● Precision of the finished product has been improved.
● Inner structure optmization, superior durability and abrasion resistant.
● Daul switches for chucks larger than φ400.
unit: mm
| Order No. | Mode | Face Plate | Pole Pitch | Chuck Mounting | Weight (kg) | |||||||
| D | Le | t | H | P | D2 | K | Dp | n | d | |||
| 34042-12 | HRC-13 | φ125 | 80 | 18 | 65 | 11 (2+9) | 60 | 2 | 112 | 3 | M6 | 6.2 |
| 34042-16 | HRC-16 | φ160 | 115 | 18 | 65 | 11 (2+9) | 125 | 2 | 140 | 4 | M8 | 9.5 |
| 34042-20 | HRC-20 | φ200 | 155 | 18 | 65 | 11 (2+9) | 160 | 2 | 180 | 4 | M8 | 15 |
| 34042-25 | HRC-25 | φ250 | 205 | 18 | 65 | 15 (2+2+2+9) | 200 | 2 | 224 | 4 | M10 | 23 |
| 34042-30 | HRC-30 | φ300 | 255 | 18 | 70 | 16 (2+3+2+9) | 230 | 2 | 260 | 4 | M10 | 36 |
| 34042-40 | HRC-40 | φ400 | 340 | 18 | 63 | 16 (2+3+2+9) | 315 | 4 | 355 | 4 | M10 | 64 |
| 34042-50 | HRC-50 | φ500 | 440 | 20 | 65 | 16 (2+3+2+9) | 350 | 4 | 400 | 8 | M12 | 105 |
| 34042-60 | HRC-60 | φ600 | 540 | 20 | 75 | 16 (2+3+2+9) | 450 | 4 | 500 | 8 | M12 | 147 |
