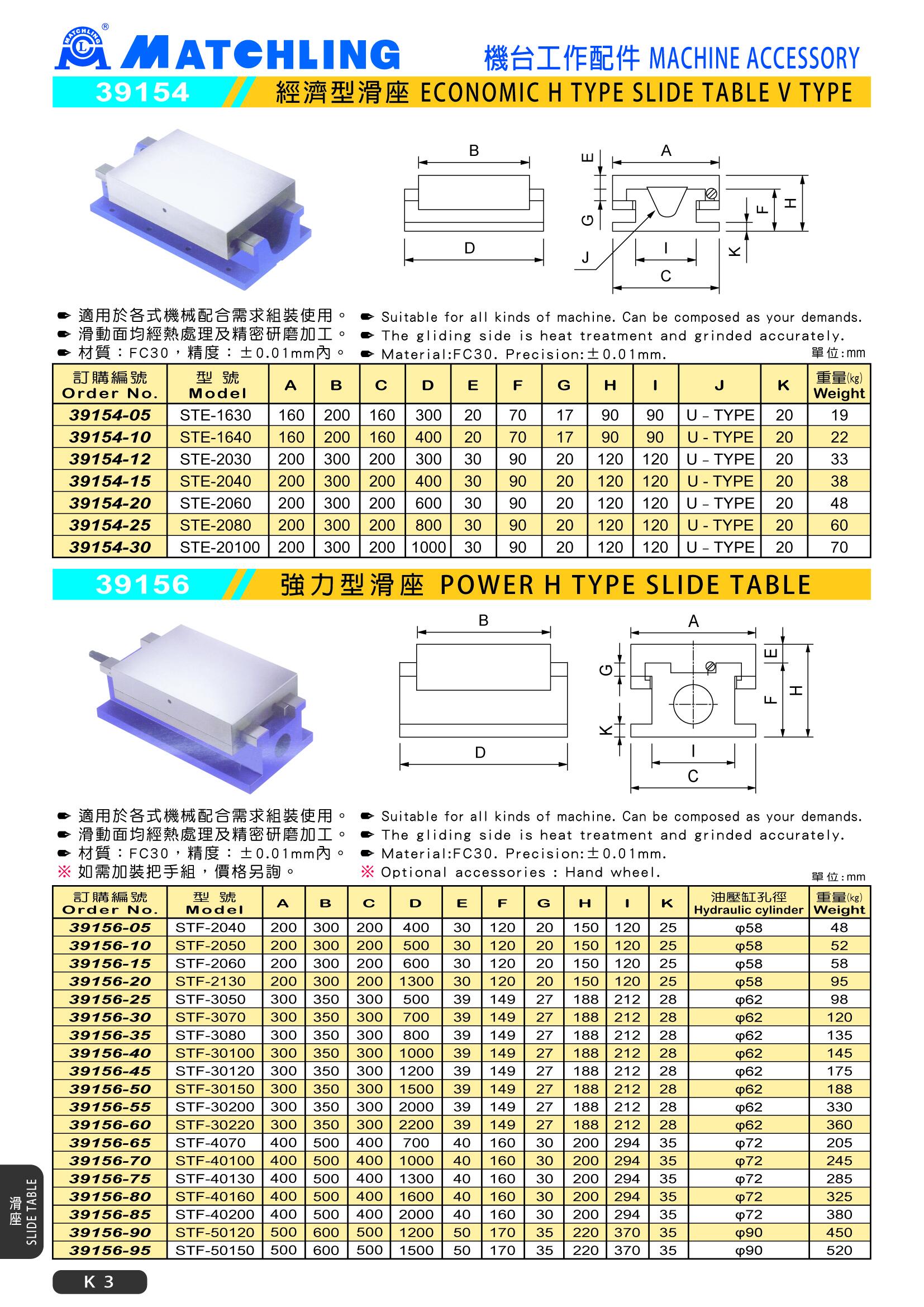

39154 ECONOMIC H TYPE SLIDE TABLE V TYPE
● Suitable for all kinds of machine. Can be composed as your demands.
● Material:FC30. Precision:±0.01mm.
● The gliding side is heat treatment and grinded accurately.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | I | J | K | Stroke | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39154-05 | STE-1630 | 160 | 200 | 160 | 300 | 20 | 70 | 17 | 90 | 90 | U-TYPE | 20 | 100 | 19 |
| 39154-10 | STE-1640 | 160 | 200 | 160 | 400 | 20 | 70 | 17 | 90 | 90 | U-TYPE | 20 | 200 | 23 |
| 39154-12 | STE-2030 | 200 | 300 | 200 | 300 | 30 | 90 | 20 | 120 | 120 | U-TYPE | 20 | 50 | 34 |
| 39154-15 | STE-2040 | 200 | 300 | 200 | 400 | 30 | 90 | 20 | 120 | 120 | U-TYPE | 20 | 100 | 40 |
| 39154-20 | STE-2060 | 200 | 300 | 200 | 600 | 30 | 90 | 20 | 120 | 120 | U-TYPE | 20 | 300 | 48 |
| 39154-25 | STE-2080 | 200 | 300 | 200 | 800 | 30 | 90 | 20 | 120 | 120 | U-TYPE | 20 | 500 | 58 |
| 39154-30 | STE-20100 | 200 | 300 | 200 | 1000 | 30 | 90 | 20 | 120 | 120 | U-TYPE | 20 | 700 | 69 |
