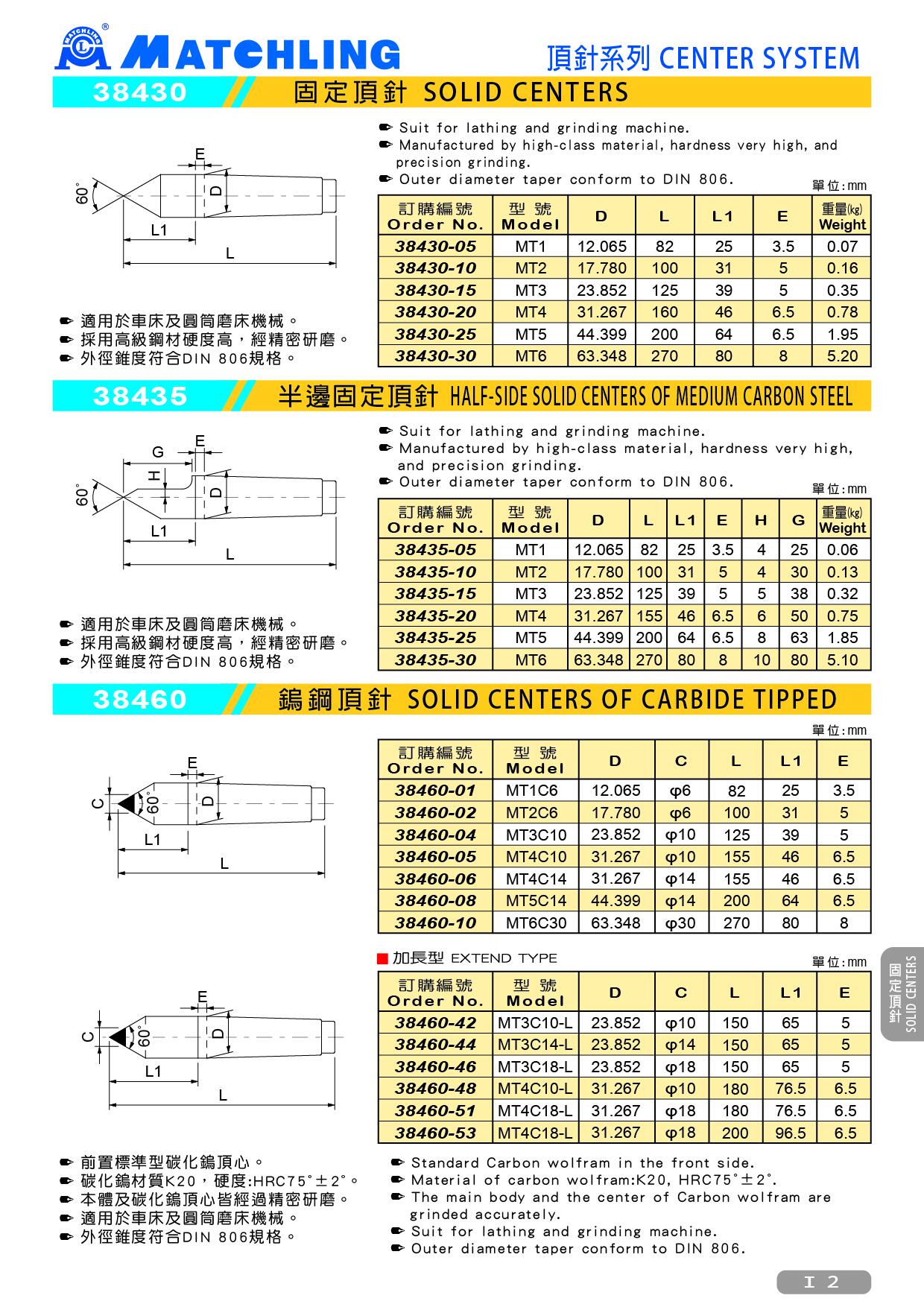

38435 HALF-SIDE SOLID CENTERS OF MEDIUM CARBON STEEL
● Suit for lathing and grinding machine.
● Manufactured by high-class material, hardness very high, and precision grinding.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | D | L | L1 | E | H | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 38435-05 | MT1 | 12.065 | 82 | 25 | 3.5 | 4 | 25 | 0.06 |
| 38435-10 | MT2 | 17.780 | 100 | 31 | 5 | 4 | 30 | 0.13 |
| 38435-15 | MT3 | 23.852 | 125 | 39 | 5 | 5 | 38 | 0.32 |
| 38435-20 | MT4 | 31.267 | 155 | 46 | 6.5 | 6 | 50 | 0.75 |
| 38435-25 | MT5 | 44.399 | 200 | 64 | 6.5 | 8 | 63 | 1.85 |
| 38435-30 | MT6 | 63.348 | 270 | 80 | 8 | 10 | 80 | 5.1 |
