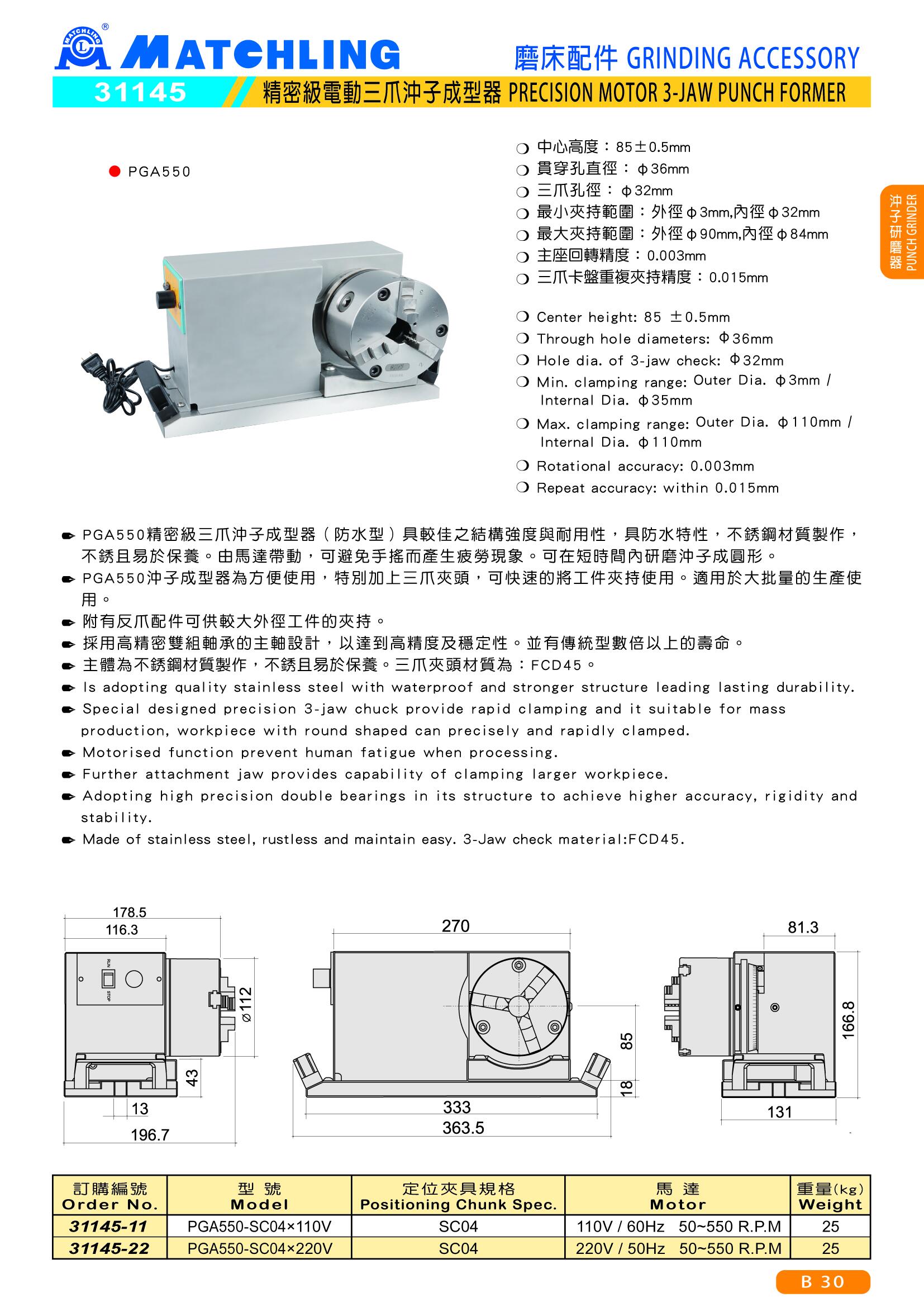

31145 PRECISION MOTOR 3-JAW PUNCH FORMER
● Is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
● Special designed precision 3-jaw chuck provide rapid clamping and it suitable for mass production, work piece with round shaped can precisely and rapidly clamped.
● Motorised function prevent human fatigue when processing.
● Further attachment jaw provides capability of clamping larger workpiece.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● 3-Jaw is not made of stainless steel.
■ Specifications:
● Center height: 85 ±0.5mm
● Through hole diameters: φ36mm
● Hole dia. of 3-jaw check: φ32mm
● Min. clamping range: Outer Dia. φ3mm / Internal Dia. φ35mm
● Max. clamping range: Outer Dia. φ110mm / Internal Dia. φ110mm
● Rotational accuracy: 0.003mm
● Repeat accuracy: within 0.015mm
unit：mm
| Order No. | Model | Positioning Chunk Spec・ | Motor | Weight (kg) |
| 31145-11 | PGA550-SC04x110V | SC04 | 110V / 60Hz 50-550 R.P.M | 25 |
| 31145-22 | PGA550-SC04x220V | SC04 | 220V / 50Hz 50-550 R.P.M | 25 |
