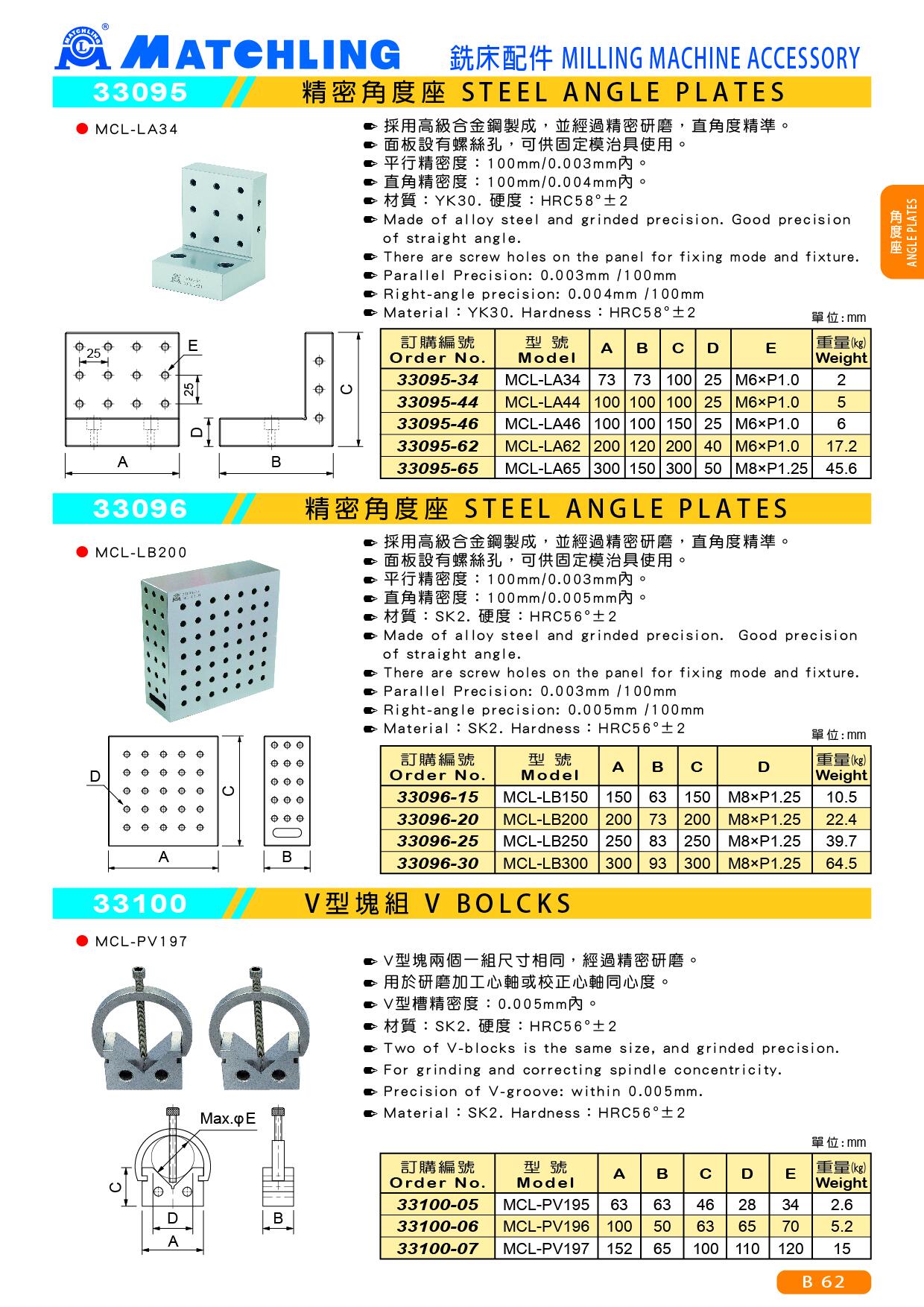

33100 V BOLCKS
● Two of V-blocks is the same size, and grinded precision.
● For grinding and correcting spindle concentricity.
● Precision of V-groove: within 0.005mm.
● Material：SK2. Hardness：HRC56°±2
unit：mm
| Order No | Model | A | B | C | D | E | Weight (kg) |
| 33100-05 | MCL-PV195 | 63 | 63 | 46 | 28 | 34 | 2.6 |
| 33100-06 | MCL-PV196 | 100 | 50 | 63 | 65 | 70 | 5.2 |
| 33100-07 | MCL-PV197 | 152 | 65 | 100 | 110 | 120 | 15 |
