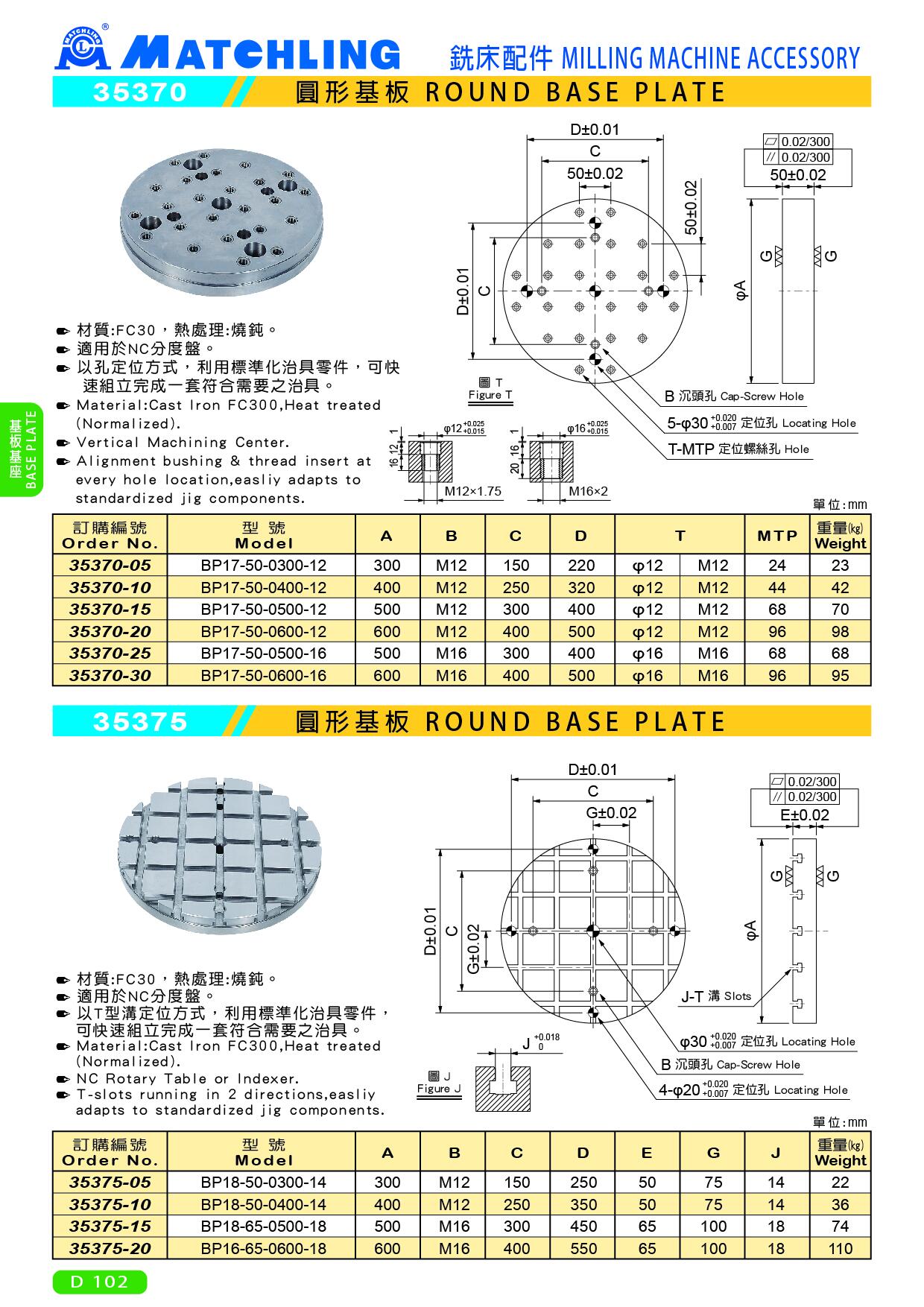

35370 ROUND BASE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● NC Rotary Table or Indexer.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | G | MTP | Weight (kg) | |
| 35370-05 | BP17-50-0300-12 | 300 | M12 | 150 | 220 | φ12 | M12 | 24 | 23 |
| 35370-10 | BP17-50-0400-12 | 400 | M12 | 250 | 320 | φ12 | M12 | 44 | 42 |
| 35370-15 | BP17-50-0500-12 | 500 | M12 | 300 | 400 | φ12 | M12 | 68 | 70 |
| 35370-20 | BP17-50-0600-12 | 600 | M12 | 400 | 500 | φ12 | M12 | 96 | 98 |
| 35370-25 | BP17-50-0500-16 | 500 | M16 | 300 | 400 | φ16 | M16 | 68 | 68 |
| 35370-30 | BP17-50-0600-16 | 600 | M16 | 400 | 500 | φ16 | M16 | 96 | 95 |
