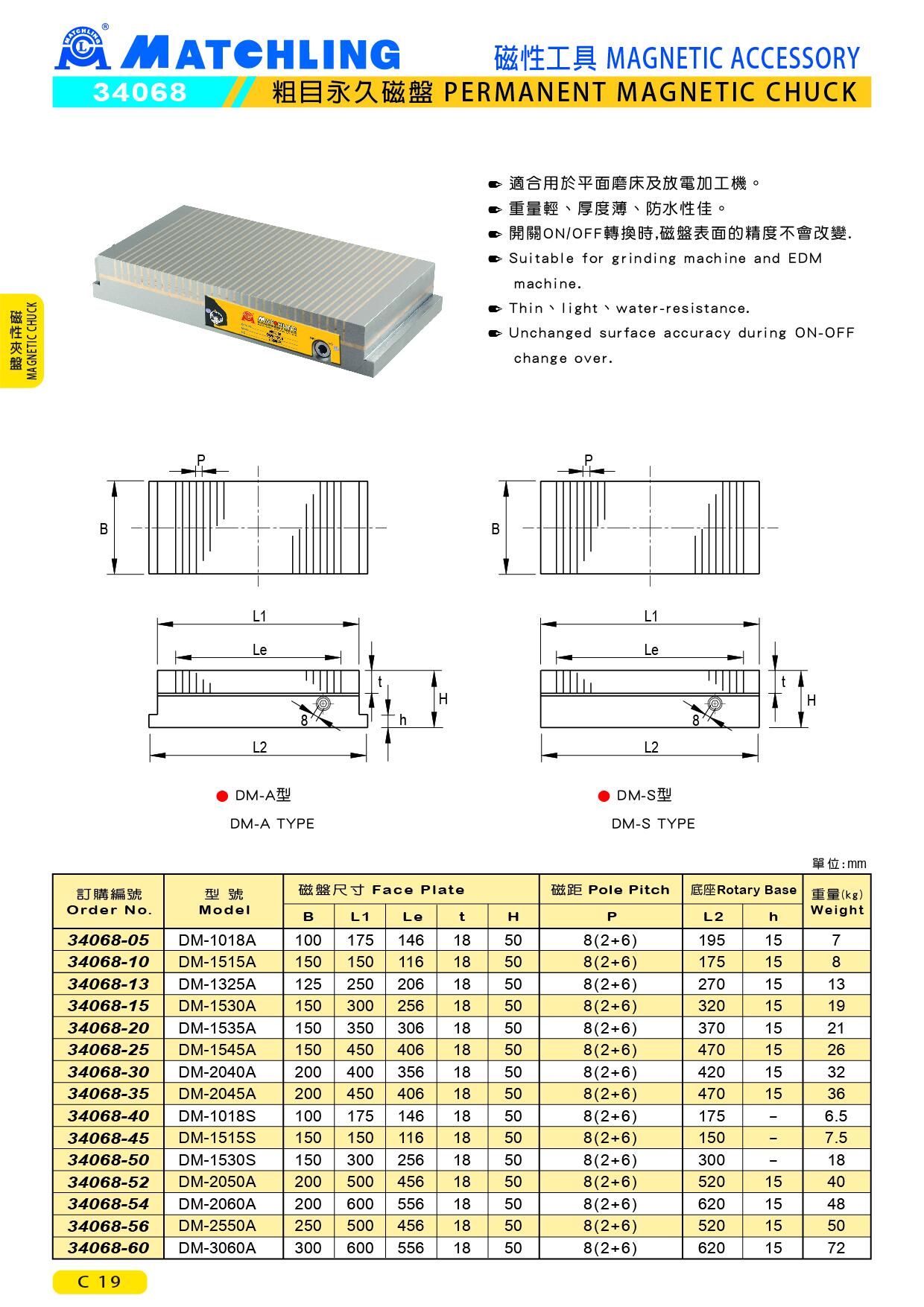

34068 PERMANENT MAGNETIC CHUCK
● Suitable for grinding machine and EDM machine.
● Thin、light、water-resistance.
● Unchanged surface accuracy during ON-OFF change over.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Weight (kg) | |||||
| B | L1 | Le | t | H | P | L2 | h | |||
| 34068-05 | DM-1018A | 100 | 175 | 146 | 18 | 50 | 8(2+6) | 195 | 15 | 7 |
| 34068-10 | DM-1515A | 150 | 150 | 116 | 18 | 50 | 8(2+6) | 175 | 15 | 8 |
| 34068-13 | DM-1325A | 125 | 250 | 206 | 18 | 50 | 8(2+6) | 270 | 15 | 13 |
| 34068-15 | DM-1530A | 150 | 300 | 256 | 18 | 50 | 8(2+6) | 320 | 15 | 19 |
| 34068-20 | DM-1535A | 150 | 350 | 306 | 18 | 50 | 8(2+6) | 370 | 15 | 21 |
| 34068-25 | DM-1545A | 150 | 450 | 406 | 18 | 50 | 8(2+6) | 470 | 15 | 26 |
| 34068-30 | DM-2040A | 200 | 400 | 356 | 18 | 50 | 8(2+6) | 420 | 15 | 32 |
| 34068-35 | DM-2045A | 200 | 450 | 406 | 18 | 50 | 8(2+6) | 470 | 15 | 36 |
| 34068-40 | DM-1018S | 100 | 175 | 146 | 18 | 50 | 8(2+6) | 175 | - | 6.5 |
| 34068-45 | DM-1515S | 150 | 150 | 116 | 18 | 50 | 8(2+6) | 150 | - | 7.5 |
| 34068-50 | DM-1530S | 150 | 300 | 256 | 18 | 50 | 8(2+6) | 300 | - | 18 |
| 34068-52 | DM-2050A | 200 | 500 | 456 | 18 | 50 | 8(2+6) | 520 | 15 | 40 |
| 34068-54 | DM-2060A | 200 | 600 | 556 | 18 | 50 | 8(2+6) | 620 | 15 | 48 |
| 34068-56 | DM-2550A | 250 | 500 | 456 | 18 | 50 | 8(2+6) | 520 | 15 | 50 |
| 34068-60 | DM-3060A | 300 | 600 | 556 | 18 | 50 | 8(2+6) | 620 | 15 | 72 |
