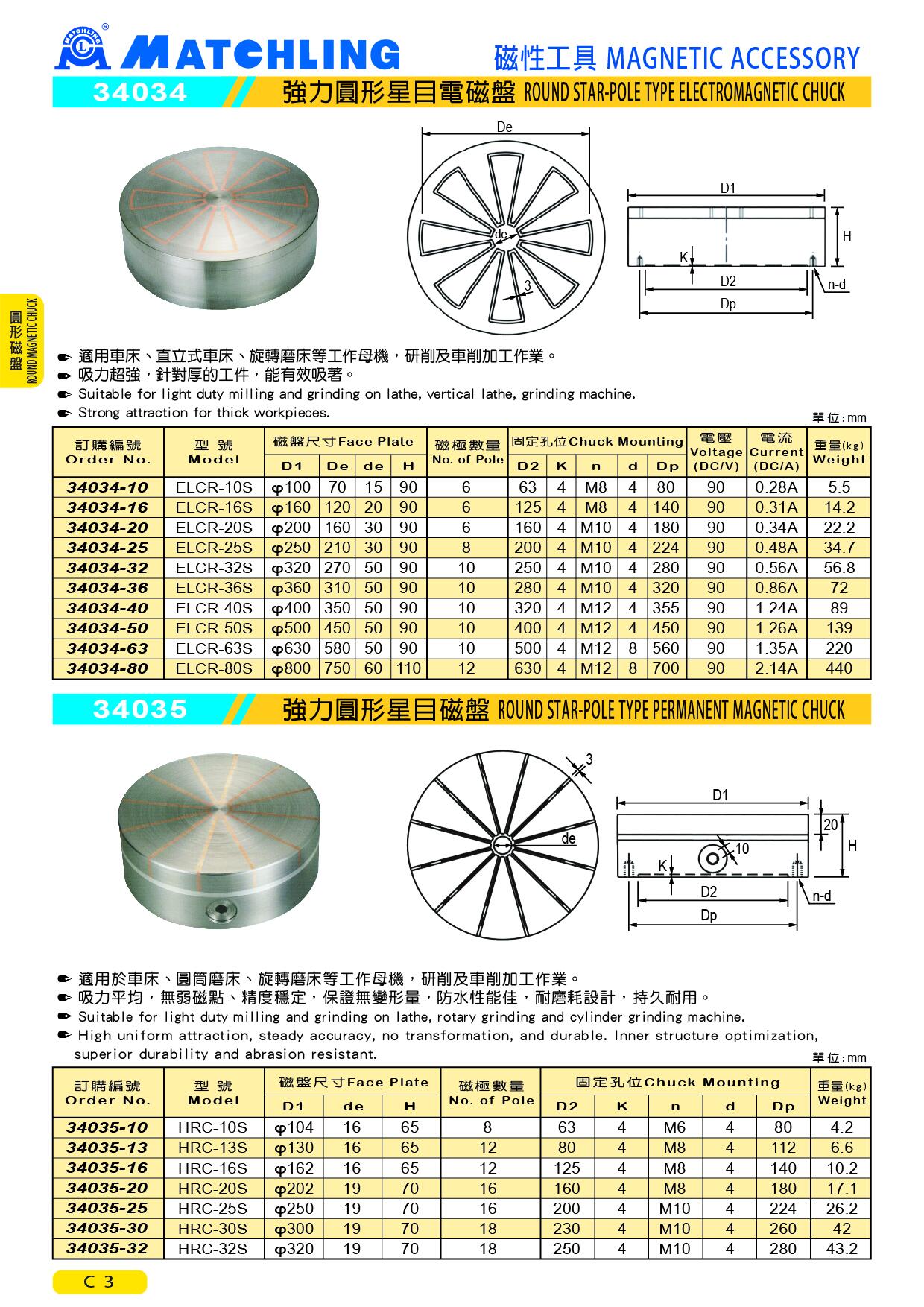

34034 ROUND STAR-POLE TYPE ELECTROMAGNETIC CHUCK
● Suitable for light duty milling and grinding on lathe, vertical lathe, grinding machine.
● Strong attraction for thick workpieces.
unit：mm
| Order No. | Model | Face Plate | No. of Pole | Chuck Mounting | Voltage (DC/V) | Current (DC/A) | Weight (kg) | |||||||
| D1 | De | de | H | D2 | K | n | d | Dp | ||||||
| 34034-10 | ELCR-10S | φ100 | 70 | 15 | 90 | 6 | 63 | 4 | M8 | 4 | 80 | 90 | 0.28A | 5.5 |
| 34034-16 | ELCR-16S | φ160 | 120 | 20 | 90 | 6 | 125 | 4 | M8 | 4 | 140 | 90 | 0.31A | 14.2 |
| 34034-20 | ELCR-20S | φ200 | 160 | 30 | 90 | 6 | 160 | 4 | M10 | 4 | 180 | 90 | 0.34A | 22.2 |
| 34034-25 | ELCR-25S | φ250 | 210 | 30 | 90 | 8 | 200 | 4 | M10 | 4 | 224 | 90 | 0.48A | 34.7 |
| 34034-32 | ELCR-32S | φ320 | 270 | 50 | 90 | 10 | 250 | 4 | M10 | 4 | 280 | 90 | 0.56A | 56.8 |
| 34034-36 | ELCR-36S | φ360 | 310 | 50 | 90 | 10 | 280 | 4 | M10 | 4 | 320 | 90 | 0.86A | 72 |
| 34034-40 | ELCR-40S | φ400 | 350 | 50 | 90 | 10 | 320 | 4 | M12 | 4 | 355 | 90 | 1.24A | 89 |
| 34034-50 | ELCR-50S | φ500 | 450 | 50 | 90 | 10 | 400 | 4 | M12 | 4 | 450 | 90 | 1.26A | 139 |
| 34034-63 | ELCR-63S | φ630 | 580 | 50 | 90 | 10 | 500 | 4 | M12 | 8 | 560 | 90 | 1.35A | 220 |
| 34034-80 | ELCR-80S | φ800 | 750 | 60 | 110 | 12 | 630 | 4 | M12 | 8 | 700 | 90 | 2.14A | 440 |
