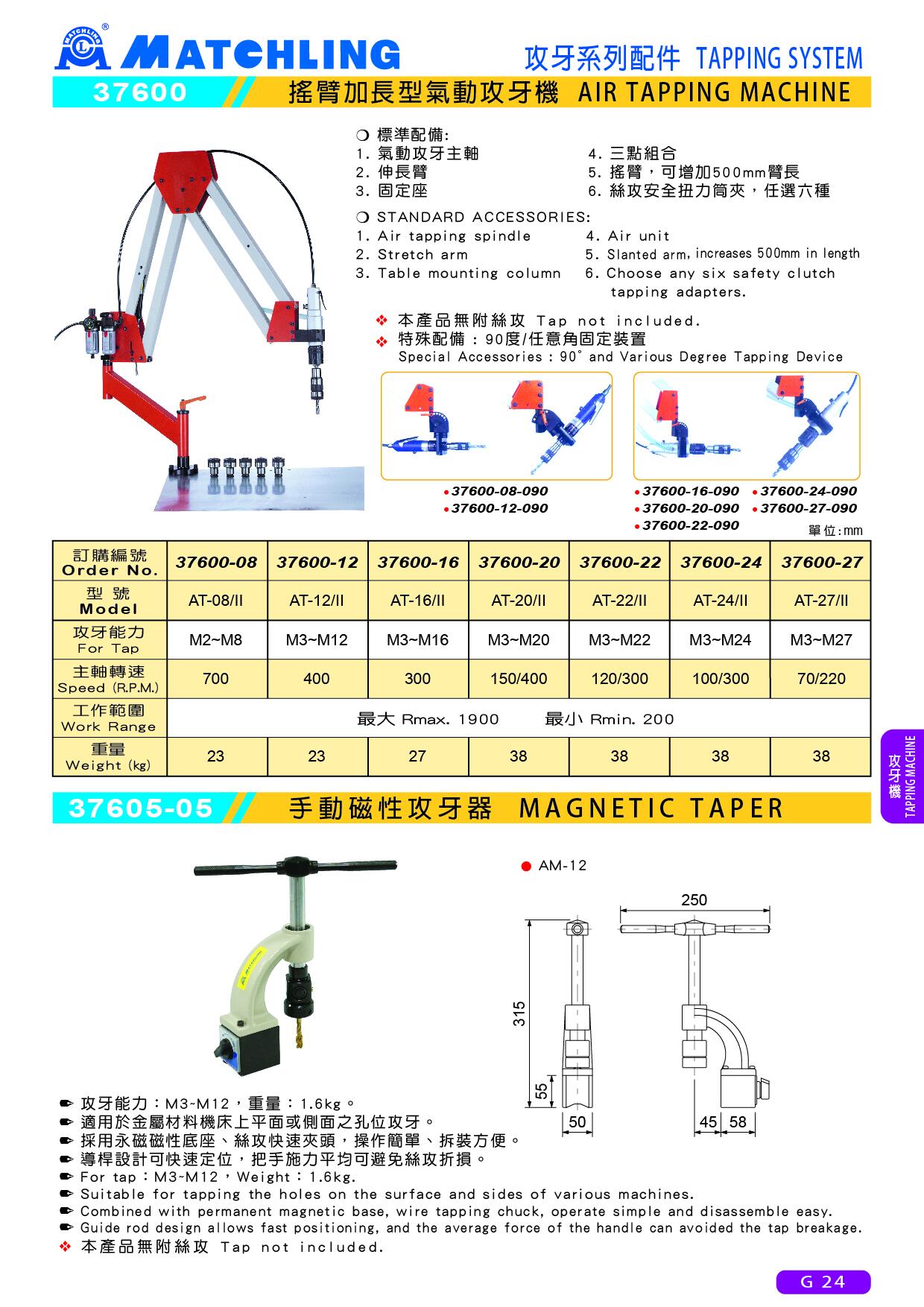

37600 AIR TAPPING MACHINE
● STANDARD ACCESSORIES:
1. Air tapping spindle
2. Stretch arm
3. Table mounting column
4. Air unit
5. Choose any six safety clutch tapping adapters
6. Slanted arm, increases 500mm in length
● Tap not included.
unit：mm
| Order No. | 37600-08 | 37600-12 | 37600-16 | 37600-20 | 37600-22 | 37600-24 | 37600-27 |
| Model | AT-08/II | AT-12/II | AT-16/II | AT-20/II | AT-22/II | AT-24/II | AT-27/II |
| For Tap | M2-M8 | M3-M12 | M3-M16 | M3-M20 | M3-M22 | M3-M24 | M3~M27 |
| Speed (R.P.M.) | 700 | 400 | 300 | 150/400 | 120/300 | 100/300 | 70/220 |
| Work Range | Rmax. 1900 Rm in. 200 | ||||||
| Weight (kg) | 23 | 23 | 27 | 38 | 38 | 38 | 38 |
