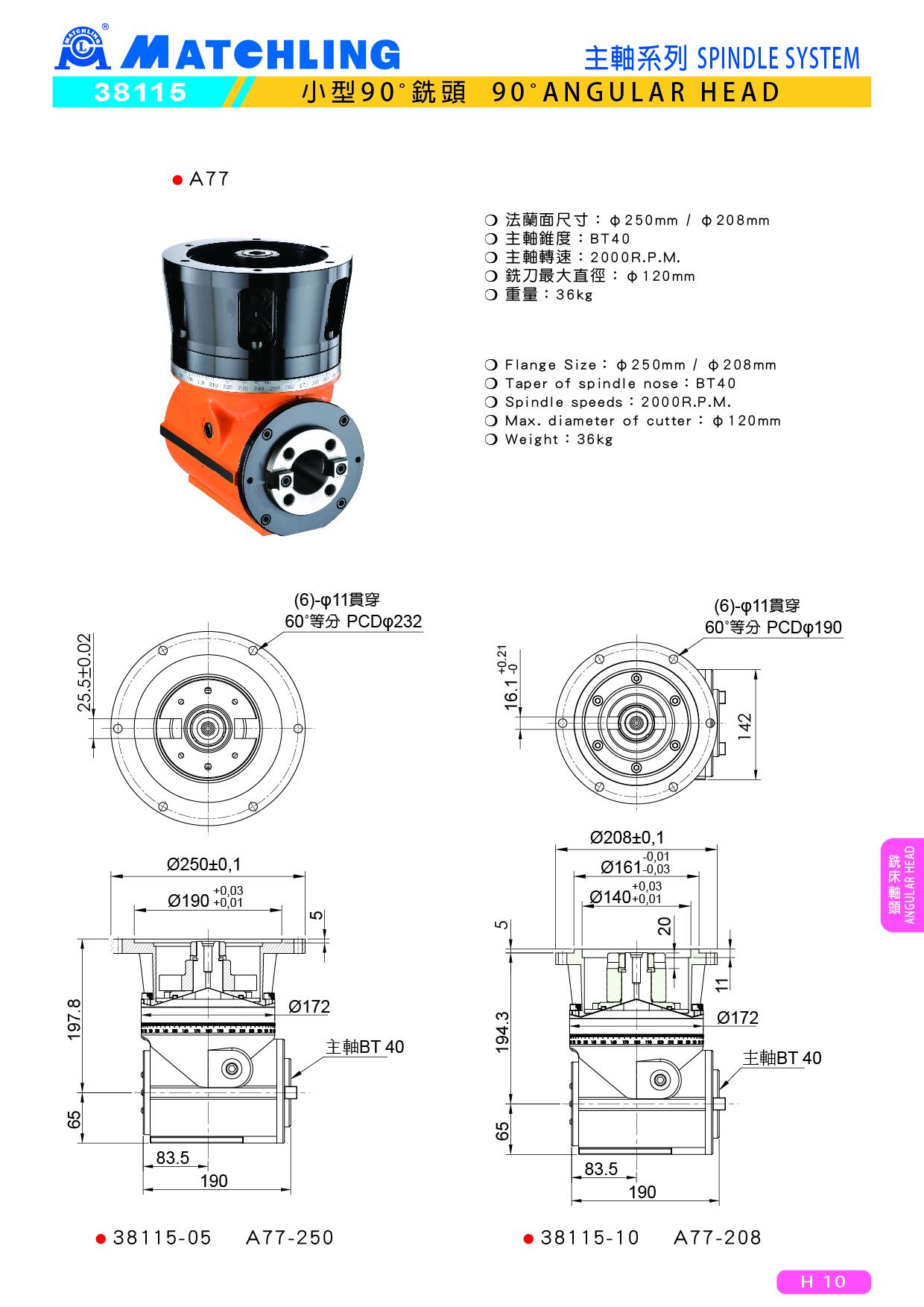

38115 90˚ ANGULAR HEAD
● Flange Size: 250mm / 208mm
● Taper of spindle nose: BT40
● Spindle speeds: 2000R.P.M.
● Max. diameter of cutter 120mm
● Weight: 36kg
