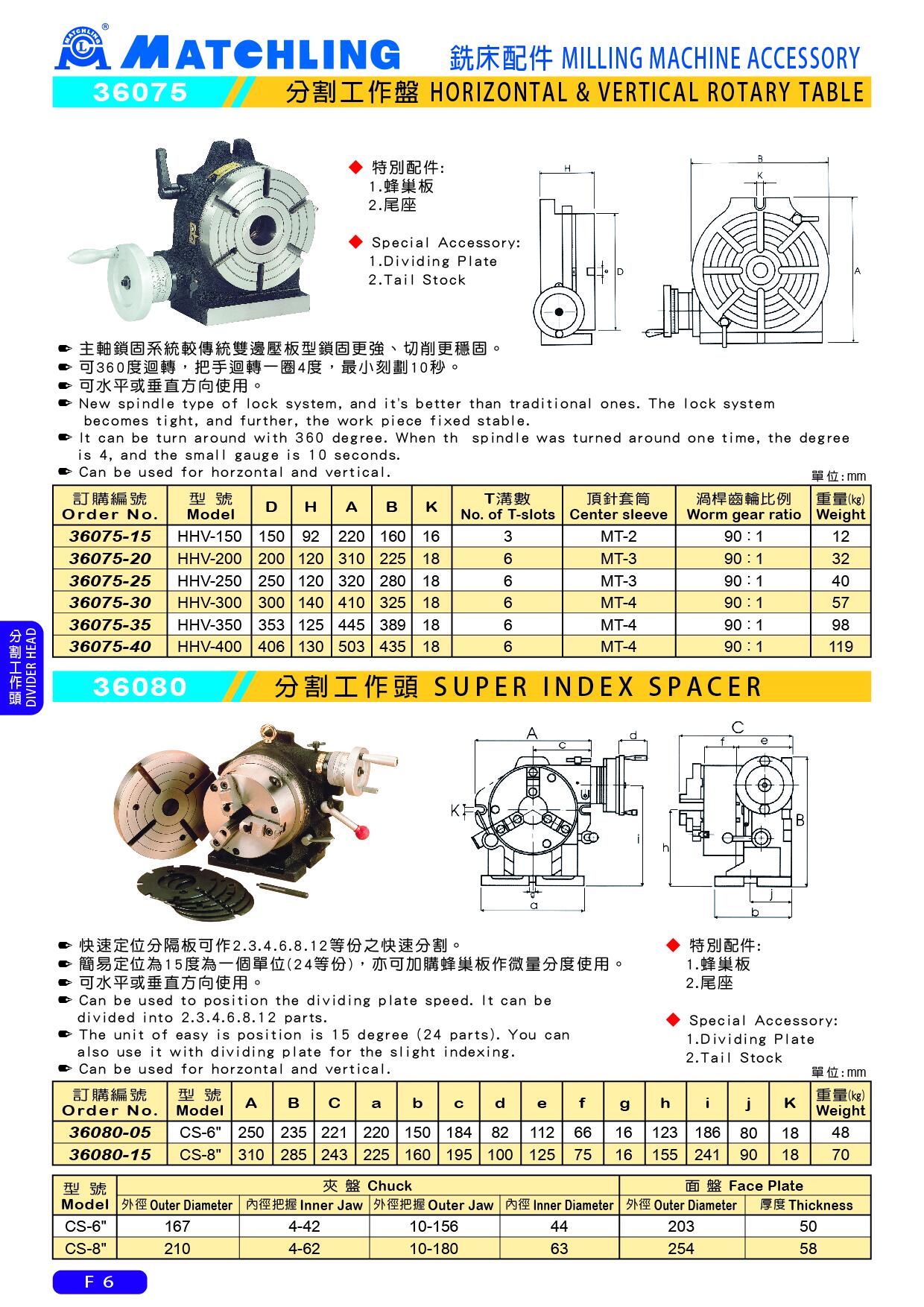

36080 SUPER INDEX SPACER
● Can be used to position the dividing plate speed. It can be divided into 2.3.4.6.8.12 parts.
● The unit of easy is position is 15 degree (24 parts). You can also use it with dividing plate for the slight indexing.
● Can be used for horzontal and vertical.
◆ Special Accessory:
1.Dividing Plate
2.Tail Stock
unit：mm
| Order No. | Model | A | B | C | a | b | c | d | e | f | g | h | i | j | K | Weight (kg) | |||||
| 36080-05 | CS-6n | 250 | 235 | 221 | 220 | 150 | 184 | 82 | 112 | 66 | 16 | 123 | 186 | 80 | 18 | 48 | |||||
| 36080-15 | CS-8n | 310 | 285 | 243 | 225 | 160 | 195 | 100 | 125 | 75 | 16 | 155 | 241 | 90 | 18 | 70 | |||||
unit：mm
| Model | Chuck | Face Plate | ||||
| Outer Diameter | Inner Jaw | Outer Jaw | Inner Diameter | Outer Diameter | Thickness | |
| CS-6" | 167 | 4-42 | 10-156 | 44 | 203 | 50 |
| CS-8" | 210 | 4-62 | 10-180 | 63 | 254 | 58 |
