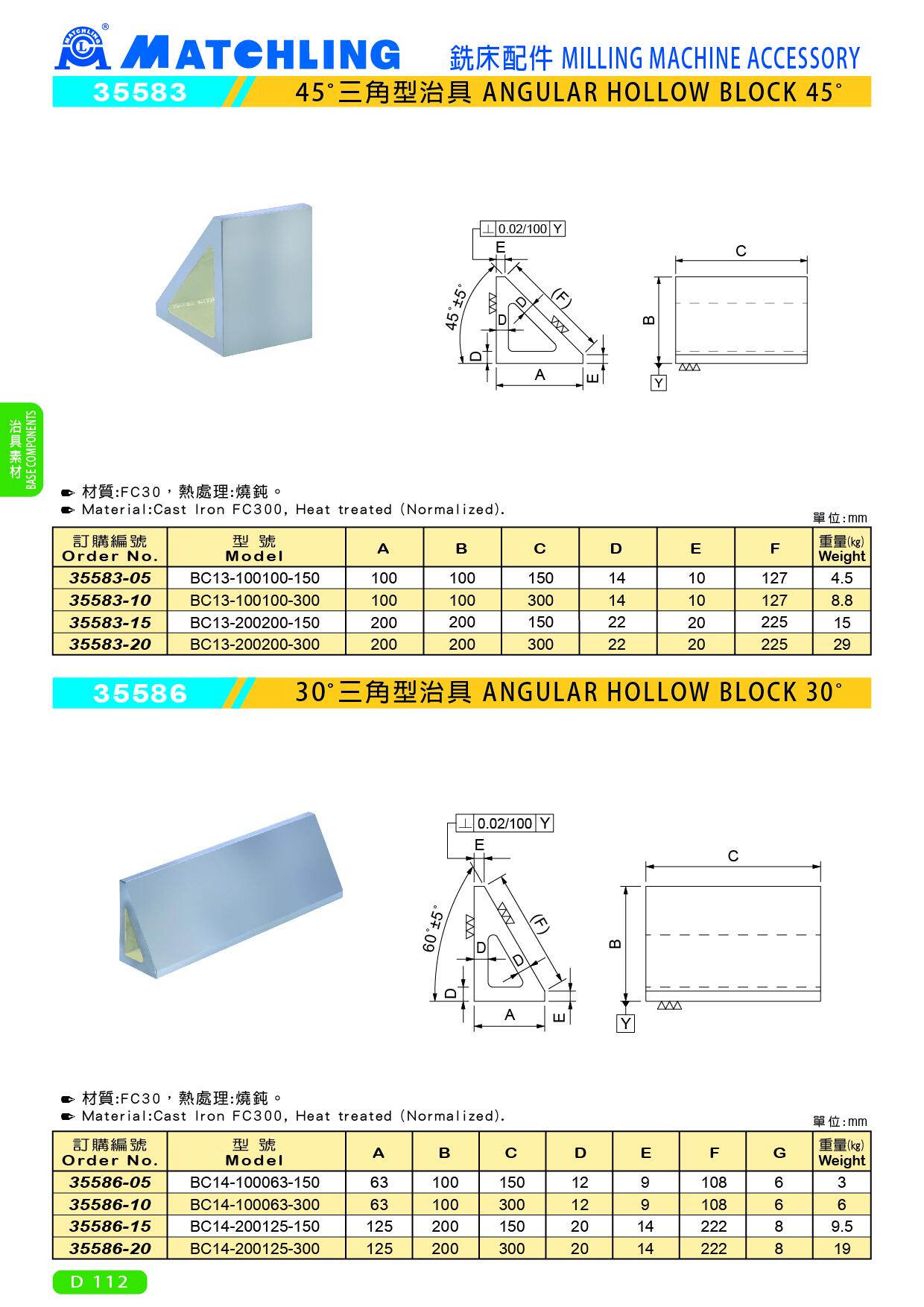

35586 ANGULAR HOLLOW BLOCK 30˚
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | Weight (kg) |
| 35586-05 | BC14-100063-150 | 63 | 100 | 150 | 12 | 9 | 108 | 6 | 3 |
| 35586-10 | BC14-100063-300 | 63 | 100 | 300 | 12 | 9 | 108 | 6 | 6 |
| 35586-15 | BC14-200125-150 | 125 | 200 | 150 | 20 | 14 | 222 | 8 | 9.5 |
| 35586-20 | BC14-200125-300 | 125 | 200 | 300 | 20 | 14 | 222 | 8 | 19 |
