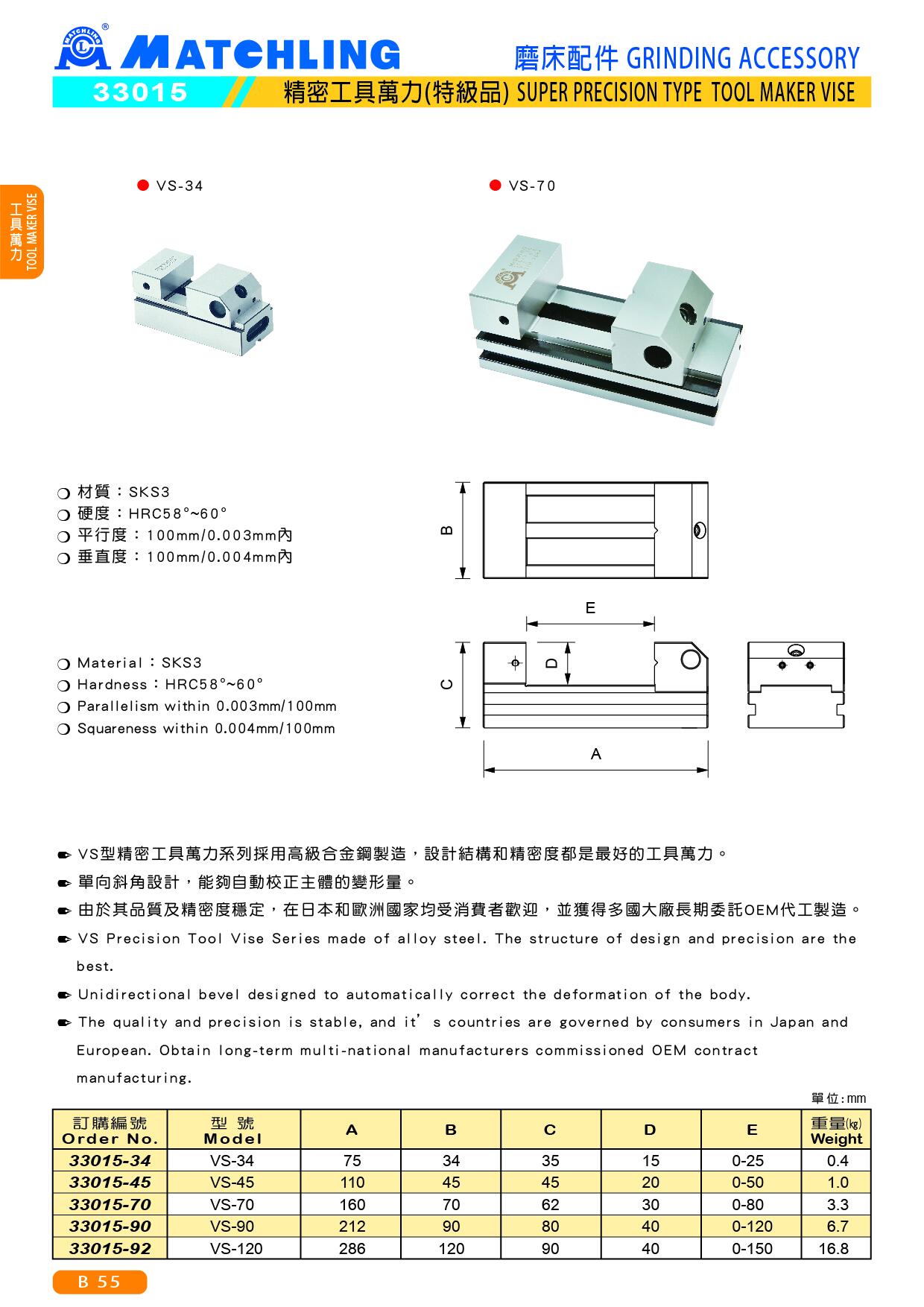

33015 SUPER PRECISION TYPE TOOL MAKER VISE
● VS Precision Tool Vise Series made of alloy steel. The structure of design and precision are the best.
● Unidirectional bevel designed to automatically correct the deformation of the body.
● The quality and precision is stable, and it’s countries are governed by consumers in Japan and European. Obtain long-term multi-national manufacturers commissioned OEM contract manufacturing.
■ Feature:
● Material：SKS3
● Hardness：HRC58°~60°
● Parallelism within 0.003mm/100mm
● Squareness within 0.004mm/100mm
unit：mm
| Order No | Model | A | B | C | D | E | Weight (kg) |
| 33015-34 | VS-34 | 75 | 34 | 35 | 15 | 0-25 | 0.4 |
| 33015-45 | VS-45 | 110 | 45 | 45 | 20 | 0-50 | 1.0 |
| 33015-70 | VS-70 | 160 | 70 | 62 | 30 | 0-80 | 3.3 |
| 33015-90 | VS-90 | 212 | 90 | 80 | 40 | 0-120 | 6.7 |
| 33015-92 | VS-120 | 286 | 120 | 90 | 40 | 0-150 | 16.8 |
