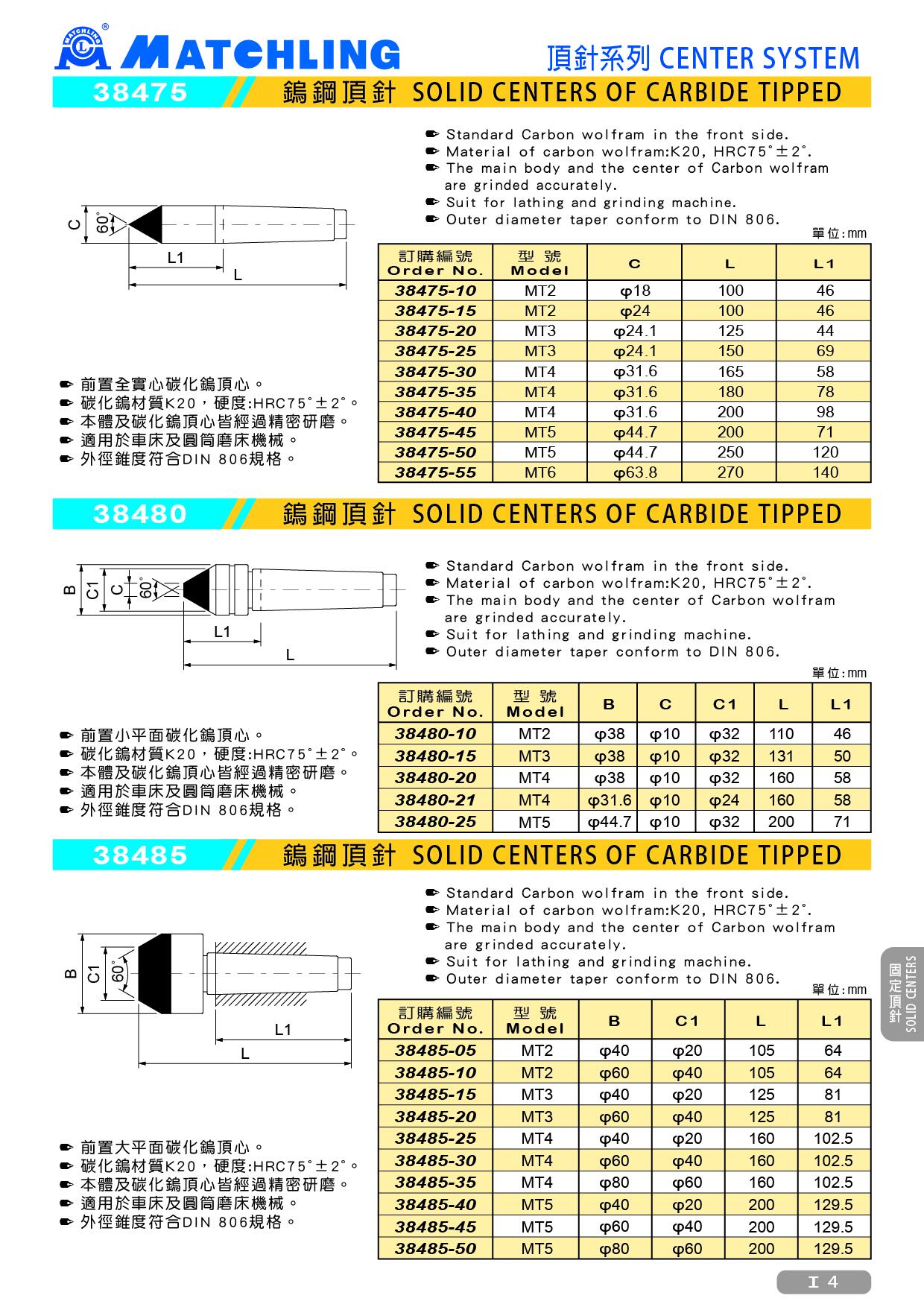

38485 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Suit for lathing and grinding machine.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | B | C1 | L | L1 |
| 38485-05 | MT2 | φ40 | φ20 | 105 | 64 |
| 38485-10 | MT2 | φ60 | φ40 | 105 | 64 |
| 38485-15 | MT3 | φ40 | φ20 | 125 | 81 |
| 38485-20 | MT3 | φ60 | φ40 | 125 | 81 |
| 38485-25 | MT4 | φ60 | φ20 | 160 | 102.5 |
| 38485-30 | MT4 | φ60 | φ40 | 160 | 102.5 |
| 38485-35 | MT4 | φ60 | φ60 | 160 | 102.5 |
| 38485-40 | MT5 | φ60 | φ20 | 200 | 129.5 |
| 38485-45 | MT5 | φ60 | φ40 | 200 | 129.5 |
| 38485-50 | MT5 | φ60 | φ60 | 200 | 129.5 |
