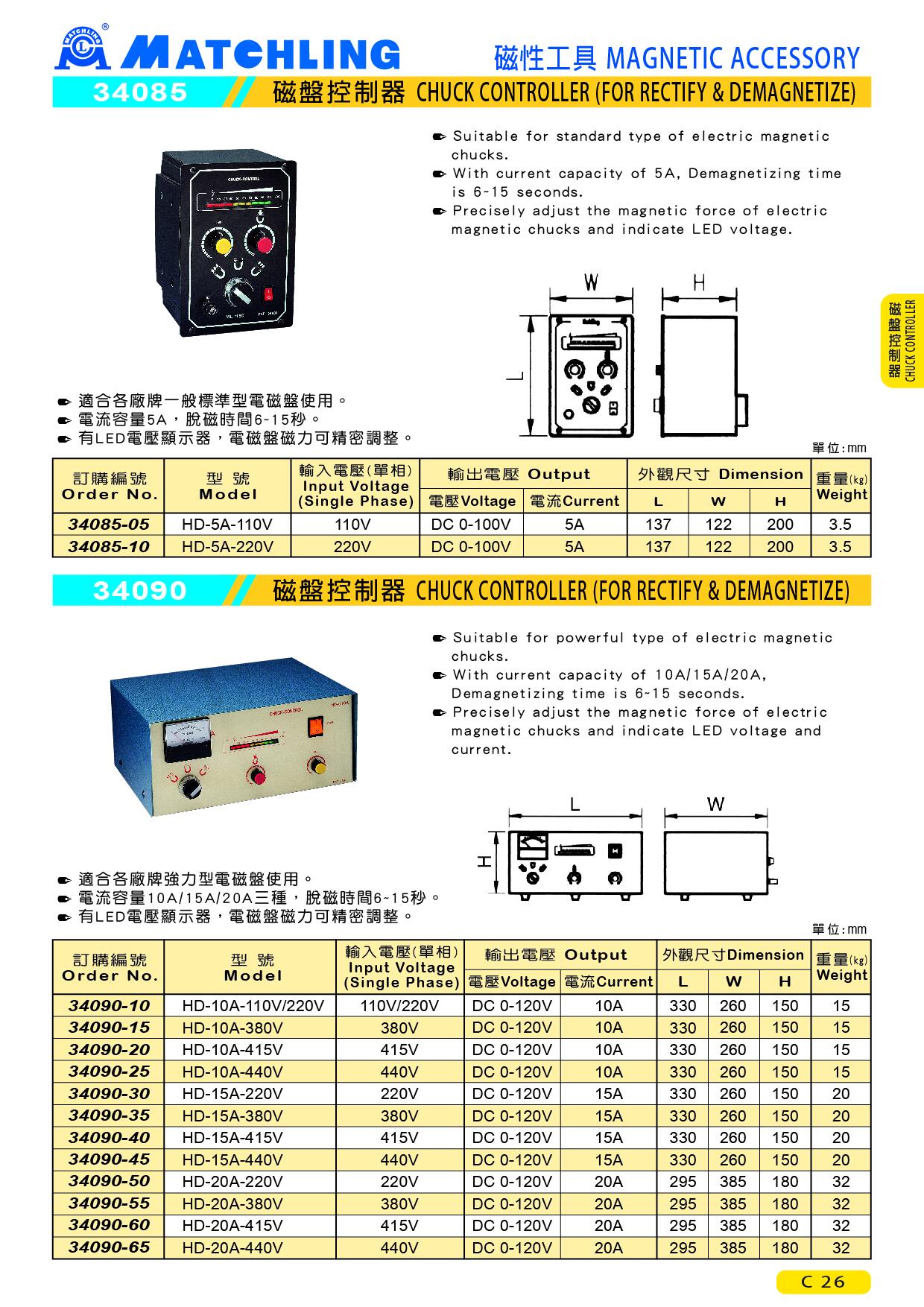

34085 CHUCK CONTROLLER (FOR RECTIFY & DEMAGNETIZE)
● Suitable for standard type of electric magnetic chucks.
● With current capacity of 5A, Demagnetizing time is 6-15 seconds.
● Precisely adjust the magnetic force of electric magnetic chucks and indicate LED voltage.
unit：mm
| Order No. | Model | Input Voltage (Single Phase) | Outp ut | Dimension | Weight (kg) | |||
| Voltage | Current | L | W | H | ||||
| 34085-05 | HD-5A-110V | 110V | DC 0-100V | 5A | 137 | 122 | 200 | 3.5 |
| 34085-10 | HD-5A-220V | 220V | DC 0-100V | 5A | 137 | 122 | 200 | 3.5 |
