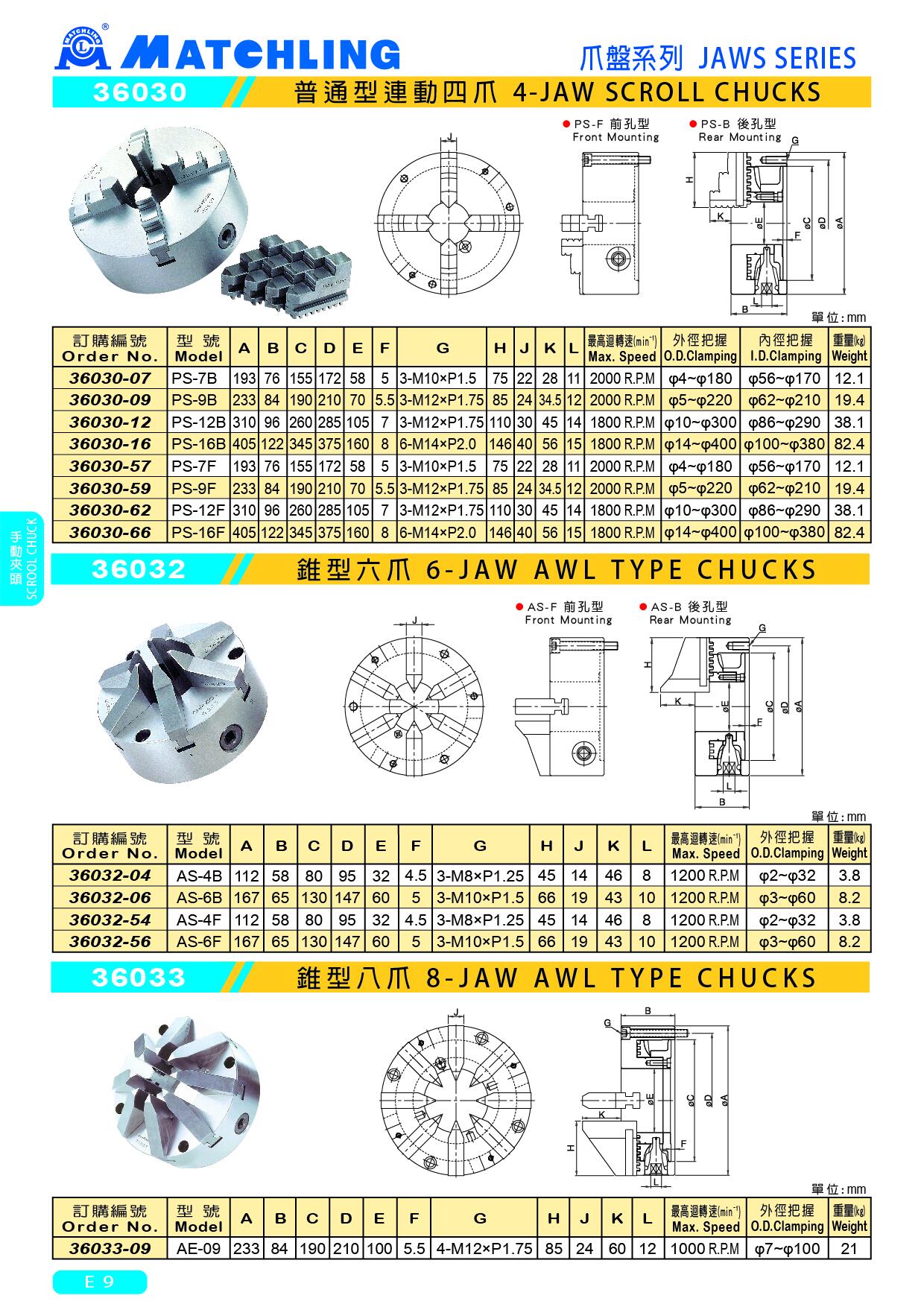

36030 4-JAW SCROLL CHUCKS

Specifications

unit：mm

Order No.	Model	A	B	C	D	E	F	G	H	J	K	L	Max. Speed(min^-1)	O.D.CIamping	I.D.CIamping	Weight (kg)
36030-07	PS-7B	193	76	155	172	58	5	3-M10xP1.5	75	22	28	11	2000 R.P.M	φ4~φ180	φ56~φ170	12.1
36030-09	PS-9B	233	84	190	210	70	5.5	3-M12xP1.75	85	24	34.5	12	2000 R.P.M	φ5~φ220	φ62~φ210	19.4
36030-12	PS-12B	310	96	260	285	105	7	3-M12xP1.75	110	30	45	14	1800 R.P.M	φ10~φ300	φ86~φ290	38.1
36030-16	PS-16B	405	122	345	375	160	8	6-M14xP2.0	146	40	56	15	1800 R.P.M	φ14~φ400	φ100~φ380	82.4
36030-57	PS-7F	193	76	155	172	58	5	3-M10xP1.5	75	22	28	11	2000 R.P.M	φ4~φ180	φ56~φ170	12.1
36030-59	PS-9F	233	84	190	210	70	5.5	3-M12xP1.75	85	24	34.5	12	2000 R.P.M	φ5~φ220	φ62~φ210	19.4
36030-62	PS-12F	310	96	260	285	105	7	3-M12xP1.75	110	30	45	14	1800 R.P.M	φ10~φ300	φ86~φ290	38.1
36030-66	PS-16F	405	122	345	375	160	8	6-M14xP2.0	146	40	56	15	1800 R.P.M	φ14~φ400	φ100~φ380	82.4
