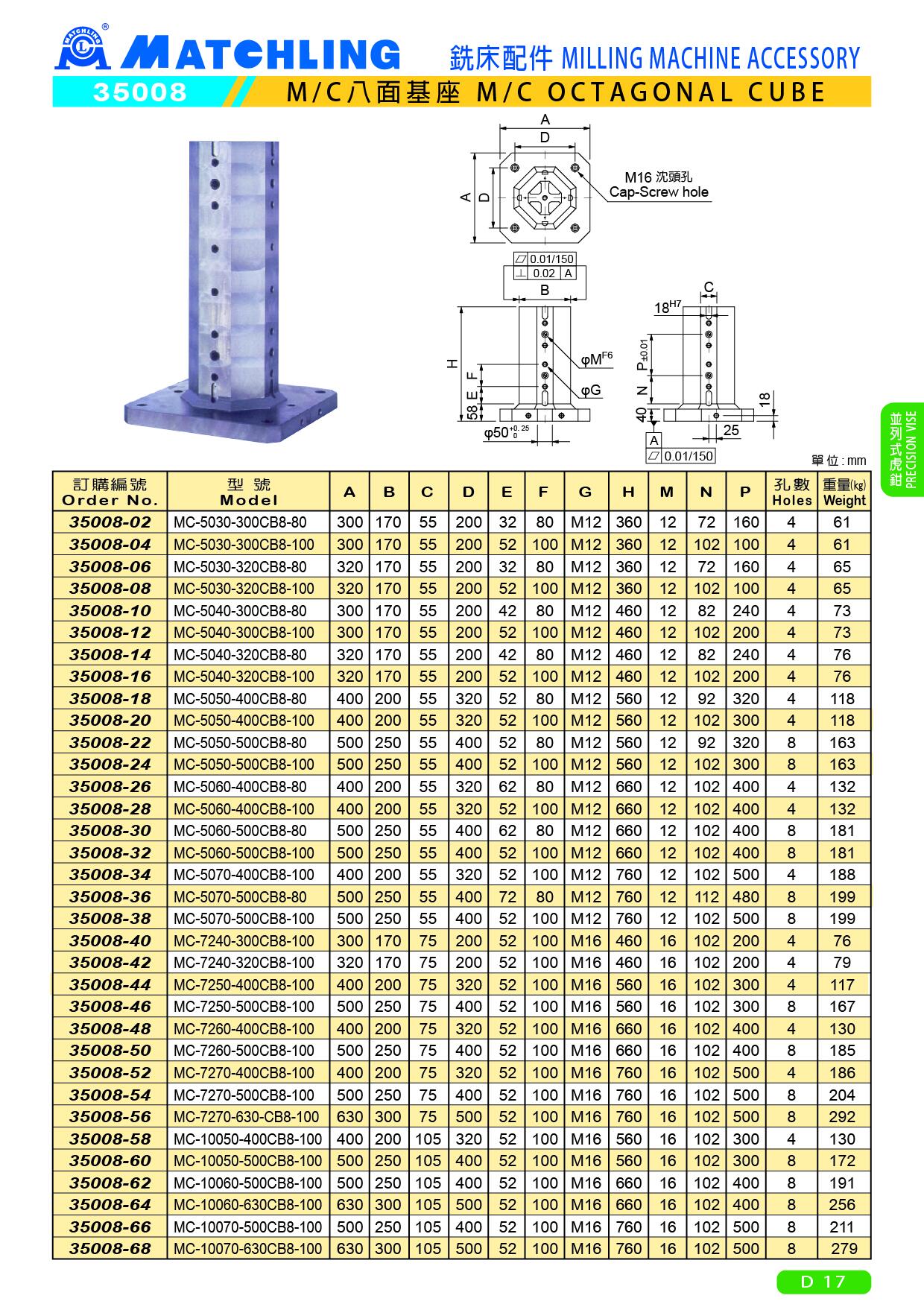

35008 M/C OCTAGONAL CUBE

Specifications

unit：mm

Order No.	Model	A	B	C	D	E	F	G	H	M	N	P	Holes	Weight (kg)
35008-02	MC-5030-300CB8-80	300	170	55	200	32	80	M12	360	12	72	160	4	61
35008-04	MC-5030-300CB8-100	300	170	55	200	52	100	M12	360	12	102	100	4	61
35008-06	MC-5030-320CB8-80	320	170	55	200	32	80	M12	360	12	72	160	4	65
35008-08	MC-5030-320CB8-100	320	170	55	200	52	100	M12	360	12	102	100	4	65
35008-10	MC-5040-300CB8-80	300	170	55	200	42	80	M12	460	12	82	240	4	73
35008-12	MC-5040-300CB8J 00	300	170	55	200	52	100	M12	460	12	102	200	4	73
35008-14	MC-5040-320CB8-80	320	170	55	200	42	80	M12	460	12	82	240	4	76
35008-16	MC-5040-320CB8-100	320	170	55	200	52	100	M12	460	12	102	200	4	76
35008-18	MC-5050-400CB8-80	400	200	55	320	52	80	M12	560	12	92	320	4	118
35008-20	MC-5050-400CB8-100	400	200	55	320	52	100	M12	560	12	102	300	4	118
35008-22	MC-5050-500CB8-80	500	250	55	400	52	80	M12	560	12	92	320	8	163
35008-24	MC-5050-500CB8-100	500	250	55	400	52	100	M12	560	12	102	300	8	163
35008-26	MC-5060-400CB8-80	400	200	55	320	62	80	M12	660	12	102	400	4	132
35008-28	MC-5060-400CB8-100	400	200	55	320	52	100	M12	660	12	102	400	4	132
35008-30	MC-5060-500CB8-80	500	250	55	400	62	80	M12	660	12	102	400	8	181
35008-32	MC-5060-500CB8-100	500	250	55	400	52	100	M12	660	12	102	400	8	181
35008-34	MC-5070-400CB8-100	400	200	55	320	52	100	M12	760	12	102	500	4	188
35008-36	MC-5070-500CB8-80	500	250	55	400	72	80	M12	760	12	112	480	8	199
35008-38	MC-5070-500CB8-100	500	250	55	400	52	100	M12	760	12	102	500	8	199
35008-40	MC-7240-300CB 8-100	300	170	75	200	52	100	M16	460	16	102	200	4	76
35008-42	MC-7240-320CB8-100	320	170	75	200	52	100	M16	460	16	102	200	4	79
35008-44	MC-7250-400CB&100	400	200	75	320	52	100	M16	560	16	102	300	4	117
35008-46	MC-7250-500CB8-100	500	250	75	400	52	100	M16	560	16	102	300	8	167
35008-48	MC-7260-400CB8-100	400	200	75	320	52	100	M16	660	16	102	400	4	130
35008-50	MC-7260-500CB8-100	500	250	75	400	52	100	M16	660	16	102	400	8	185
35008-52	MC-7270-400CB8-100	400	200	75	320	52	100	M16	760	16	102	500	4	186
35008-54	MC-7270-500CB8-100	500	250	75	400	52	100	M16	760	16	102	500	8	204
35008-56	MC-7270-630-CB8-100	630	300	75	500	52	100	M16	760	16	102	500	8	292
35008-58	MC-10050-400CB8-100	400	200	105	320	52	100	M16	560	16	102	300	4	130
35008-60	M010050-500CB8-100	500	250	105	400	52	100	M16	560	16	102	300	8	172
35008-62	MC-10060-500CB8-100	500	250	105	400	52	100	M16	660	16	102	400	8	191
35008-64	MC-10060-300CB8-100	630	300	105	500	52	100	M16	660	16	102	400	8	256
35008-66	MC-10070-500CB8-100	500	250	105	400	52	100	M16	760	16	102	500	8	211
35008-68	MC-10070-630CB8-100	630	300	105	500	52	100	M16	760	16	102	500	8	279
