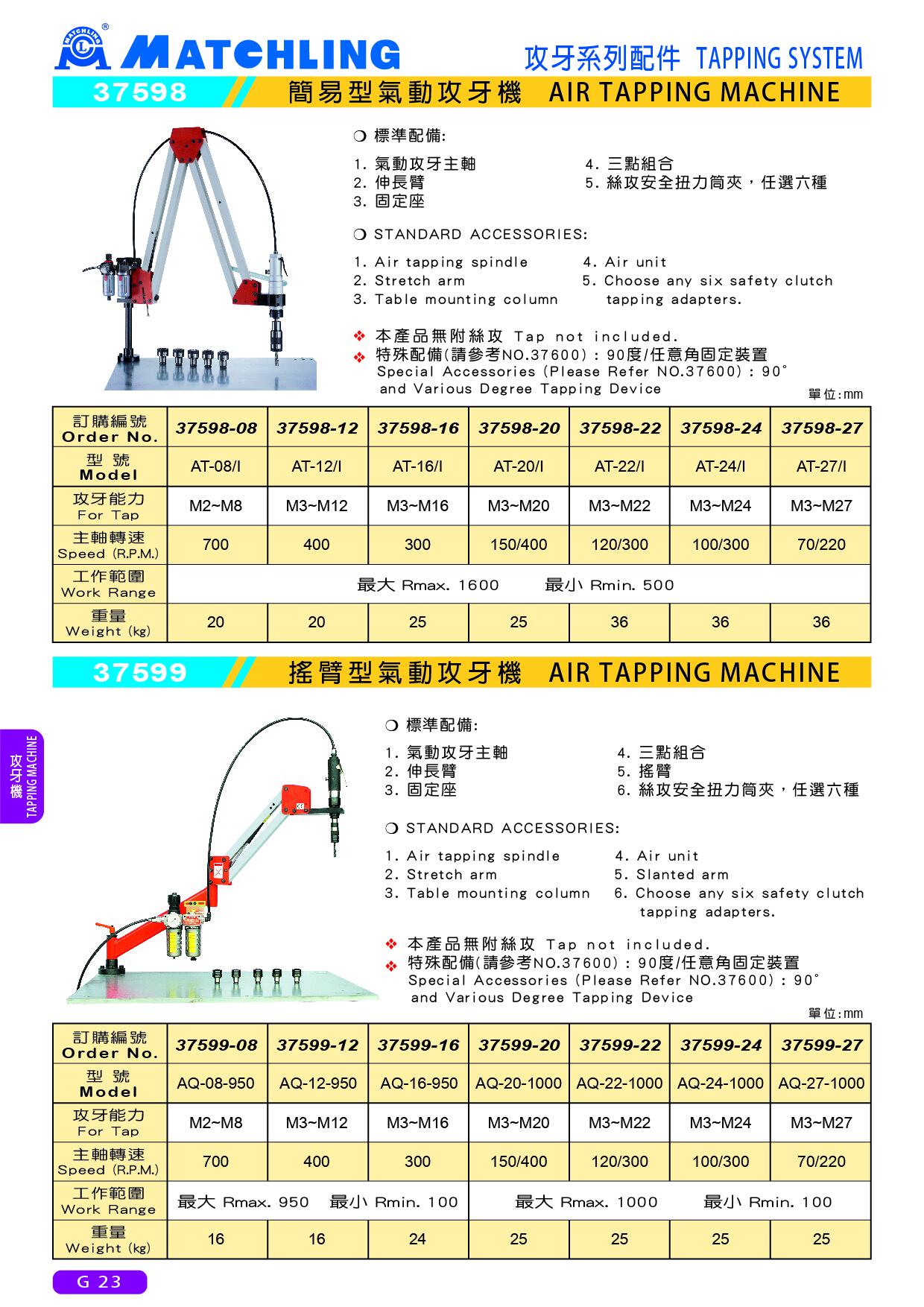

37598 AIR TAPPING MACHINE
● STANDARD ACCESSORIES:
1. Air tapping spindle
2. Stretch arm
3. Table mounting column
4. Air unit
5. Choose any six safety clutch tapping adapters.
● Tap not included.
unit：mm
| Order No. | 37598-08 | 37598-12 | 37598-16 | 37598-20 | 37598-22 | 37598-24 | 37598-27 |
| Model | AT-08/1 | AT-12/1 | AT-16/1 | AT-20/I | AT-22/I | AT-24/I | AT-27/I |
| For Tap | M2~M8 | M3~M12 | M3~M16 | M3~M20 | M3~M22 | M3~M24 | M3~M27 |
| Speed (R.P.M.) | 700 | 400 | 300 | 150/400 | 120/300 | 100/300 | 70/220 |
| Work Range | Rmax. 1600 Rmin.500 | ||||||
| Weight (kg) | 20 | 20 | 25 | 25 | 36 | 36 | 36 |
