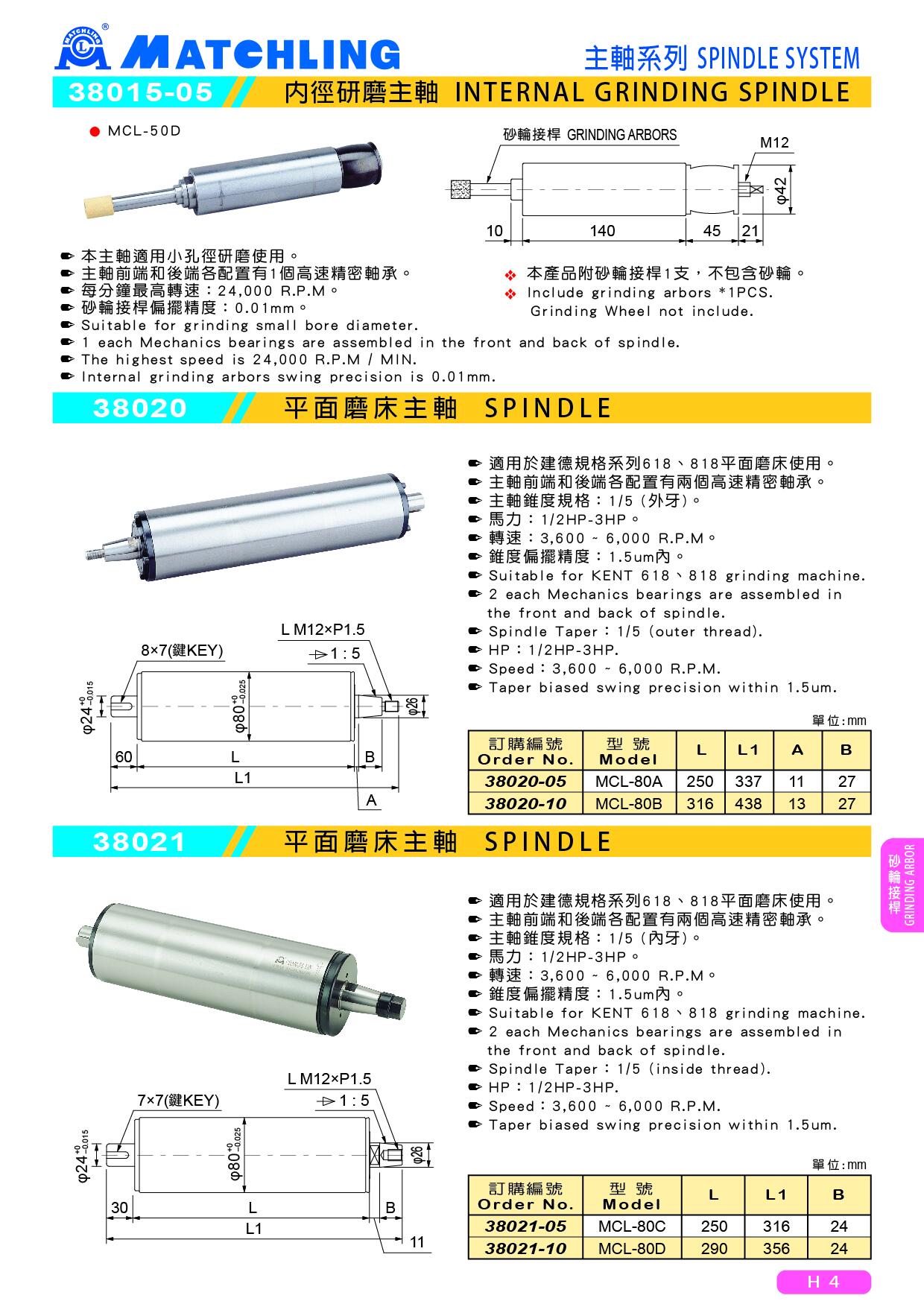

38020 SPINDLE
● Suitable for KENT 618、818 grinding machine.
● 2 each Mechanics bearings are assembled in the front and back of spindle.
● Spindle Taper：1/5 (outer thread).
● HP：1/2HP-3HP. 2 Speed：3,600 ~ 6,000 R.P.M.
● Taper biased swing precision within 1.5um.
unit：mm
| Order No. | Model | L | L1 | A | B |
| 38020-05 | MCL-80A | 250 | 337 | 11 | 27 |
| 38020-10 | MCL-80B | 316 | 438 | 13 | 27 |
