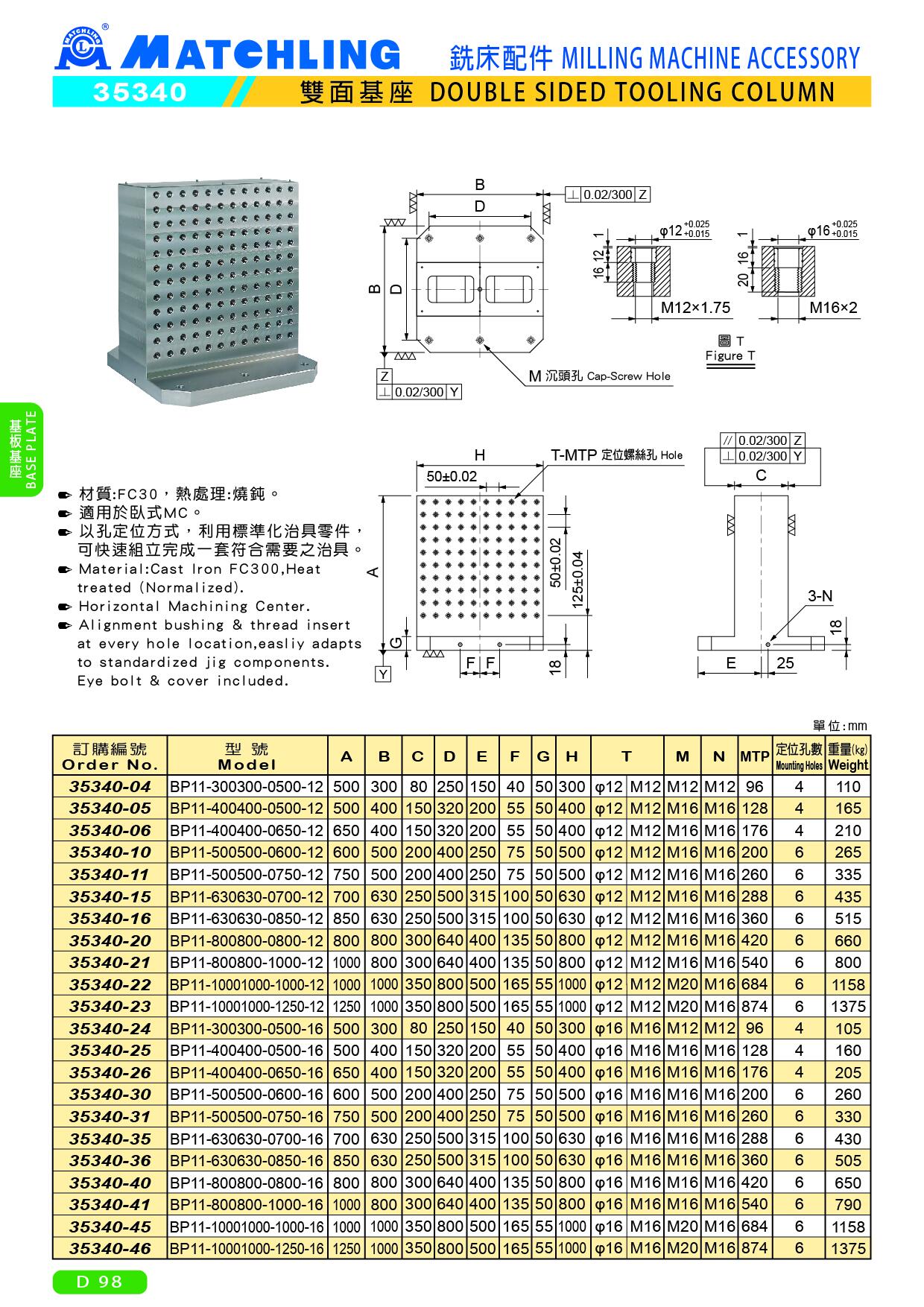

35340 DOUBLE SIDED TOOLING COLUMN
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components. Eye bolt & cover included.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | T | M | N | MTP | Mounting Holes | Weight (kg) | |
| 35340-04 | BP11-300300-0500-12 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | φ12 | M12 | M12 | M12 | 96 | 4 | 110 |
| 35340-05 | BP11-400400-0500-12 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | φ12 | M12 | M16 | M16 | 128 | 4 | 165 |
| 35340-06 | BP11-400400-0650-12 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | φ12 | M12 | M16 | M16 | 176 | 4 | 210 |
| 35340-10 | BP11-500500-0600-12 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | φ12 | M12 | M16 | M16 | 200 | 6 | 265 |
| 35340-11 | BP11-500500-0750-12 | 750 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | φ12 | M12 | M16 | M16 | 260 | 6 | 335 |
| 35340-15 | BP11-630630-0700-12 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | φ12 | M12 | M16 | M16 | 288 | 6 | 435 |
| 35340-16 | BP11-630630-0850-12 | 850 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | φ12 | M12 | M16 | M16 | 360 | 6 | 515 |
| 35340-20 | BP11-800800-0800-12 | 800 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | φ12 | M12 | M16 | M16 | 420 | 6 | 660 |
| 35340-21 | BP11-800800-1000-12 | 1000 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | φ12 | M12 | M16 | M16 | 540 | 6 | 800 |
| 35340-22 | BP11-10001000-1000-12 | 1000 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | φ12 | M12 | M20 | M16 | 684 | 6 | 1158 |
| 35340-23 | BP11-10001000-1250-12 | 1250 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | φ12 | M12 | M20 | M16 | 874 | 6 | 1375 |
| 35340-24 | BP11-300300-0500-16 | 500 | 300 | 80 | 250 | 150 | 40 | 50 | 300 | φ16 | M16 | M12 | M12 | 96 | 4 | 105 |
| 35340-25 | BP11-400400-0500-16 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | φ16 | M16 | M16 | M16 | 128 | 4 | 160 |
| 35340-26 | BP11-400400-0650-16 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | φ16 | M16 | M16 | M16 | 176 | 4 | 205 |
| 35340-30 | BP11-500500-0600-16 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | φ16 | M16 | M16 | M16 | 200 | 6 | 260 |
| 35340-31 | BP11-500500-0750-16 | 750 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | φ16 | M16 | M16 | M16 | 260 | 6 | 330 |
| 35340-35 | BP11-630630-0700-16 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | φ16 | M16 | M16 | M16 | 288 | 6 | 430 |
| 35340-36 | BP11-630630-0850-16 | 850 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | φ16 | M16 | M16 | M16 | 360 | 6 | 505 |
| 35340-40 | BP11-800800-0800-16 | 800 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | φ16 | M16 | M16 | M16 | 420 | 6 | 650 |
| 35340-41 | BP11-800800-1000-16 | 1000 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | φ16 | M16 | M16 | M16 | 540 | 6 | 790 |
| 35340-45 | BP11-10001000-1000-16 | 1000 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | φ16 | M16 | M20 | M16 | 684 | 6 | 1158 |
| 35340-46 | BP11-10001000-1250-16 | 1250 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | φ16 | M16 | M20 | M16 | 874 | 6 | 1375 |
