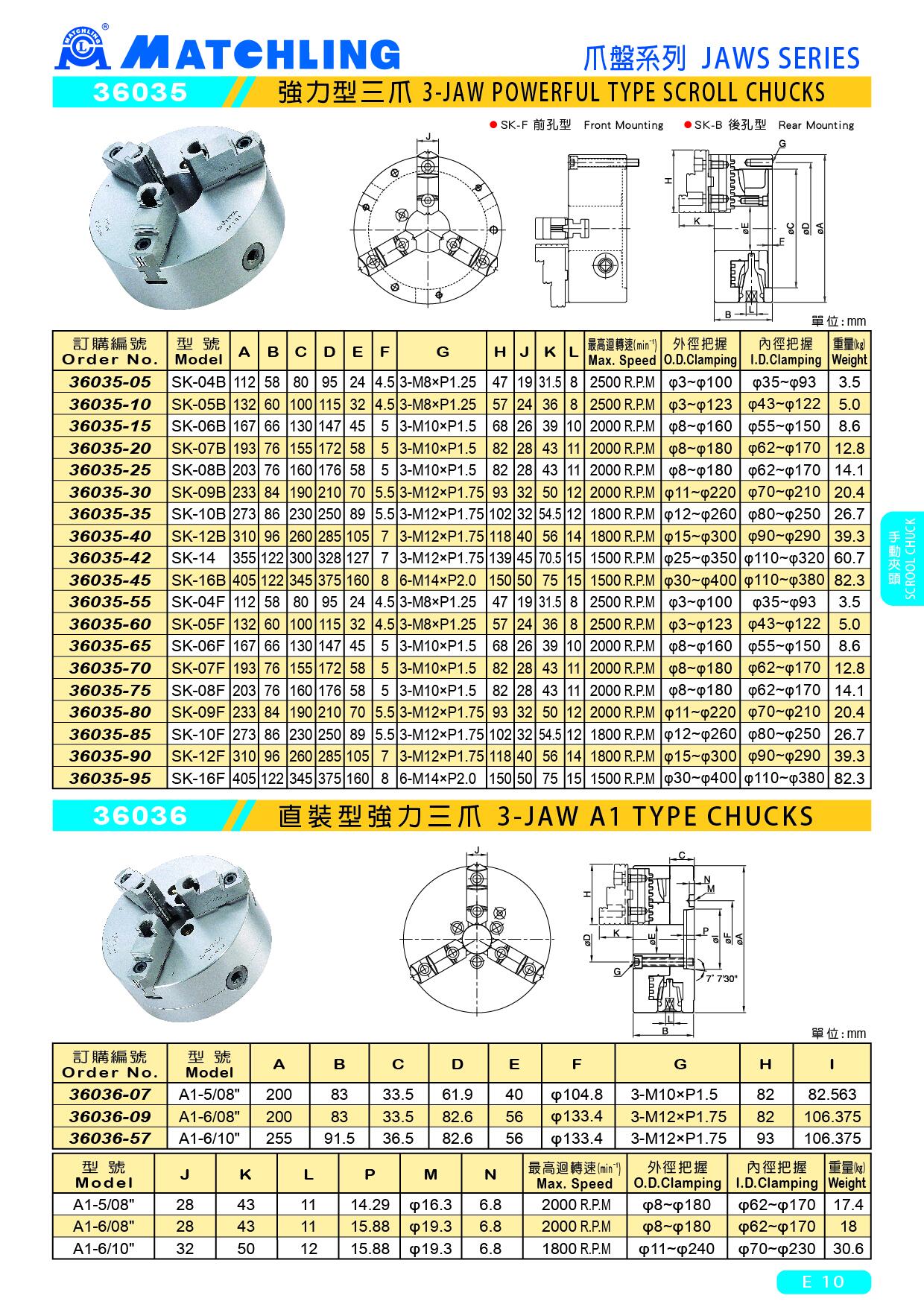

36035 3-JAW POWERFUL TYPE SCROLL CHUCKS
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | Max. Speed (min-1) | O.D.CIamping | I.D.CIamping | Weight (kg) |
| 36035-05 | SK-04 | 112 | 58 | 80 | 95 | 24 | 4.5 | 3-M8xP1.25 | 47 | 19 | 31.5 | 8 | 2500 R.P.M | φ3~φ100 | φ35~φ93 | 3.5 |
| 36035-10 | SK-05 | 132 | 60 | 100 | 115 | 32 | 4.5 | 3-M8xP1.25 | 57 | 24 | 36 | 8 | 2500 R.P.M | φ3~φ123 | φ43~φ122 | 5 |
| 36035-15 | SK-06B | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10xP1.5 | 68 | 26 | 39 | 10 | 2000 R.P.M | φ8~φ160 | φ55~φ150 | 8.6 |
| 36035-20 | SK-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 82 | 28 | 43 | 11 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | 12.8 |
| 36035-25 | SK-08B | 203 | 76 | 160 | 76 | 58 | 5 | 3-M10xP1.5 | 82 | 28 | 43 | 11 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | 14.1 |
| 36035-30 | SK-09 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 93 | 32 | 50 | 12 | 2000 R.P.M | φ11~φ220 | φ70~φ210 | 20.4 |
| 36035-35 | SK-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12xP1.75 | 102 | 32 | 54.5 | 12 | 1800 R.P.M | φ12~φ260 | φ80~φ250 | 26.7 |
| 36035-40 | SK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12xP1.75 | 118 | 40 | 56 | 14 | 1800 R.P.M | φ15~φ300 | φ90~φ290 | 39.3 |
| 36035-42 | SK-14 | 355 | 122 | 300 | 328 | 127 | 7 | 3-M12xP1.75 | 139 | 45 | 70.5 | 15 | 1500 R.P.M | φ25~φ350 | φ110~φ320 | 60.7 |
| 36035-45 | SK-16 | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14xP2.0 | 150 | 50 | 75 | 15 | 1500 R.P.M | φ30~φ400 | φ110~φ380 | 82.3 |
| 36035-65 | SK-06F | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10xP1.5 | 68 | 26 | 39 | 10 | 2000 R.P.M | φ8~φ160 | φ55~φ150 | 8.6 |
| 36035-75 | SK-08F | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10xP1.5 | 82 | 28 | 43 | 11 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | 14.1 |
