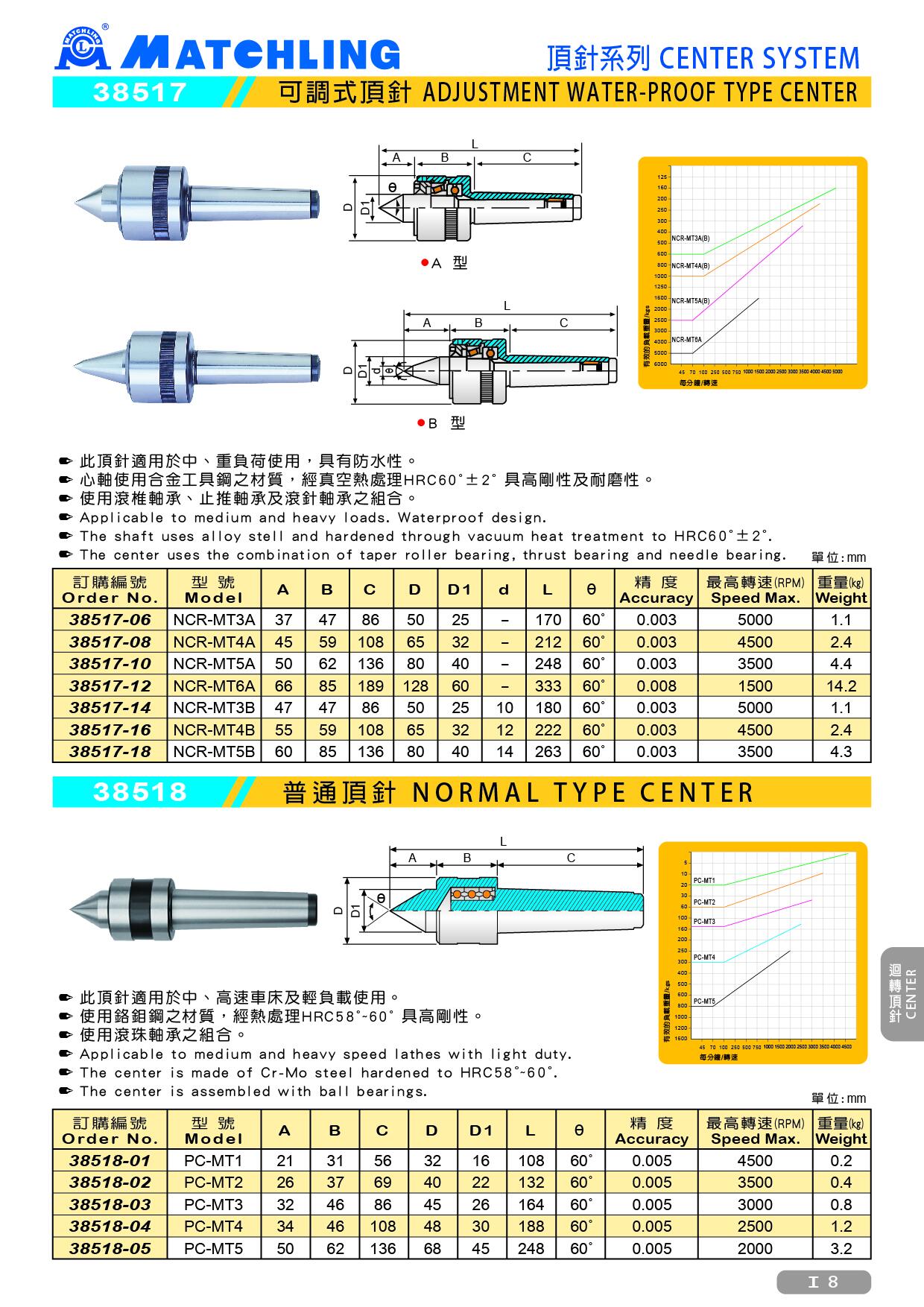

38518 NORMAL TYPE CENTER
● Applicable to medium and heavy speed lathes with light duty.
● The center is made of Cr-Mo steel hardened to HRC58˚~60˚.
● The center is assembled with ball bearings.
unit：mm
| Order No. | Model | A | B | C | D | D1 | L | θ | Accuracy | Speed Max. (RPM) | Weight (kg) |
| 38518-01 | PC-MT1 | 21 | 31 | 56 | 32 | 16 | 108 | 60° | 0.005 | 4500 | 0.2 |
| 38518-02 | PC-MT2 | 26 | 37 | 69 | 40 | 22 | 132 | 60° | 0.005 | 3500 | 0.4 |
| 38518-03 | PC-MT3 | 32 | 46 | 86 | 45 | 26 | 164 | 60° | 0.005 | 3000 | 0.8 |
| 38518-04 | PC-MT4 | 34 | 46 | 108 | 48 | 30 | 188 | 60° | 0.005 | 2500 | 1.2 |
| 38518-05 | PC-MT5 | 50 | 62 | 136 | 68 | 45 | 248 | 60° | 0.005 | 2000 | 3.2 |
