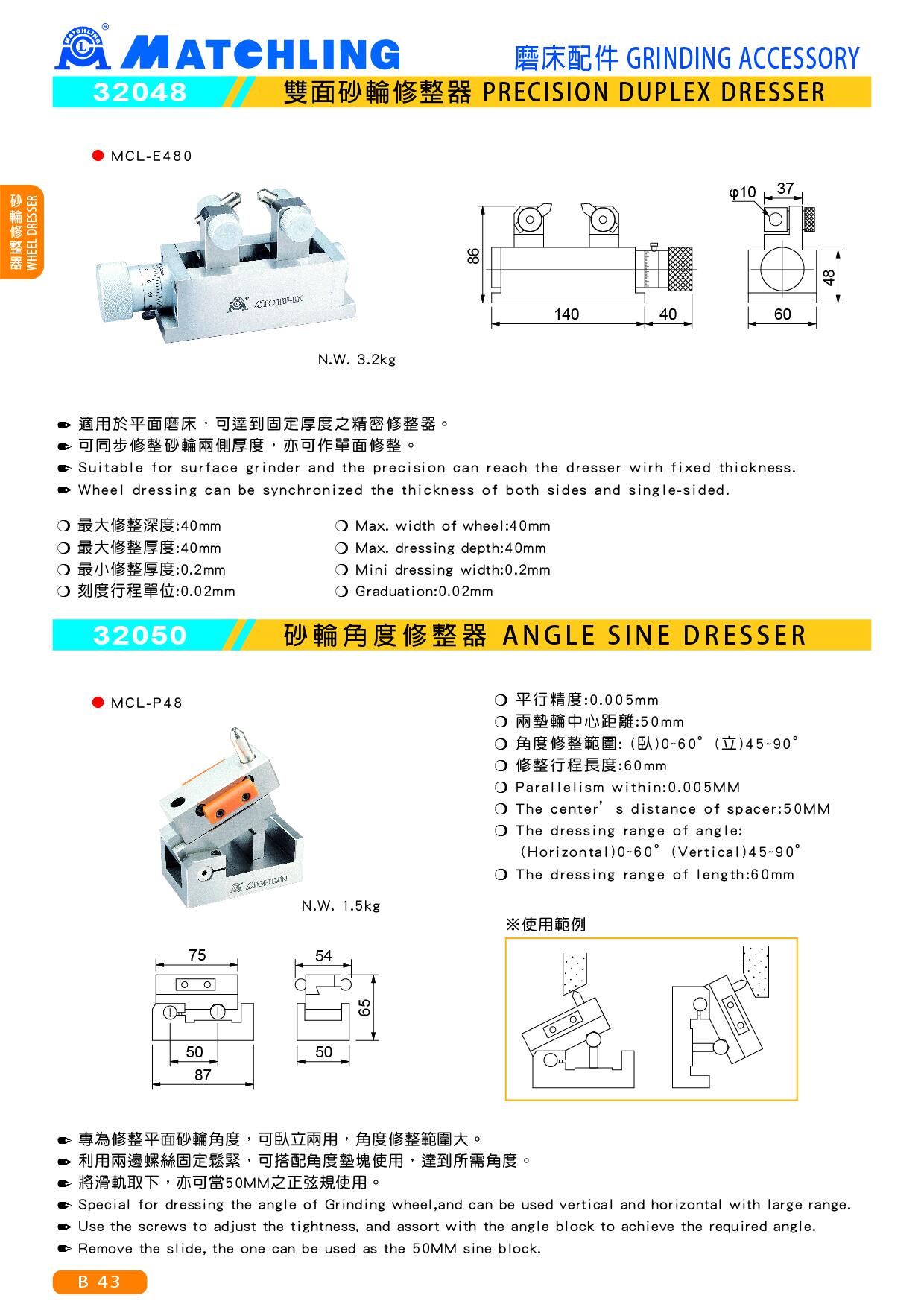

32050 Angle Sine Dresser

● Special for dressing the angle of Grinding wheel,and can be used vertical and horizontal with large range.
● Use the screws to adjust the tightness, and assort with the angle block to achieve the required angle.
● Remove the slide, the one can be used as the 50MM sine block.

■ Specifications:
● Parallelism within:0.005MM
● The center’s distance of spacer:50MM
● The dressing range of angle:   (Horizontal)0~60°(Vertical)45~90°
● The dressing range of length:60mm
● Weight:1.5kg

■ Accessory:
1. Diamond pen--- 1 piece
