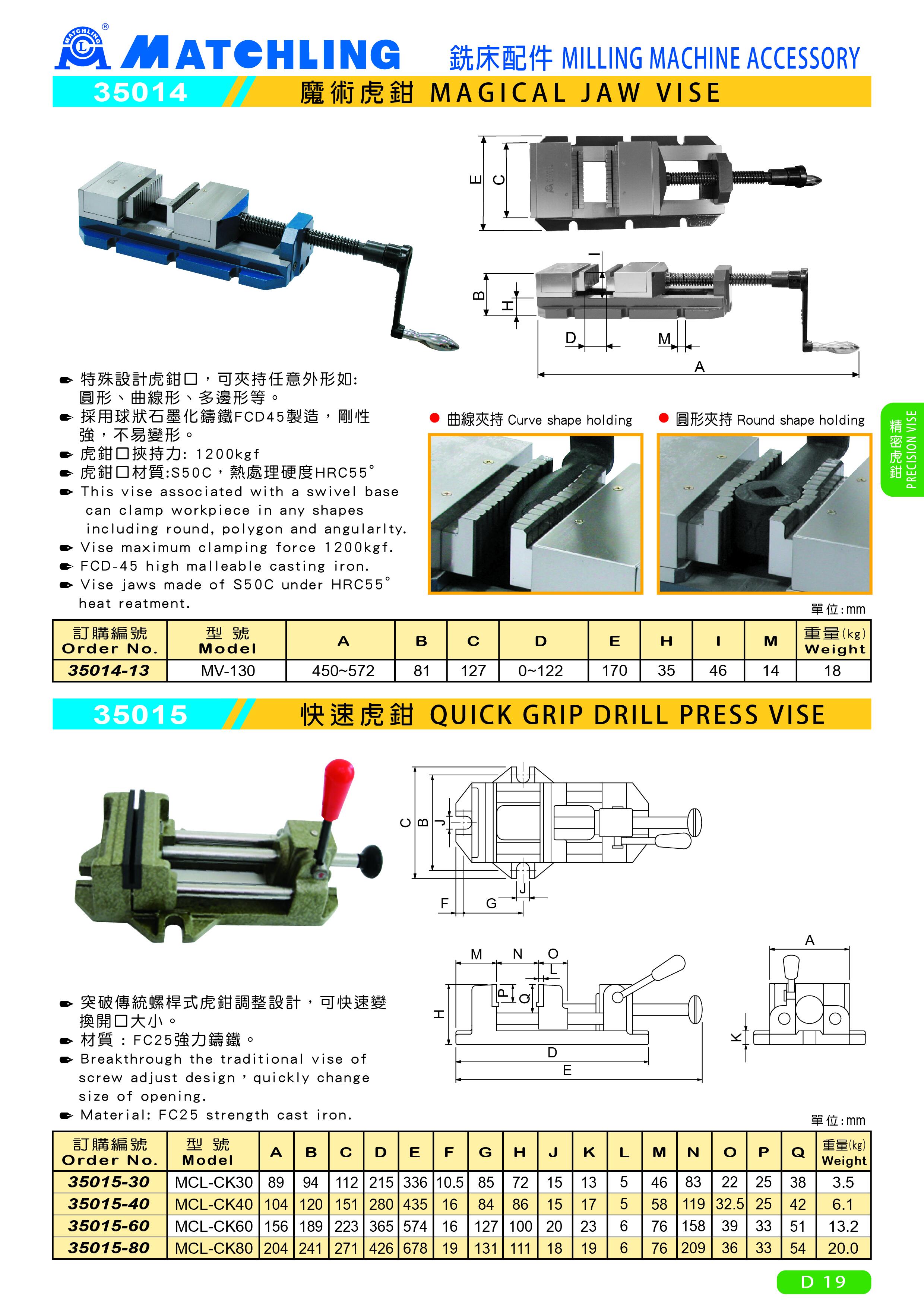

35014 MAGICAL JAW VISE
● This vise associated with a swivel base can clamp workpiece in any shapes including round, polygon and angularlty.
● Vise maximum clamping force 1200kgf.
● FCD-45 high malleable casting iron.
● Vise jaws made of S50C under HRC55°heat reatment.
unit：mm
| Order No. | Model | A | B | C | D | E | H | I | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35014-13 | MV-130 | 450-572 | 81 | 127 | 0-122 | 170 | 35 | 46 | 14 | 18 |
