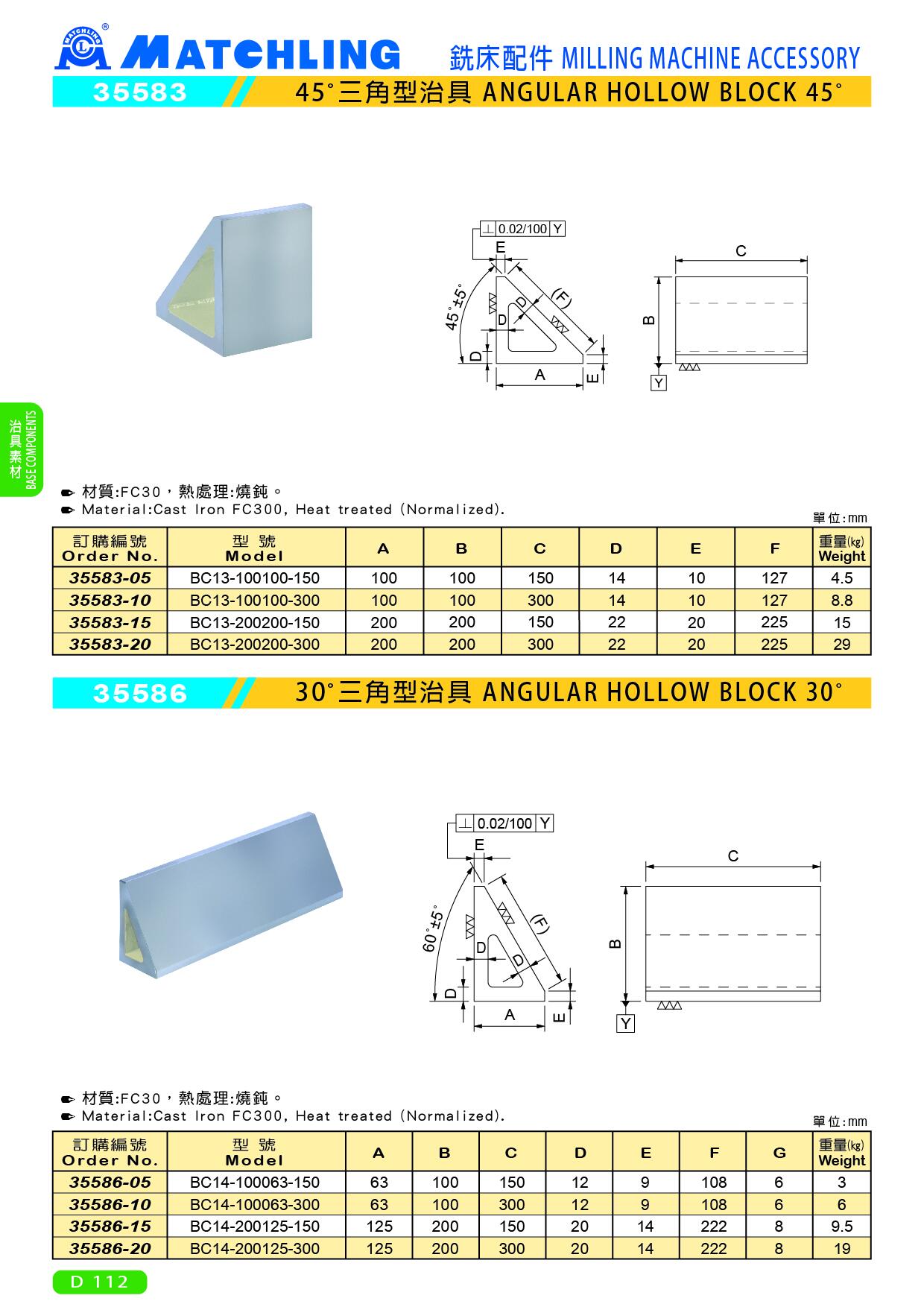

35583 ANGULAR HOLLOW BLOCK 45˚
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | E | F | Weight (kg) |
| 35583-05 | BC13-100100-150 | 100 | 100 | 150 | 14 | 10 | 127 | 4.5 |
| 35583-10 | BC13-100100-300 | 100 | 100 | 300 | 14 | 10 | 127 | 8.8 |
| 35583-15 | BC13-200200-150 | 200 | 200 | 150 | 22 | 20 | 225 | 15 |
| 35583-20 | BC13-200200-300 | 200 | 200 | 300 | 22 | 20 | 225 | 29 |
