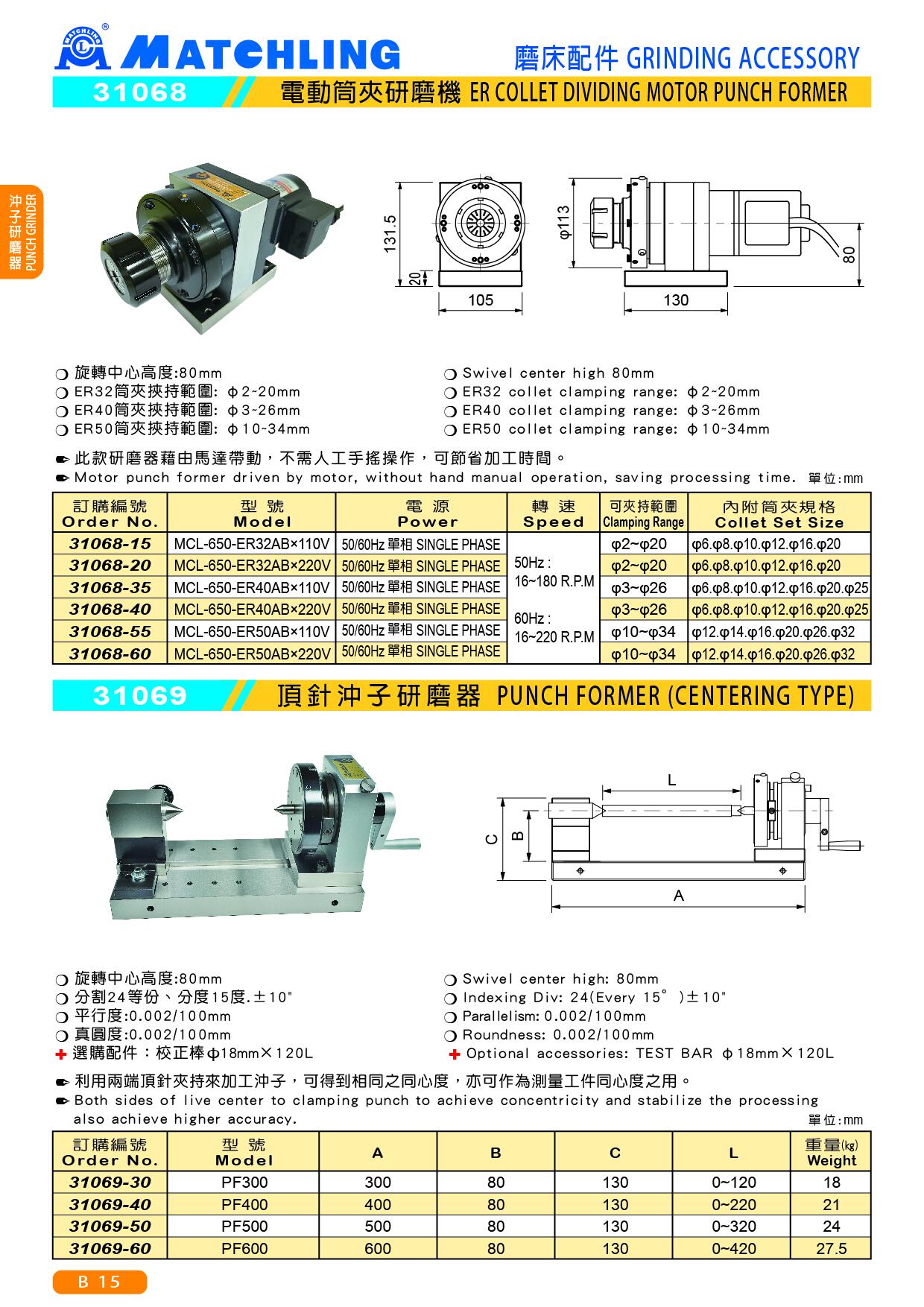

31069 PUNCH FORMER (CENTERING TYPE)
● Both sides of live center to clamping punch to achieve concentricity and stabilize the processing also achieve higher accuracy.
■ Specifications:
● Swivel center high: 80mm
● Indexing Div: 24(Every 15°)±10"
● Parallelism: 0.002/100mm
● Roundness: 0.002/100mm
✚ Optional accessories: TEST BAR φ18mm×120L
unit：mm
| Order No. | Model | A | B | C | L | Weight(kg) |
| 31069-30 | PF300 | 300 | 80 | 130 | 0 ~ 120 | 18 |
| 31069-40 | PF400 | 400 | 80 | 130 | 0 ~ 220 | 21 |
| 31069-50 | PF500 | 500 | 80 | 130 | 0 ~ 320 | 24 |
| 31069-60 | PF600 | 600 | 80 | 130 | 0 ~ 420 | 27.5 |
