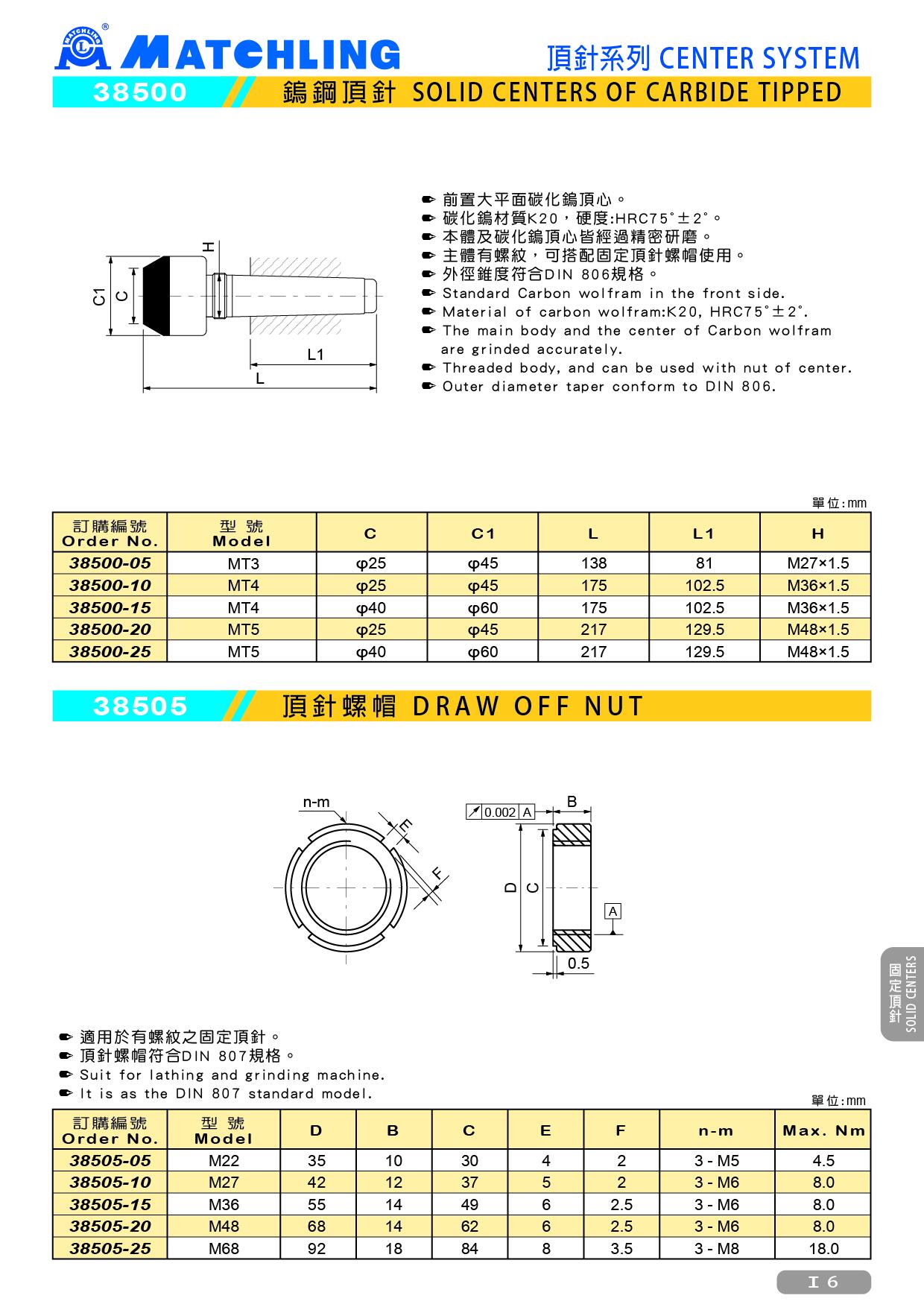

38505 DRAW OFF NUT
● Suit for lathing and grinding machine.
● It is as the DIN 807 standard model.
unit：mm
| Order No. | Model | D | B | C | E | F | n-m | Max. Nm |
| 38505-05 | M22 | 35 | 10 | 30 | 4 | 2 | 3-M5 | 4.5 |
| 38505-10 | M27 | 42 | 12 | 37 | 5 | 2 | 3-M6 | 8.0 |
| 38505-15 | M36 | 55 | 14 | 49 | 6 | 2.5 | 3-M6 | 8.0 |
| 38505-20 | M48 | 68 | 14 | 62 | 6 | 2.5 | 3-M6 | 8.0 |
| 38505-25 | M68 | 92 | 18 | 84 | 8 | 3.5 | 3-M8 | 18.0 |
