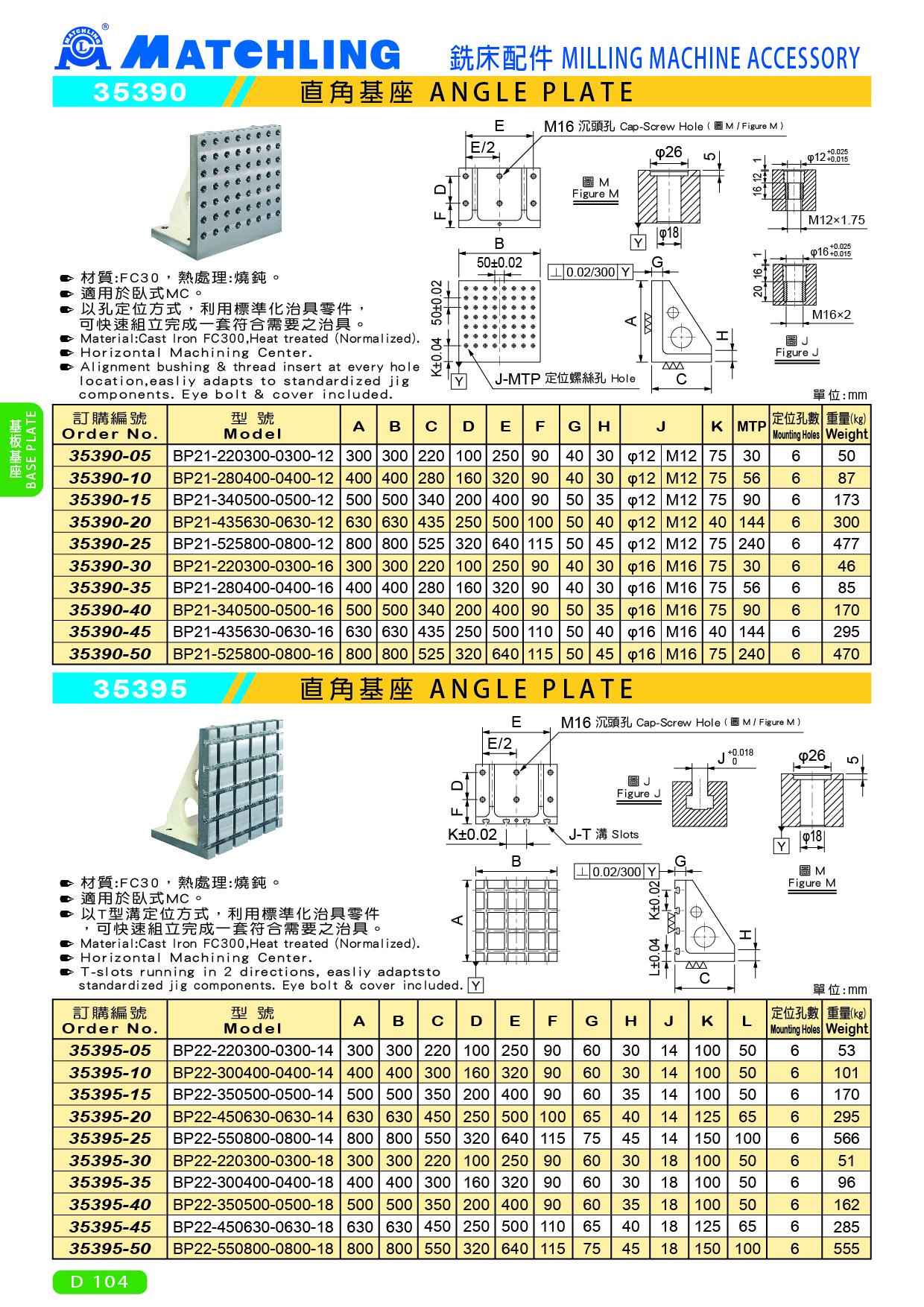

35390 ANGLE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Alignment bushing & thread insert at every holelocation ,easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | MTP | Mounting Holes | Weight (kg) | |
| 35390-05 | BP21-220300-0300-12 | 300 | 300 | 220 | 100 | 250 | 90 | 40 | 30 | φ12 | M12 | 75 | 30 | 6 | 50 |
| 35390-10 | BP21-280400-0400-12 | 400 | 400 | 280 | 160 | 320 | 90 | 40 | 30 | φ12 | M12 | 75 | 56 | 6 | 87 |
| 35390-15 | BP21-340500-0500-12 | 500 | 500 | 340 | 200 | 400 | 90 | 50 | 35 | φ12 | M12 | 75 | 90 | 6 | 173 |
| 35390-20 | BP21-435630-0630-12 | 630 | 630 | 435 | 250 | 500 | 100 | 50 | 40 | φ12 | M12 | 40 | 144 | 6 | 300 |
| 35390-25 | BP21-525800-0800-12 | 800 | 800 | 525 | 320 | 640 | 115 | 50 | 45 | φ12 | M12 | 75 | 240 | 6 | 477 |
