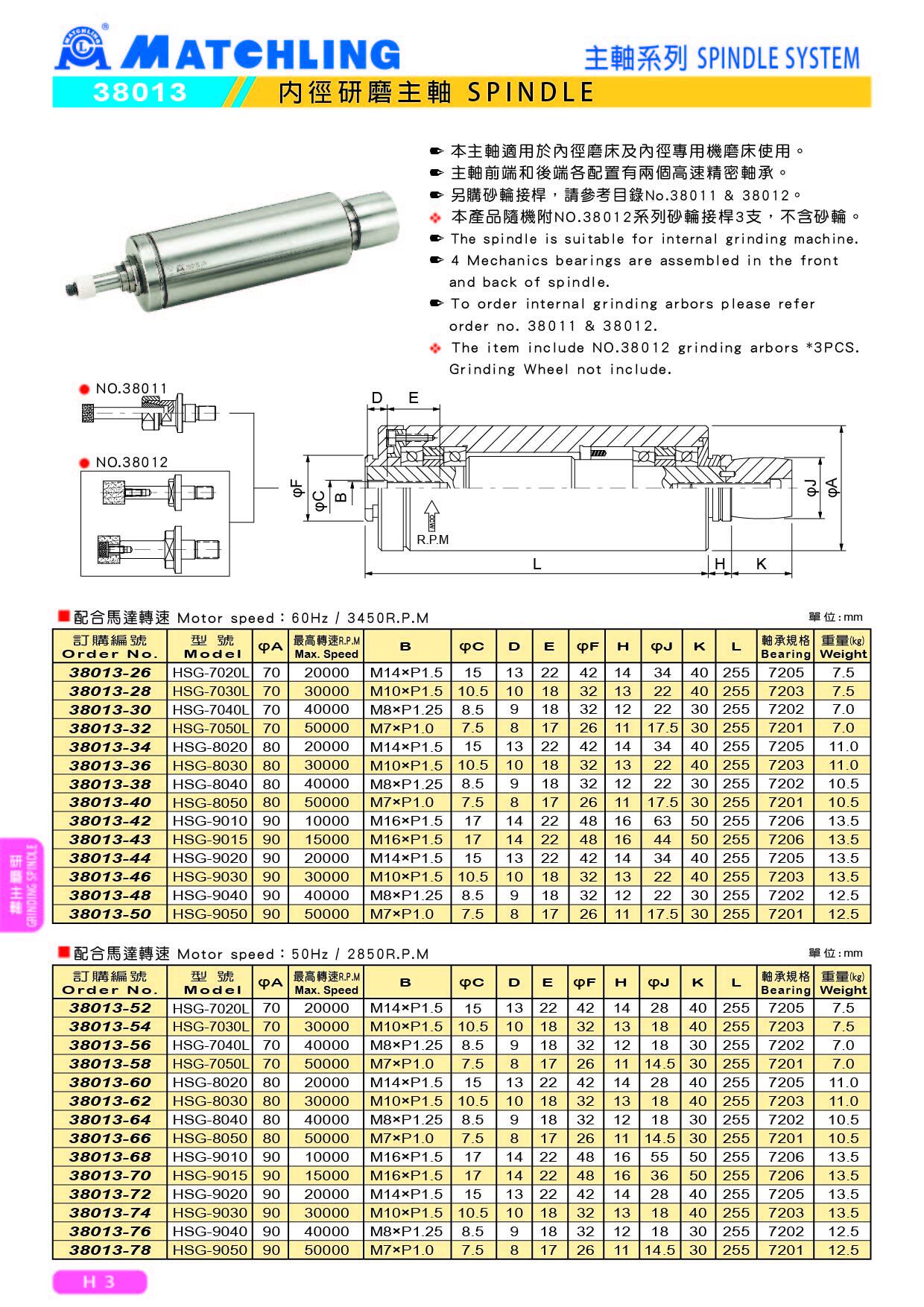

38013 SPINDLE

Description
Specifications

● The spindle is suitable for internal grinding machine.
● 4 Mechanics bearings are assembled in the front and back of spindle.
● To order internal grinding arbors please refer order no. 38011 & 38012.
● The item include NO.38012 grinding arbors *3.

** Motor speed：60Hz / 3450R.P.M unit:mm

Order No.	Model	φA	Max. Speed R.P.M	B	φC	D	E	φF	H	φJ	K	L	Bearing	Weight (kg)
38013-26	HSG-7020L	70	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	7.5
38013-28	HSG-7030L	70	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	7.5
38013-30	HSG-7040L	70	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	7
38013-32	HSG-7050L	70	50000	M7*P1.0	7.5	8	17	26	11	30	255	255	7201	7
38013-34	HSG-8020	80	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	11
38013-36	HSG-8030	80	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	10.5
38013-38	HSG-8040	80	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	10.5
38013-40	HSG-8050	80	50000	M7*P1.0	7.5	8	17	26	11	30	255	255	7201	10
38013-42	HSG-9010	90	10000	M16*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-44	HSG-9015	90	15000	M16*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-46	HSG-9020	90	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-43	HSG-9030	90	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	13.5
38013-48	HSG-9040	90	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	12.5
38013-50	HSG-9050	90	50000	M7*P1.0	7.5	8	17	26	11	17.5	30	255	7201	12.5

** Motor speed：50Hz / 2850R.P.M unit:mm

Order No.	Model	φA	Max. Speed R.P.M	B	φC	D	E	φF	H	φJ	K	L	Bearing	Weight (kg)
38013-52	HSG-7020L	70	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	7.5
38013-54	HSG-7030L	70	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	7.5
38013-56	HSG-7040L	70	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	7
38013-58	HSG-7050L	70	50000	M7*P1.0	7.5	8	17	26	11	14.5	30	255	7201	7
38013-60	HSG-8020	80	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	11
38013-62	HSG-8030	80	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	10.5
38013-64	HSG-8040	80	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	10.5
38013-66	HSG-8050	80	50000	M7*P1.0	7.5	8	17	26	11	14.5	30	255	7201	10
38013-68	HSG-9010	90	10000	M16*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-70	HSG-9015	90	15000	M16*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-72	HSG-9020	90	20000	M14*P1.5	15	13	22	42	14	34	255	255	7205	13.5
38013-74	HSG-9030	90	30000	M10*P1.5	10.5	15	20	42	12	34	255	255	7203	13.5
38013-76	HSG-9040	90	40000	M8*P1.25	8.5	9	18	42	11	32	255	255	7202	12.5
38013-78	HSG-9050	90	50000	M7*P1.0	7.5	8	17	26	11	14.5	30	255	7201	12.5
