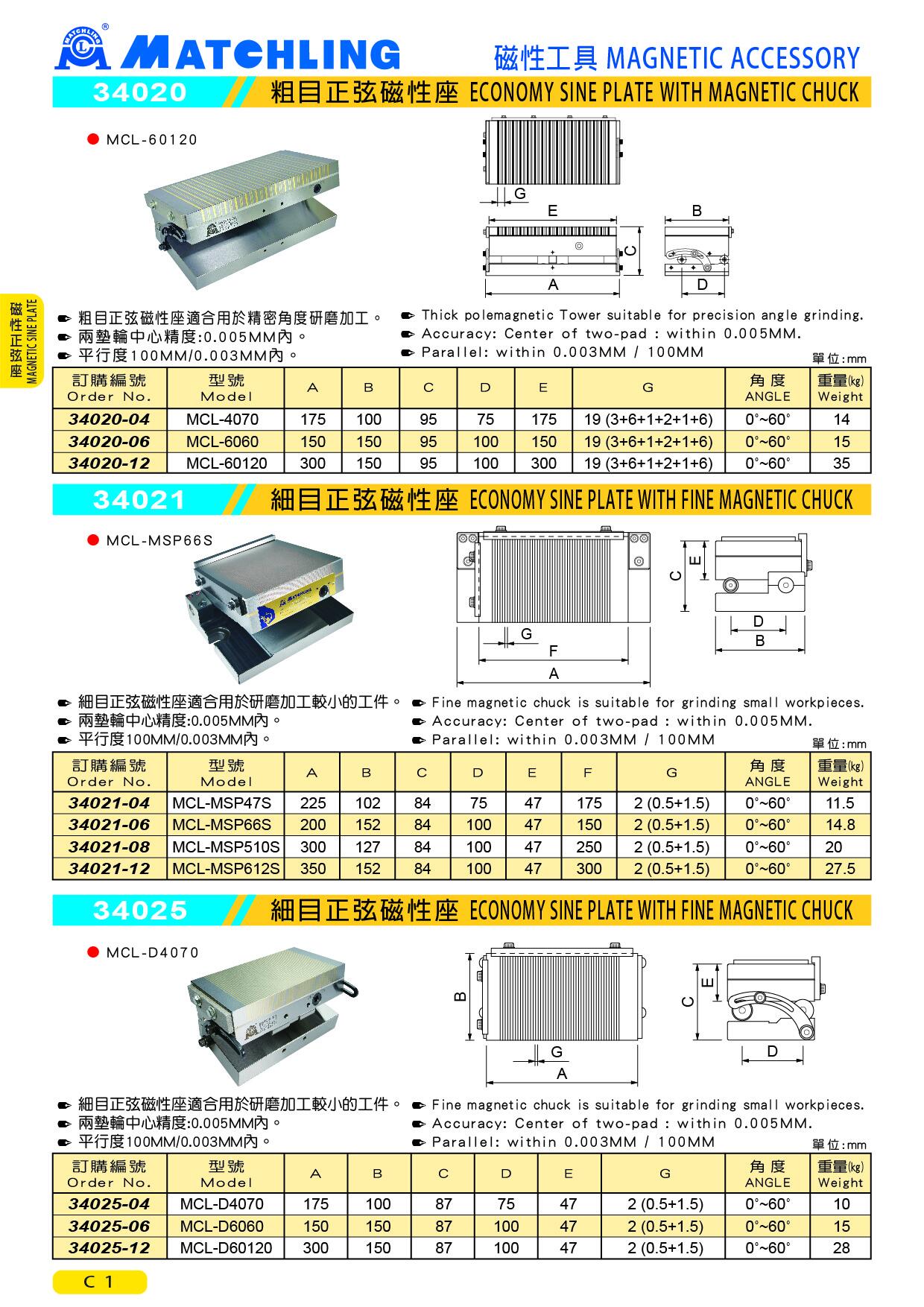

34025 ECONOMY SINE PLATE WITH FINE MAGNETIC CHUCK
● Fine magnetic chuck is suitable for grinding small workpieces.
● Accuracy: Center of two-pad : within 0.005MM.
● Parallel: within 0.003MM / 100MM
unit：mm
| Order No. | Model | A | B | C | D | E | G | ANGLE | Weight (kg) |
| 34025-04 | MCL-D4070 | 175 | 100 | 87 | 75 | 47 | 2 (0.5+1.5) | 0°~60° | 10 |
| 34025-06 | MCL-D6060 | 150 | 150 | 87 | 100 | 47 | 2 (0.5+1.5) | 0°~60° | 15 |
| 34025-12 | MCL-D60120 | 300 | 150 | 87 | 100 | 47 | 2 (0.5+1.5) | 0°~60° | 28 |
