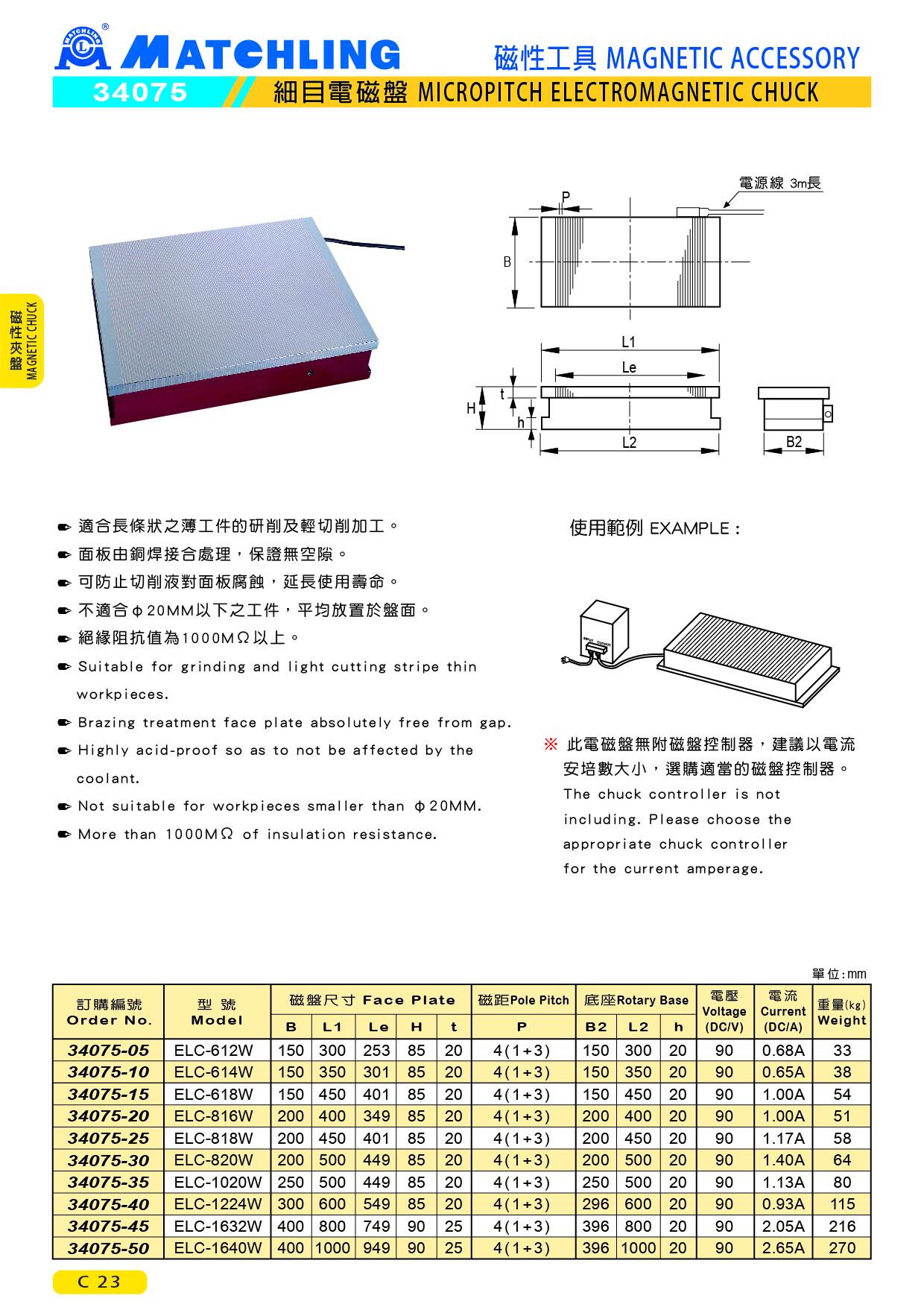

34075 Micropitch Electromagnetic Chuck
● Suitable for grinding and light cutting stripe thin workpieces.
● Brazing treatment face plate absolutely free from gap.
● Highly acid-proof so as to not be affected by the coolant.
● Not suitable for workpieces smaller than 20мм.
● More than 1000ΜΩ of insulation resistance.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Voltage (DC/V) | Current (DC/A) | Weight (kg) | ||||||
| B | L1 | Le | H | t | P | B2 | L2 | h | |||||
| 34075-05 | ELC-612W | 150 | 300 | 253 | 85 | 20 | 4(1+3) | 150 | 300 | 20 | 90 | 0.68A | 33 |
| 34075-10 | ELC-614W | 150 | 350 | 301 | 85 | 20 | 4(1+3) | 150 | 350 | 20 | 90 | 0.65A | 38 |
| 34075-15 | ELC-618W | 150 | 450 | 401 | 85 | 20 | 4(1+3) | 150 | 450 | 20 | 90 | 1.00A | 54 |
| 34075-20 | ELC-816W | 200 | 400 | 349 | 85 | 20 | 4(1+3) | 200 | 400 | 20 | 90 | 1.00A | 51 |
| 34075-25 | ELC-818W | 200 | 450 | 401 | 85 | 20 | 4(1+3) | 200 | 450 | 20 | 90 | 1.17A | 58 |
| 34075-30 | ELC-820W | 200 | 500 | 449 | 85 | 20 | 4(1+3) | 200 | 500 | 20 | 90 | 1.40A | 64 |
| 34075-35 | ELC-1020W | 250 | 500 | 449 | 85 | 20 | 4(1+3) | 250 | 500 | 20 | 90 | 1.13A | 80 |
| 34075-40 | ELC-1224W | 300 | 600 | 549 | 85 | 20 | 4(1+3) | 296 | 600 | 20 | 90 | 0.93A | 115 |
| 34075-45 | ELC-1632W | 400 | 8000 | 749 | 90 | 25 | 4(1+3) | 396 | 800 | 20 | 90 | 2.05A | 216 |
| 34075-50 | ELC-1640W | 400 | 1000 | 949 | 90 | 25 | 4(1+3) | 396 | 1000 | 20 | 90 | 2.65A | 270 |
